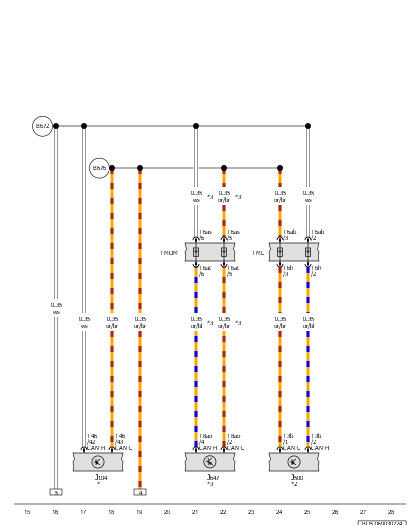

Abs Control Module, Power Steering Control Module, Differential Locks Control Module
J104
ABS Control Module
J500
Power Steering Control Module
J647
Differential Locks Control Module
T3b
3-Pin Connector, Black
T6ab
6-Pin Connector, Black
T6as
6-Pin Connector, Gray
T6at
6-Pin Connector, Gray
T6h
6-Pin Connector, Black
T8ao
8-Pin Connector, Black
T46
46-Pin Connector, Black
TML
Coupling Point in Engine/Motor Compartment, Left
TMOM
Coupling Point on Engine, Top Center
B672
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Brake System Wiring Diagram
*2
For Vehicles with Separate Data Bus On Board Diagnostic Interface
*3
For Vehicles with Front Differential Lock
