Tune-Up - 4 CYL: Distributor

All models are equipped with Breakerless Electronic Ignition System and no adjustments are required.

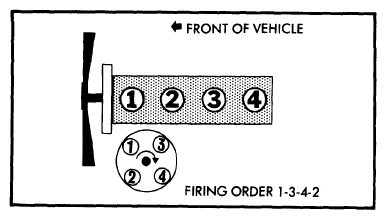

Fig 1: Firing Order and Distributor Rotation

Courtesy of VOLVO CARS CORPORATION
