Evaporative Emissions System: Maintenance

Foam plastic filter in bottom of carbon canister should be replaced every 60, 000 miles.

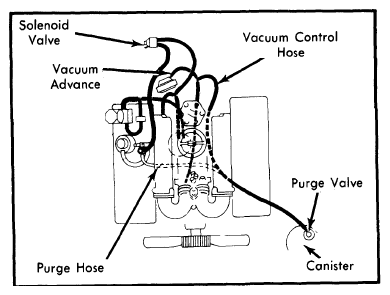

Fig 1: 4 Cylinder Models Fuel Evaporation System (From Carbon Canister to Engine)

Courtesy of VOLVO CARS CORPORATION

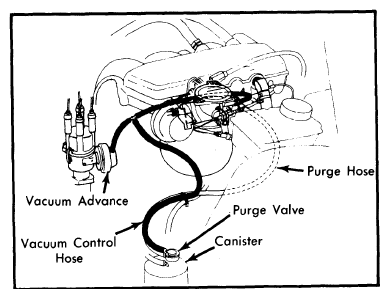

Fig 2: 6 Cylinder Models Fuel Evaporation System (From Carbon Canister to Engine)

Courtesy of VOLVO CARS CORPORATION

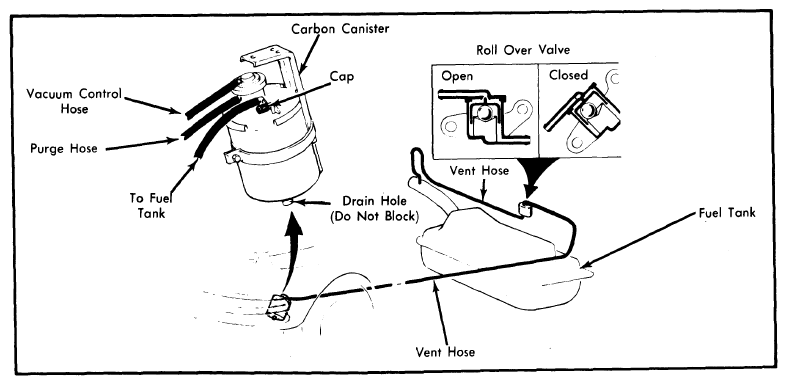

Fig 3: Fuel Evaporation System From Carbon Canister to Fuel Tank on All Models

Courtesy of VOLVO CARS CORPORATION
