Fuse Block & UNDERDASH
Fuse Block & UNDERDASH

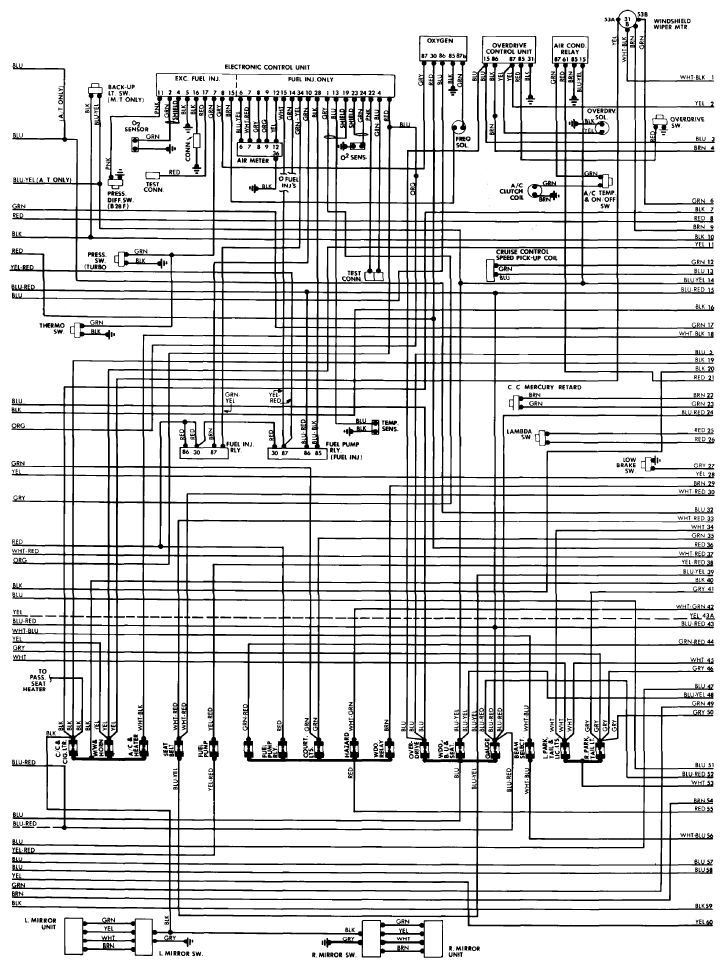

Fig 1: Wiring Diagram - Volvo DL, GL, GLE, GLT TURBO & DL & GL DIESELS (2 of 4)
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
