Fuel Injection System - BOSCH LH: Wiring Diagram

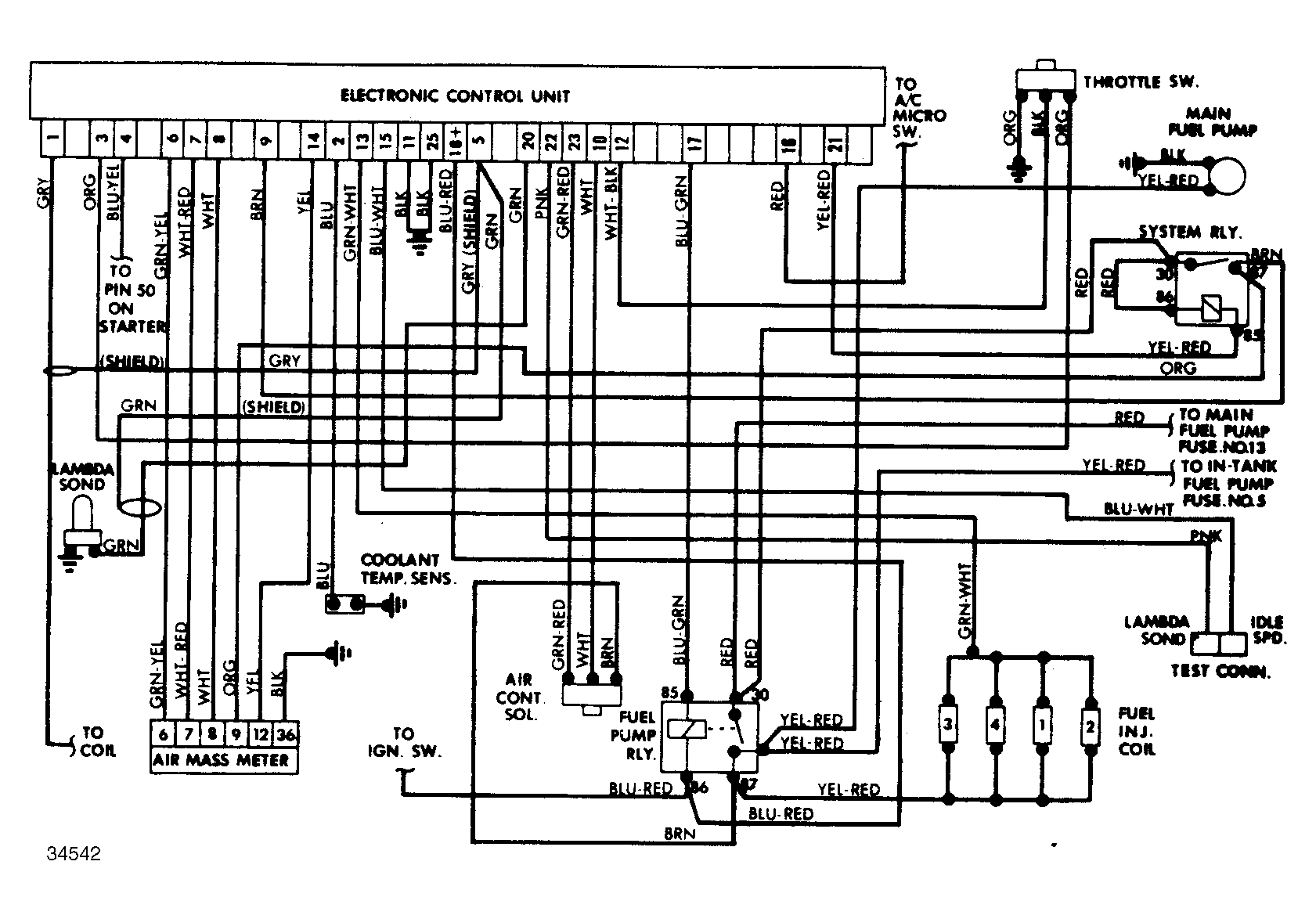

Fig 1: Bosch LH Jetronic II Fuel Injection System Wiring Diagram
G34542
