Control Unit: Functions

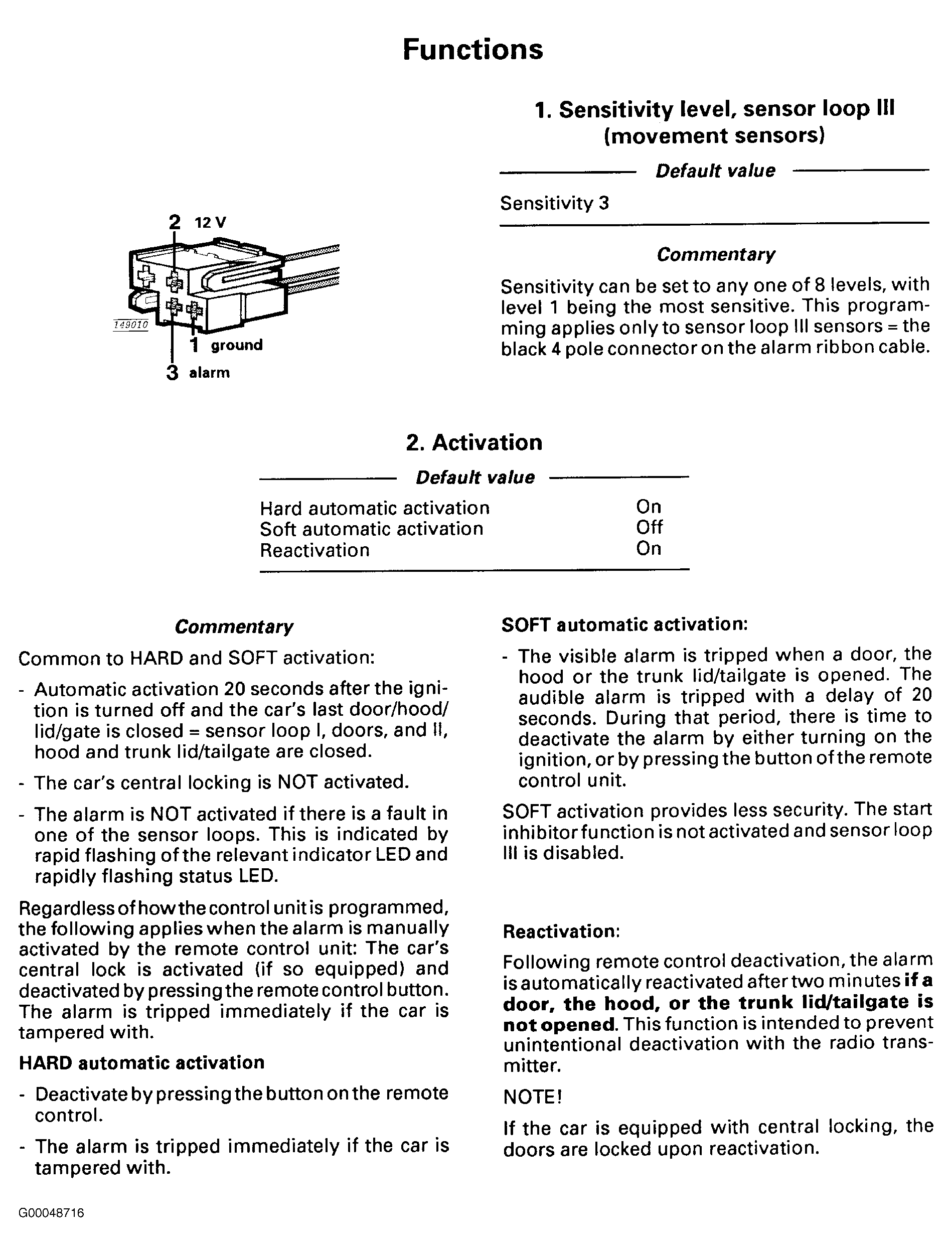

Fig 1: Control Unit Functions (1 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.

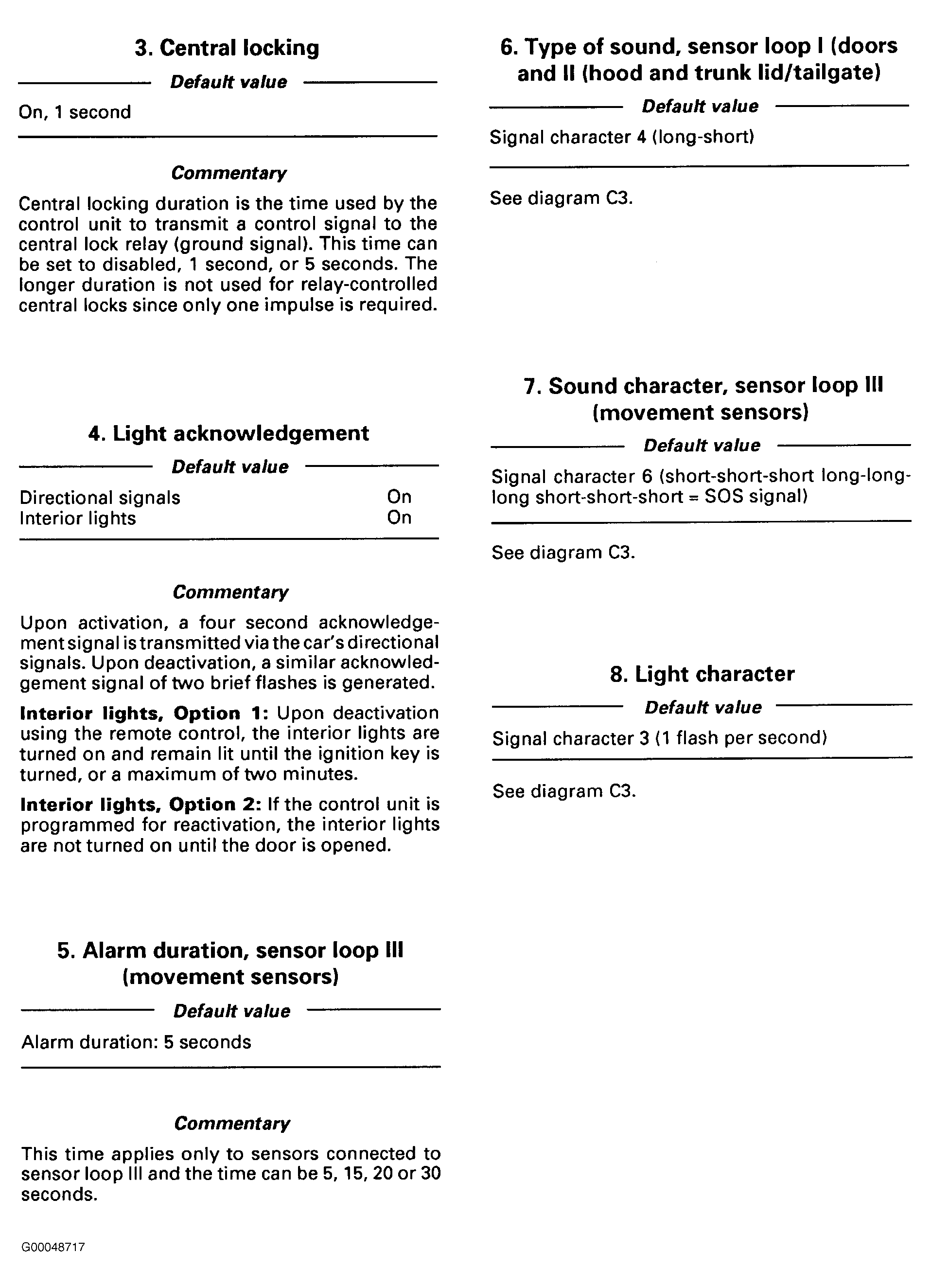

Fig 2: Control Unit Functions (2 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
