VOLVO Guard Anti-Theft System
›
Component Locations
›
Alarm System Components
Alarm System Components

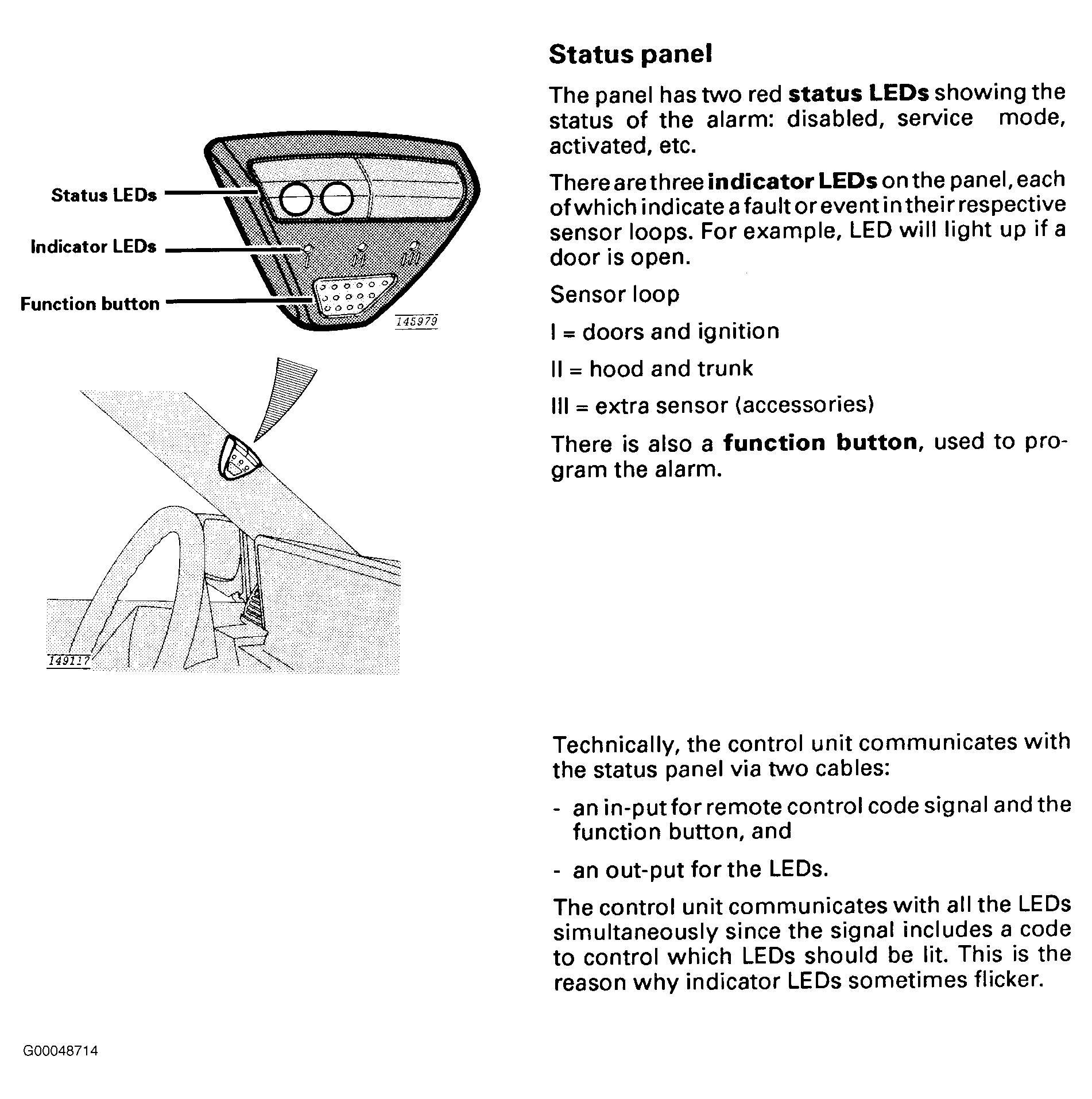

Fig 1: Component Locations (1 Of 4)
Courtesy of VOLVO CARS OF NORTH AMERICA.

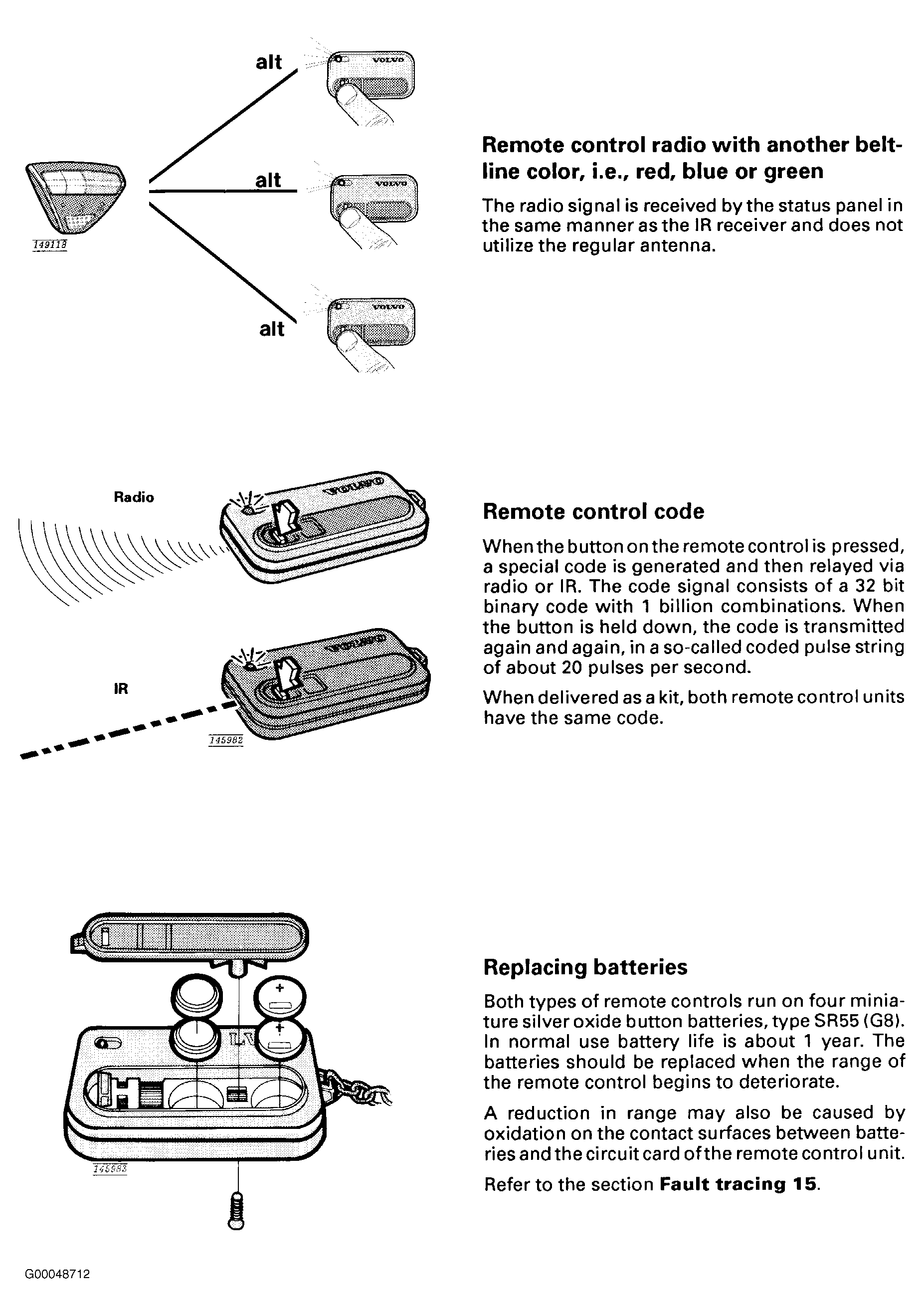

Fig 2: Component Locations (2 Of 4)
Courtesy of VOLVO CARS OF NORTH AMERICA.

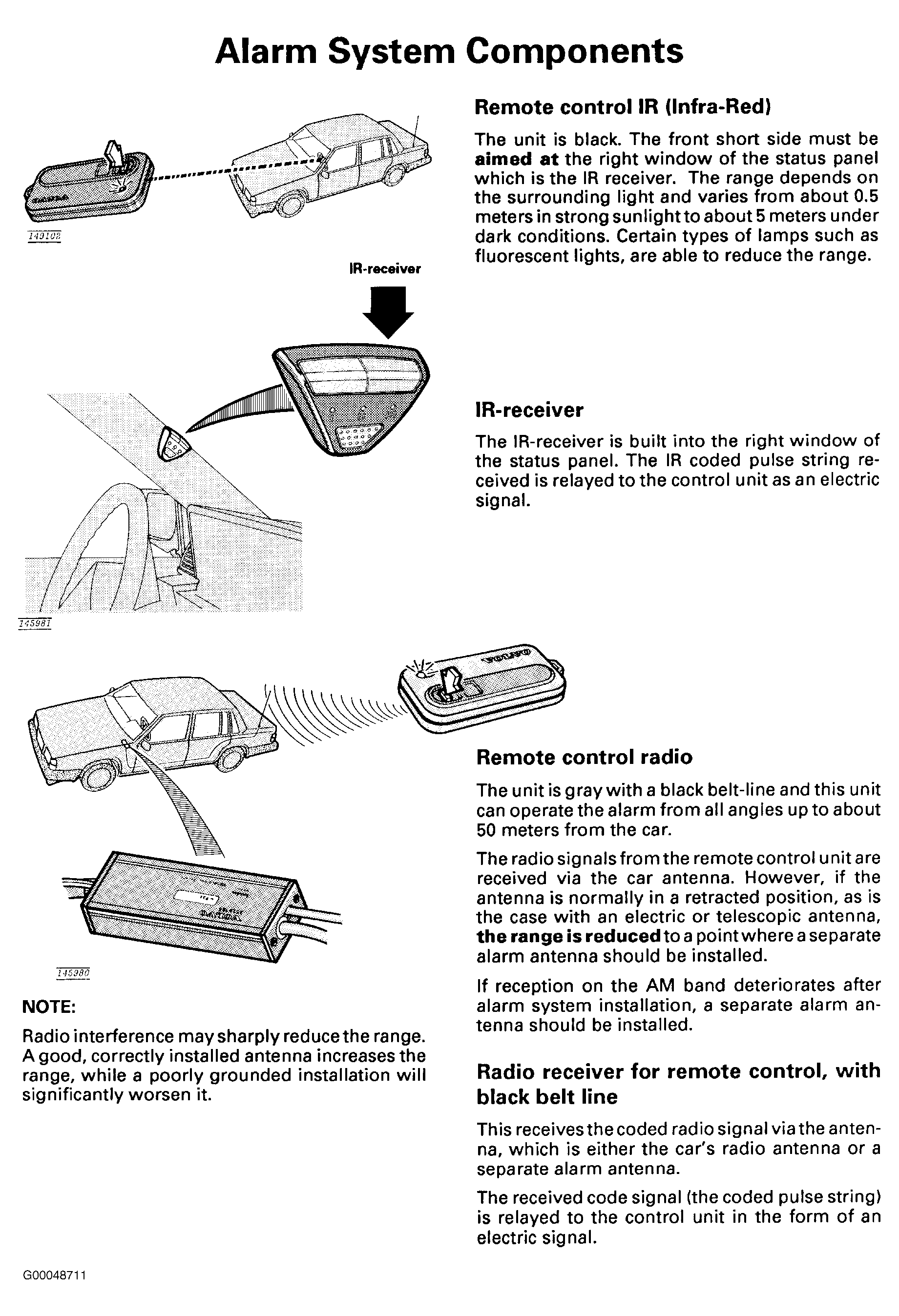

Fig 3: Component Locations (3 Of 4)
Courtesy of VOLVO CARS OF NORTH AMERICA.

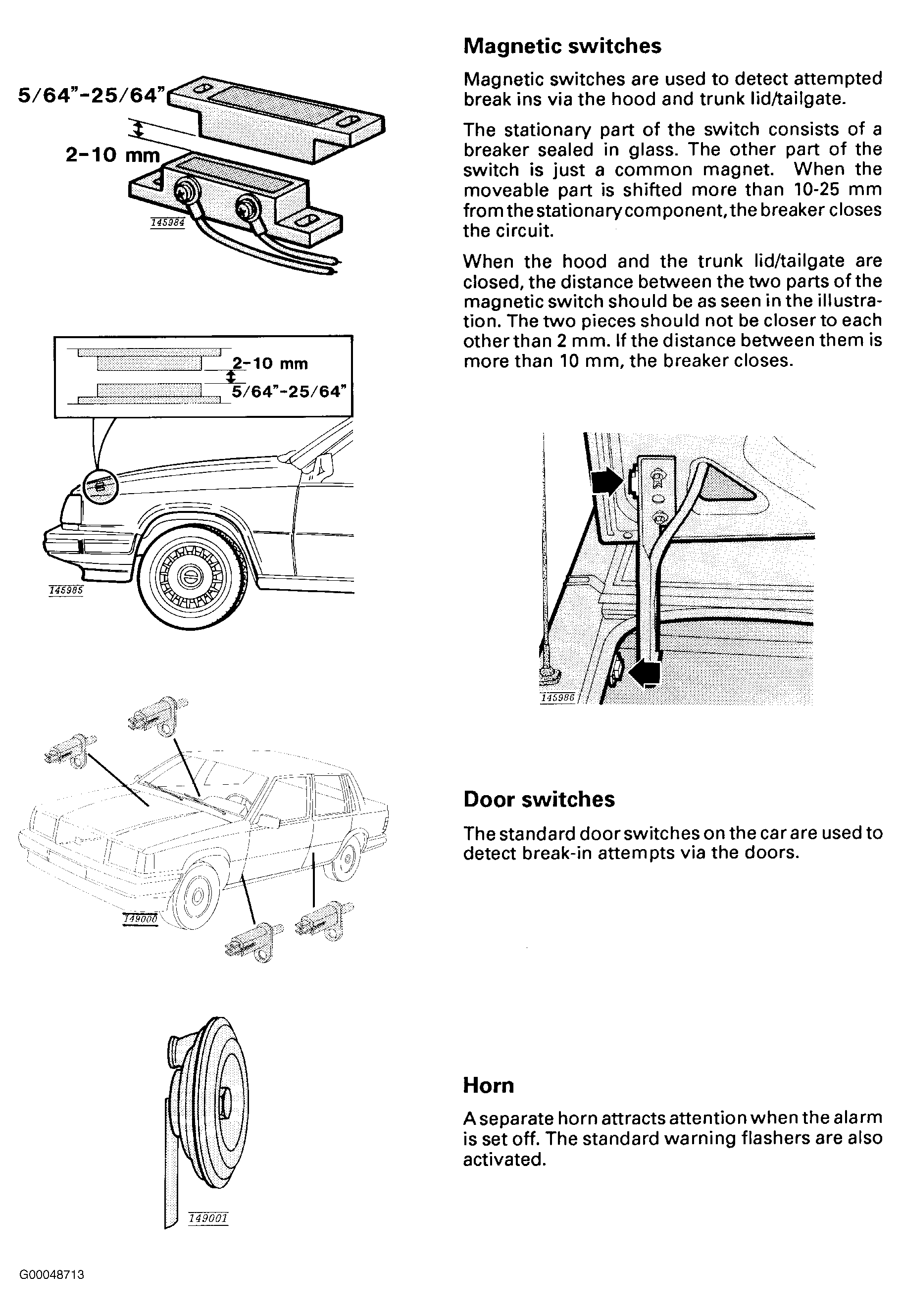

Fig 4: Component Locations (4 Of 4)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
