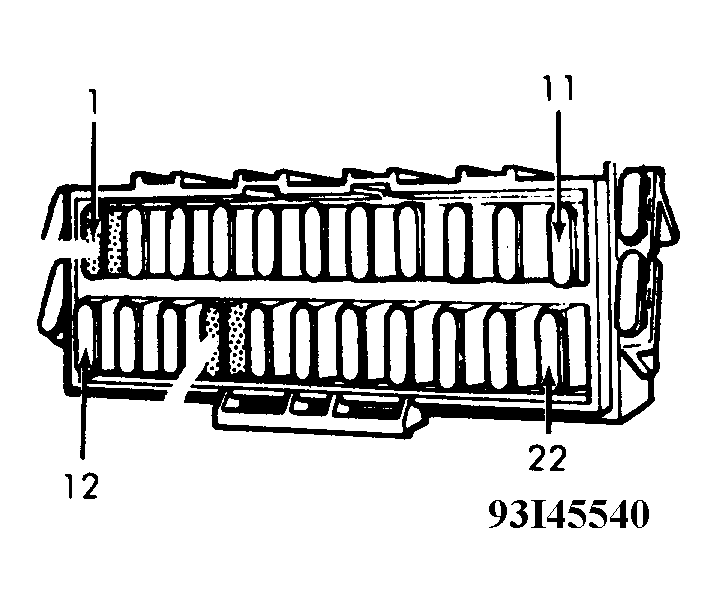

Fuse Panel Identification
Courtesy of VOLVO CARS OF NORTH AMERICA.
- 1 - 25 Amp
Fuel Pump
- 2 - 25 Amp
Hazard Warning Lights, Headlight Flash (Via Fuse 17 & 18), Central Locking
- 3 - 15 Amp
Auxiliary Light Relay (Spot/Fog In Front Spoiler), Rear Foglight Relay
- 4 - 15 Amp
Brake Lights, Gear Shift Indicator
- 5 - 15 Amp
Clock, Vanity Mirror Light, Glove Compartment Light, Engine Compartment & Trunk Light, Courtesy Lighting, Radio, Power Antenna, Door-Open Warning Lamps
- 6 - 25 Amp
Electric Cooling Fan
- 7 - 30 Amp
Power Windows
- 8 - 15 Amp
Direction Indicators, Fasten Seat Belt Light, Heated Front Seats, Power Windows, A/C, Electric Cooling Fan
- 9 - 30 Amp
Heated Rear Window, Power Sun Roof, Power Door Mirrors
- 10 - 15 Amp
Heated Front Seat, Cruise Control, Back-up Lights, Low Oil Level Warning Light
- 11 - 15 Amp
Back-Up Lights, Low Oil Level Indicator Lamp, Over-Drive, Ignition Advance, Cruise Control
- 12 - 15 Amp
Power Door Mirrors, Cigar Lighter, Radio, Tailgate Wiper CIS FI System, Fuel Valve (Diesel), Glow Plugs (Diesel), Automatic Choke
- 13 - 15 Amp
Horn, Windshield Wiper, Headlight Washer/Wiper
- 14 - 30 Amp
Heater Fan, A/C
- 15 - 15 Amp
Tank Pump, Heated Lambda-Sond
- 16 - 15 Amp
Rear Fog Lights, Headlamp Cut-out
- 17 - 15 Amp
Left Headlight (High Beam)
- 18 - 15 Amp
Right Headlight (High Beam), Spot Lamps
- 19 - 15 Amp
Left Headlight (Low Beam)
- 20 - 15 Amp
Right Headlight (Low Beam)
- 21 - 15 Amp
Instrument & Panel Lighting, Tail Lights & Parking Lights, Left License Plate Light
- 22 - 15 Amp
Seat Belt Light, Rear Ashtray Light, Automatic Transmission Selector Panel Light, Transmission Tunnel Switch Lighting, Right Tail Lights & Parking Lights, Auxiliary Light Relay
