Governor Assembly: Disassembly

Remove retaining clip from governor assembly. Remove "E" clip from end of governor shaft. Remove shaft with governor valve, spring and weight from valve bore side of body.

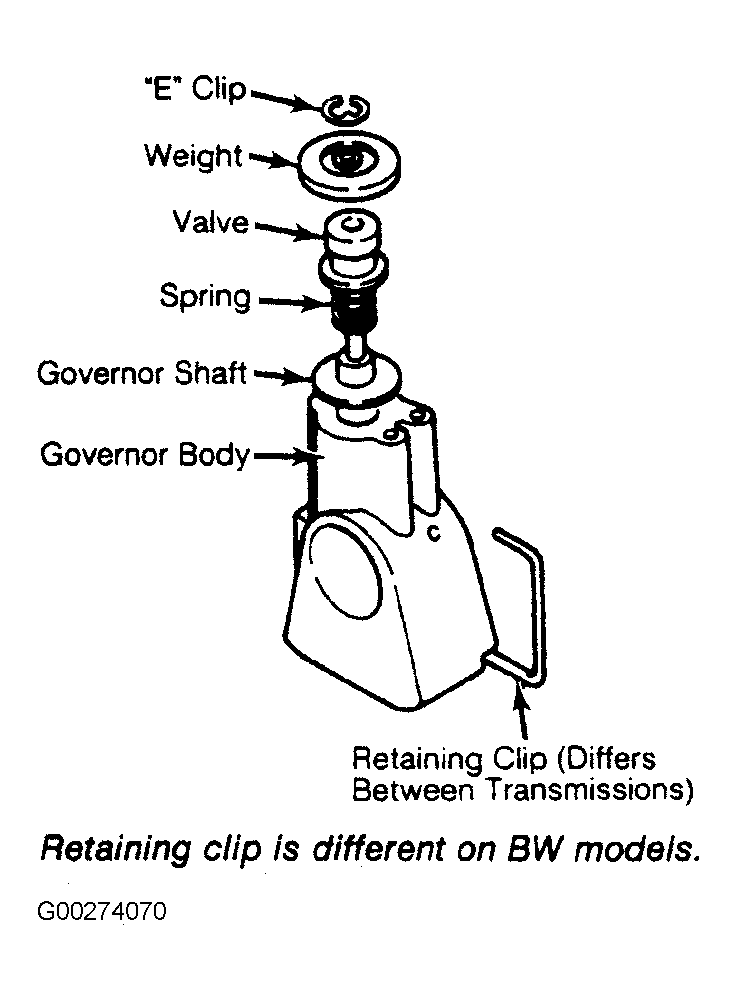

Fig 1: Disassembled View of Governor Assembly
G00274070Courtesy of ISUZU MOTOR CO.
