Control Units

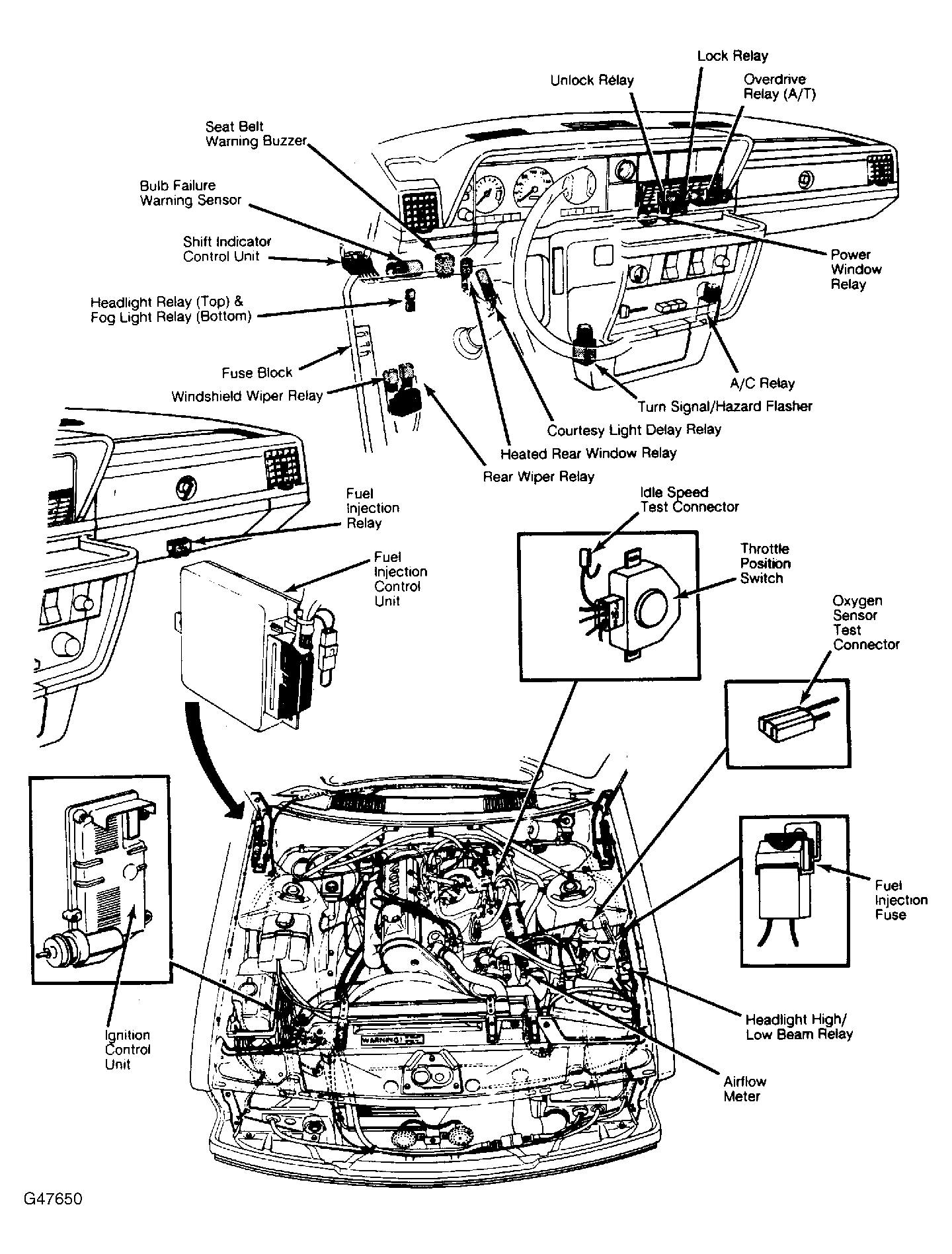

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Fuel Injection Control Unit | Under right side of dash, behind passenger's kick panel. See Figure . |
| Ignition Control Unit | On right front corner of engine compartment. See Figure . |
| Shift Indicator Control Unit | Under left side of dash, above fuse block. See Figure . |
