Wiring Diagrams

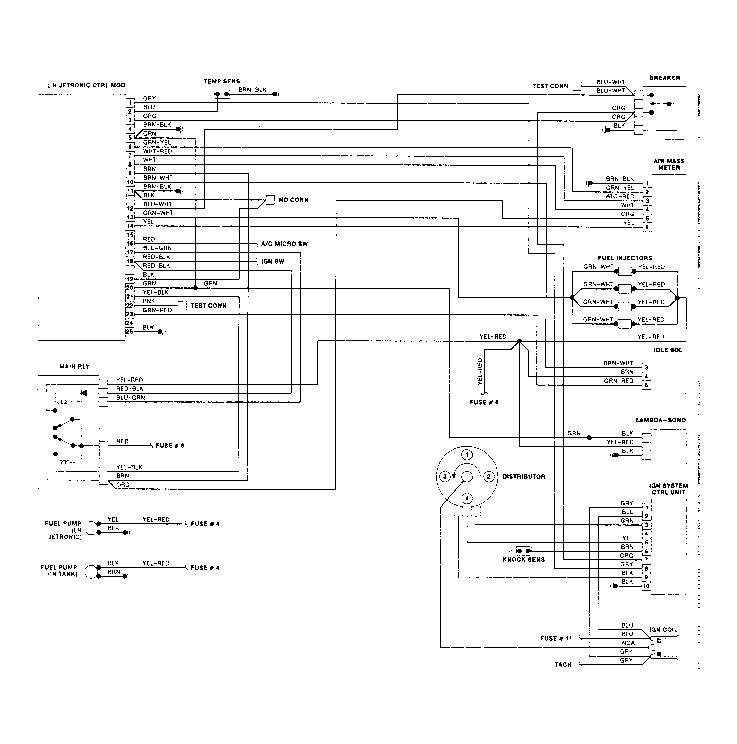

Fig 1: Volvo 240 Series LH-Jetronic Wiring Diagram

G93442

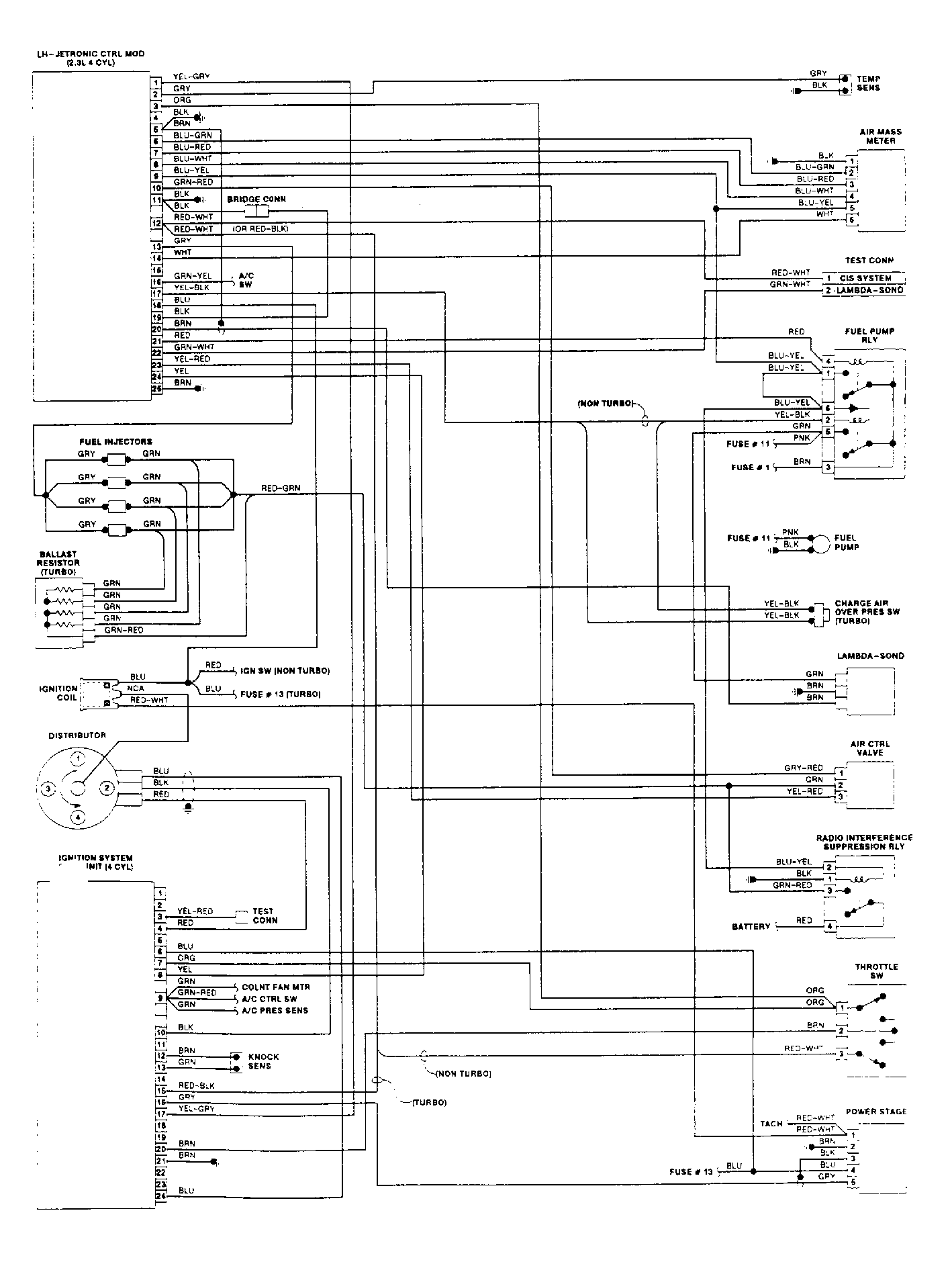

Fig 2: Volvo 740 Turbo & Non-Turbo 4-Cylinder LH-Jetronic Wiring Diagram

G93443

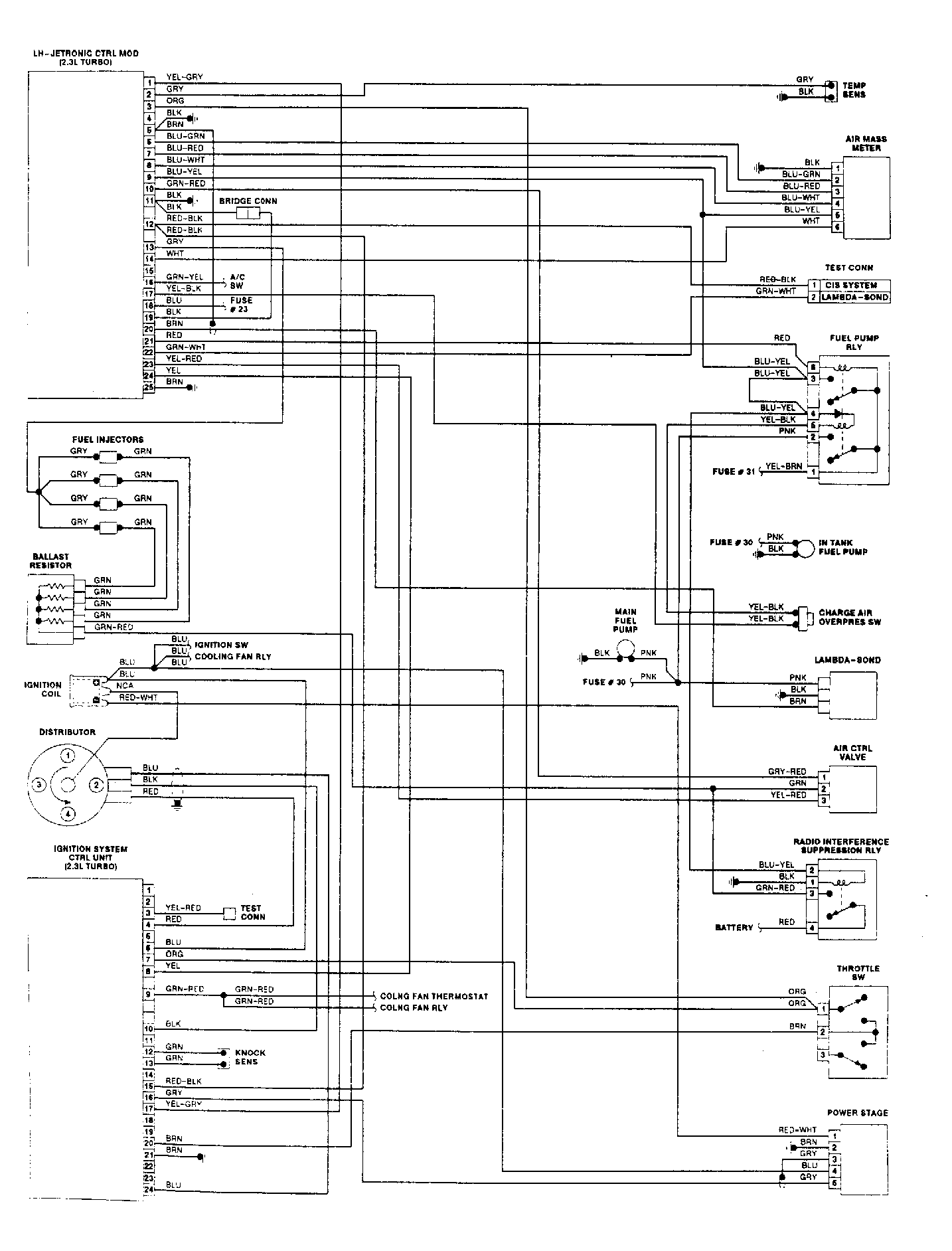

Fig 3: Volvo 760 Turbo 4-Cylinder LH-Jetronic Wiring Diagram

G93444

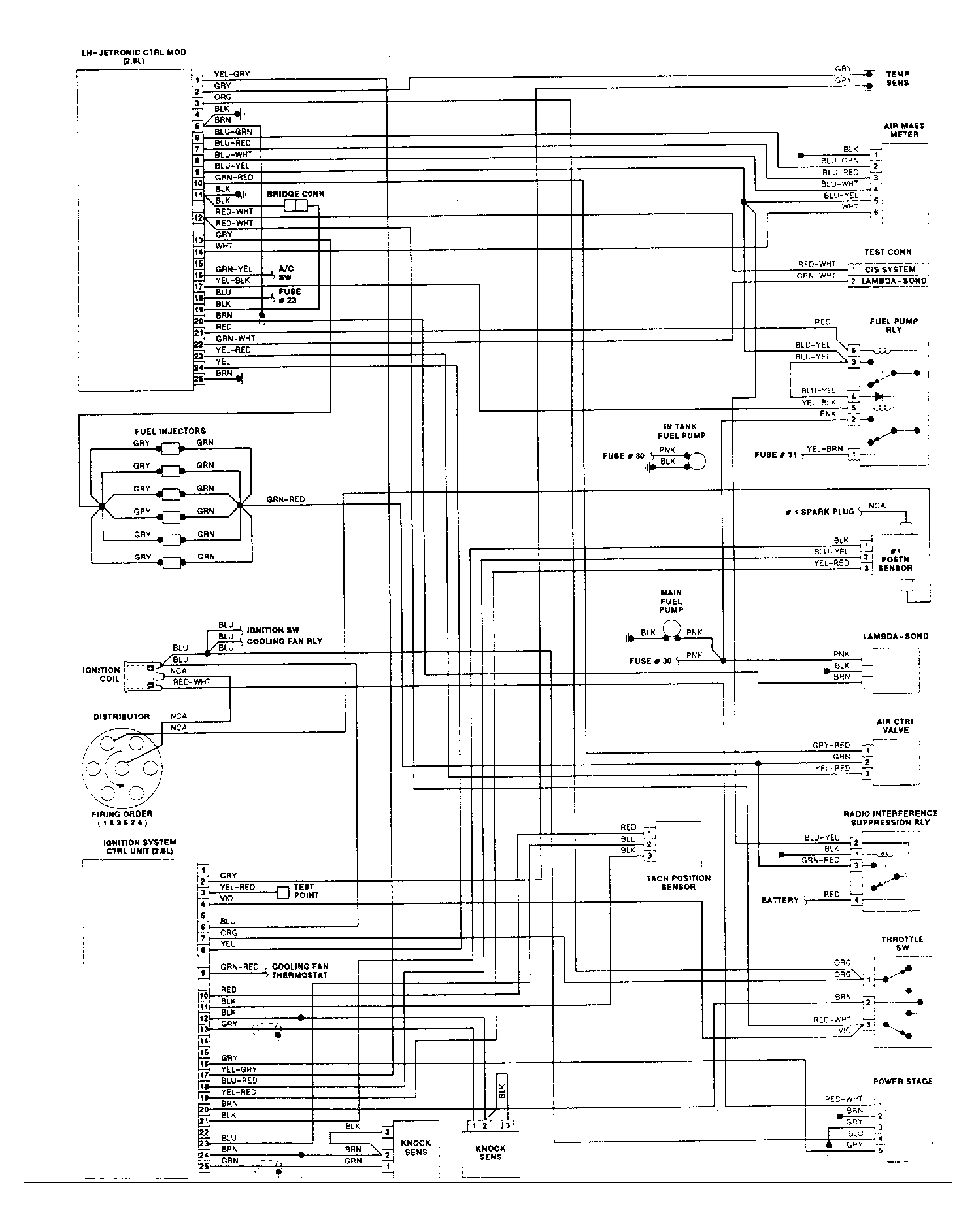

Fig 4: Volvo 760 & 780 6-Cylinder LH-Jetronic Wiring Diagram

G93445
