Test Charts (Fuel System)

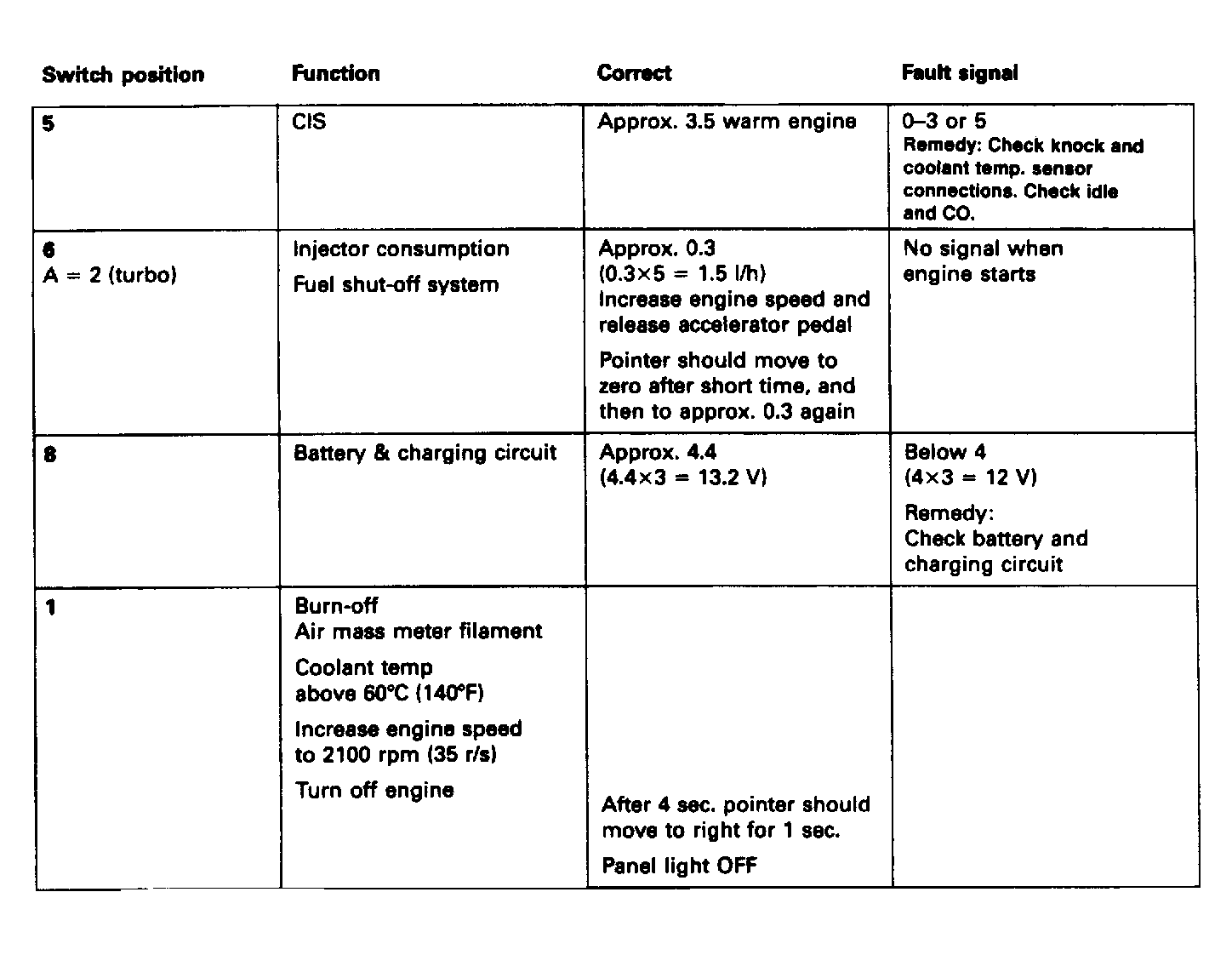

Fig 1: Fuel System Function Test

Courtesy of VOLVO CARS OF NORTH AMERICA.

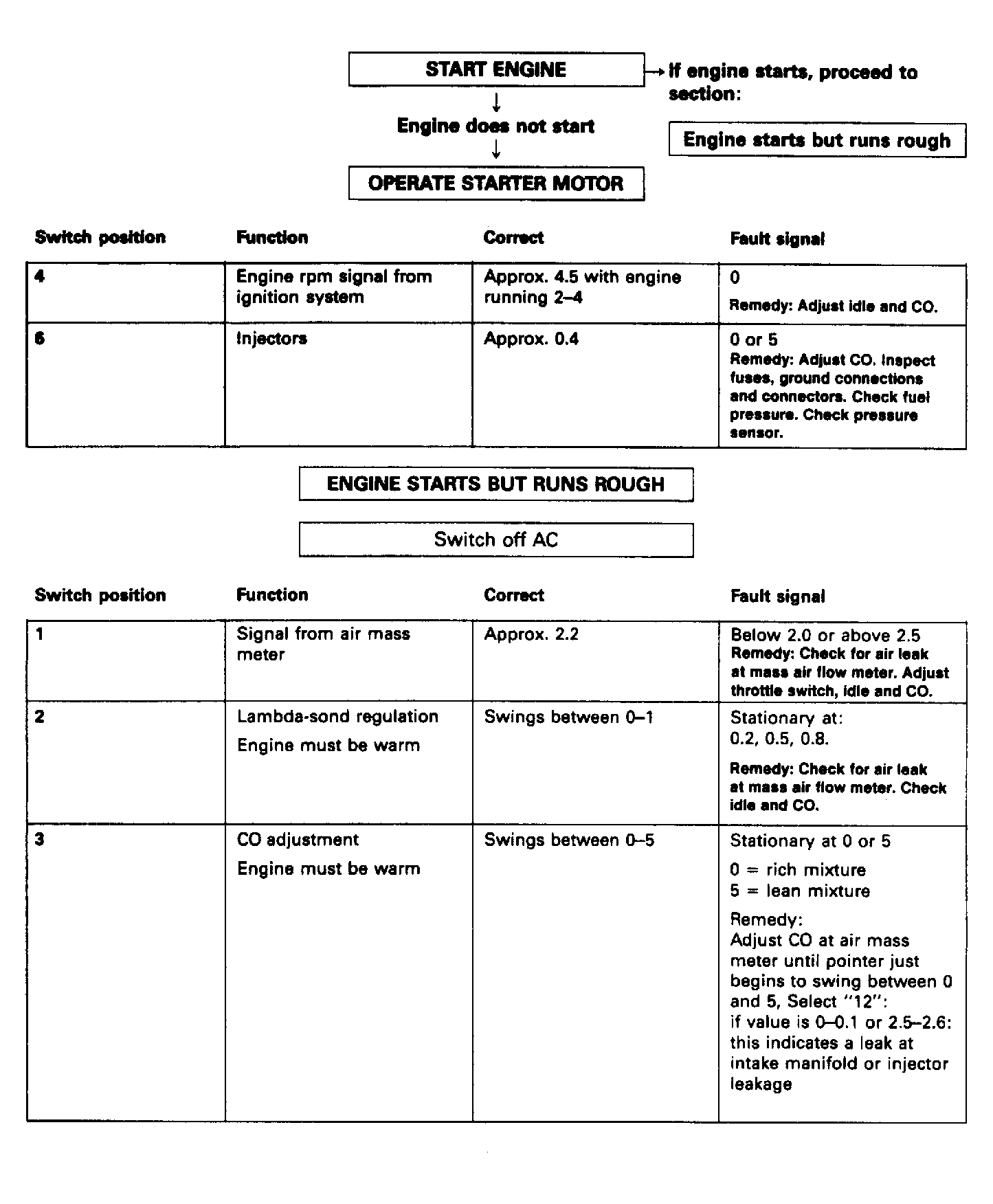

Fig 2: Engine Start/No Start Flow Chart (1 of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

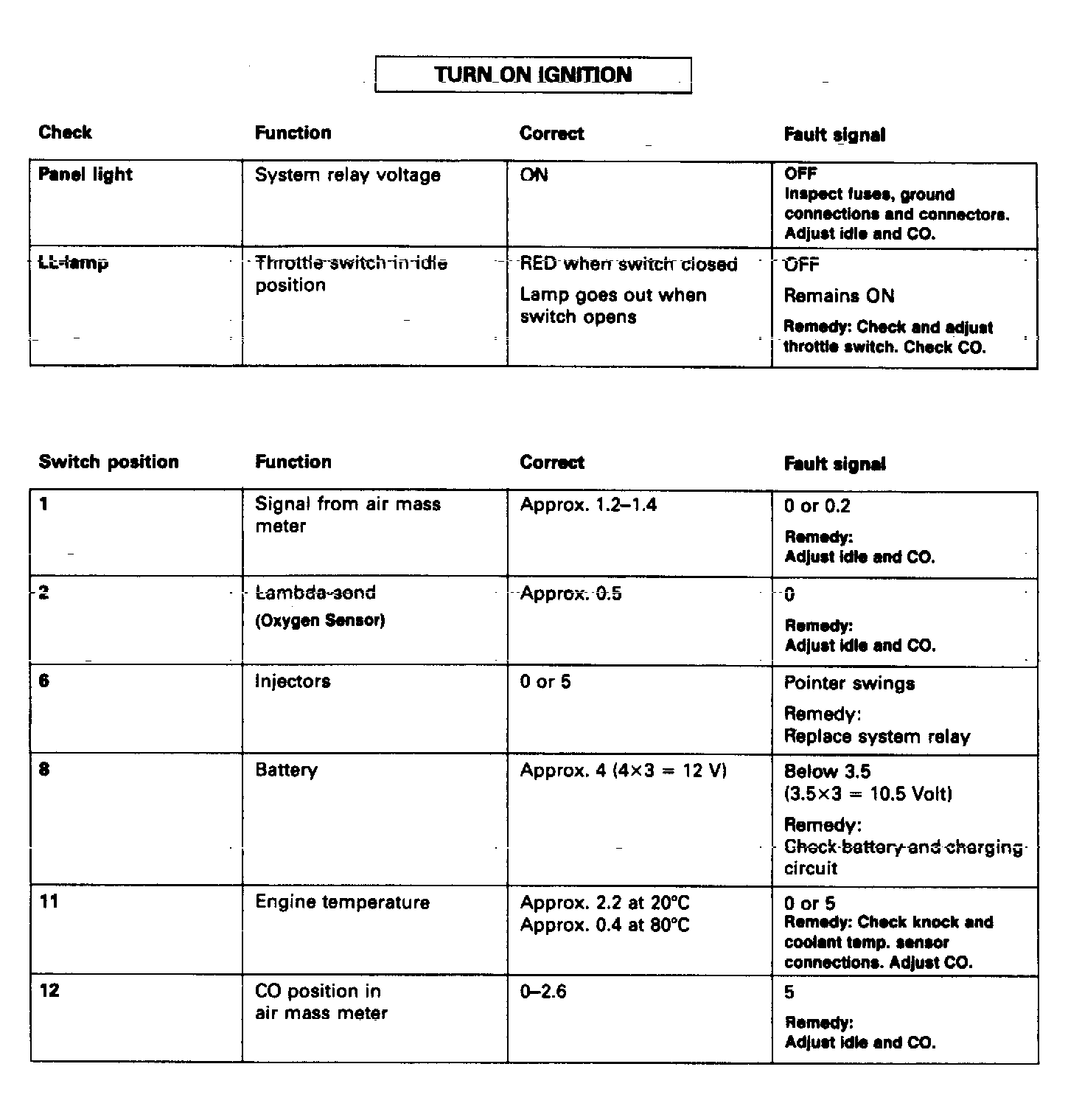

Fig 3: Engine Start/No Start Flow Chart (2 of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
