Service Indicator & Warning Lights: Notes

NOTE: Dash panel warning lights should come on as a bulb check when the ignition switch is turned to the "ON" position, and go out when the vehicle is started. Additional gauges and indicators which are self-explanatory are fitted to most dash panels.

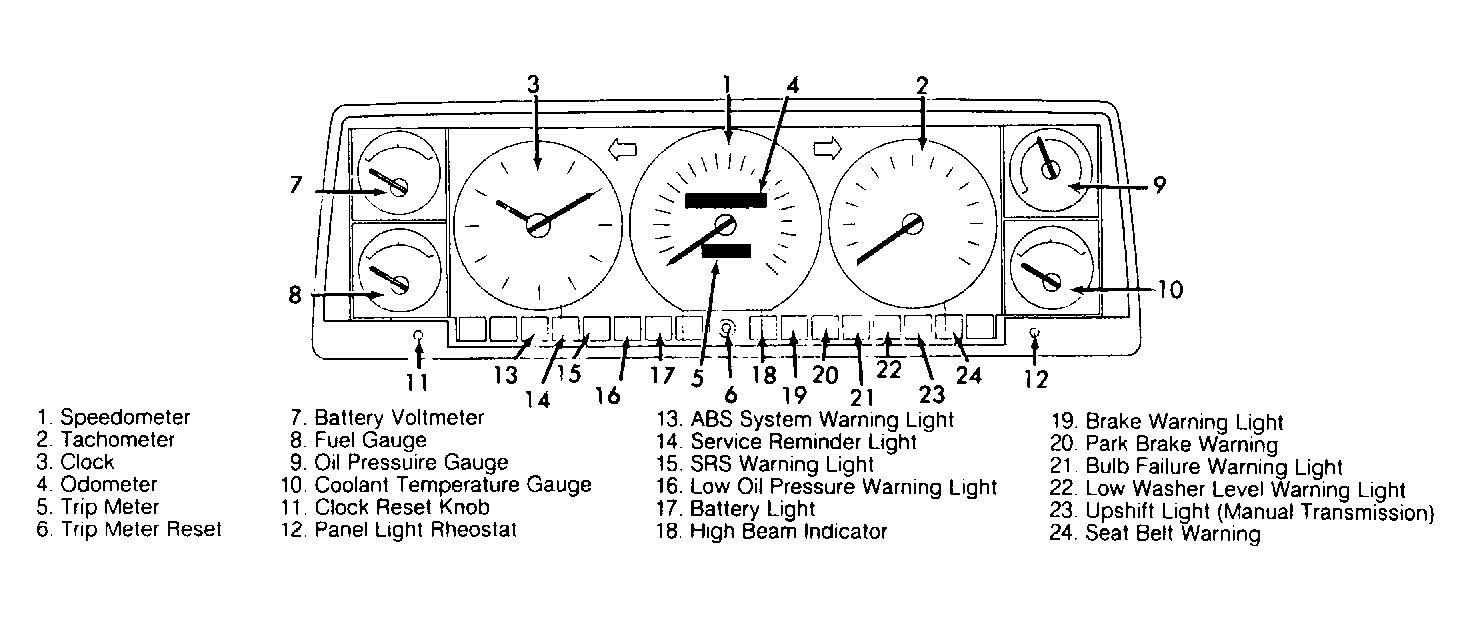

Fig 1: Dash Gauges & Warning Light Identification
G90A10090Courtesy of VOLVO CARS OF NORTH AMERICA.
