Pin Voltage Charts

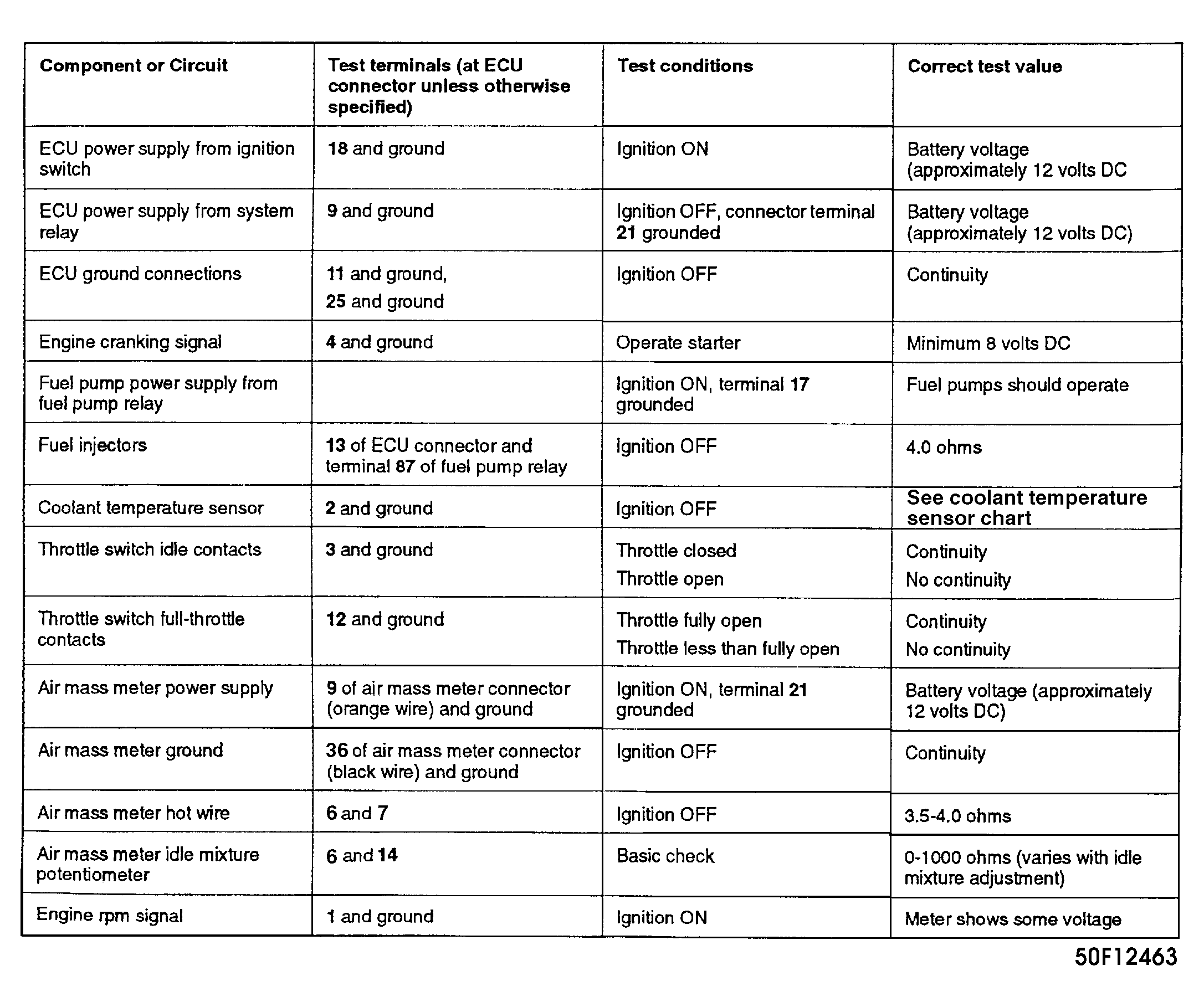

Fig 1: LH-2.0 Pin Voltage Chart (1 of 2)

G50F12463

Courtesy of VOLVO CARS OF NORTH AMERICA.

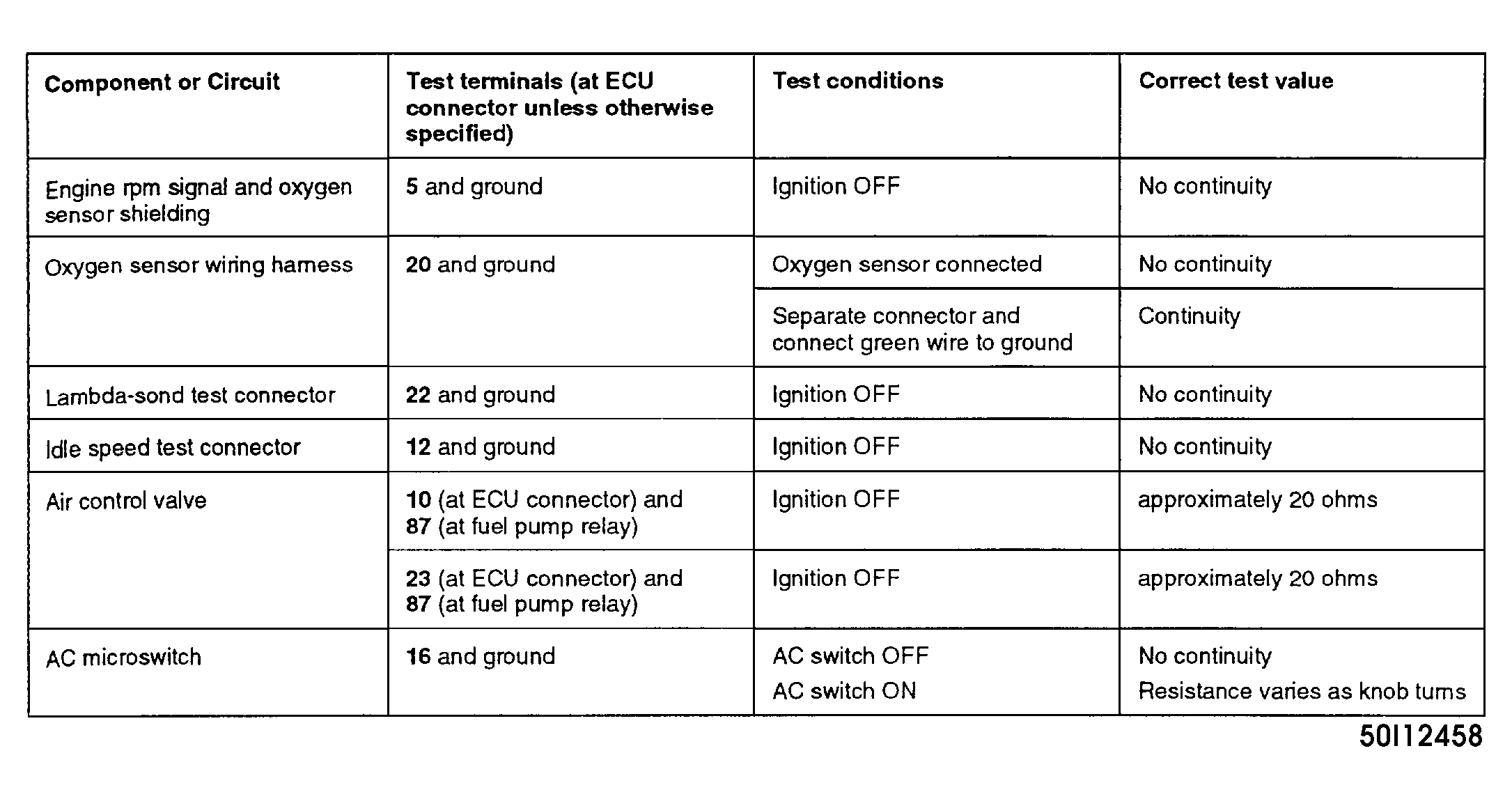

Fig 2: LH-2.0 Pin Voltage Chart (2 of 2)

G50I12458

Courtesy of VOLVO CARS OF NORTH AMERICA.

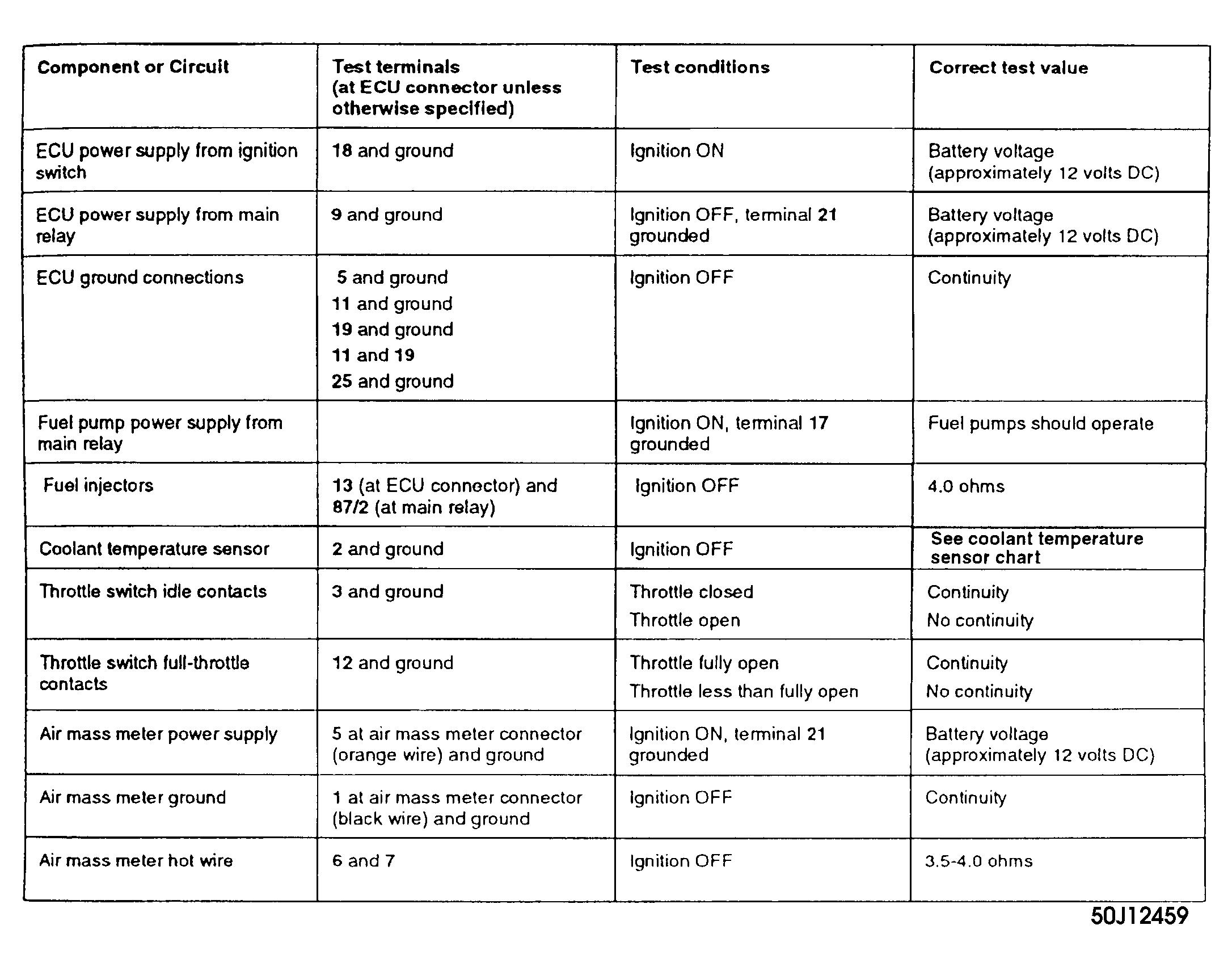

Fig 3: LH-2.2 Pin Voltage Chart (1 of 2)

G50J12459

Courtesy of VOLVO CARS OF NORTH AMERICA.

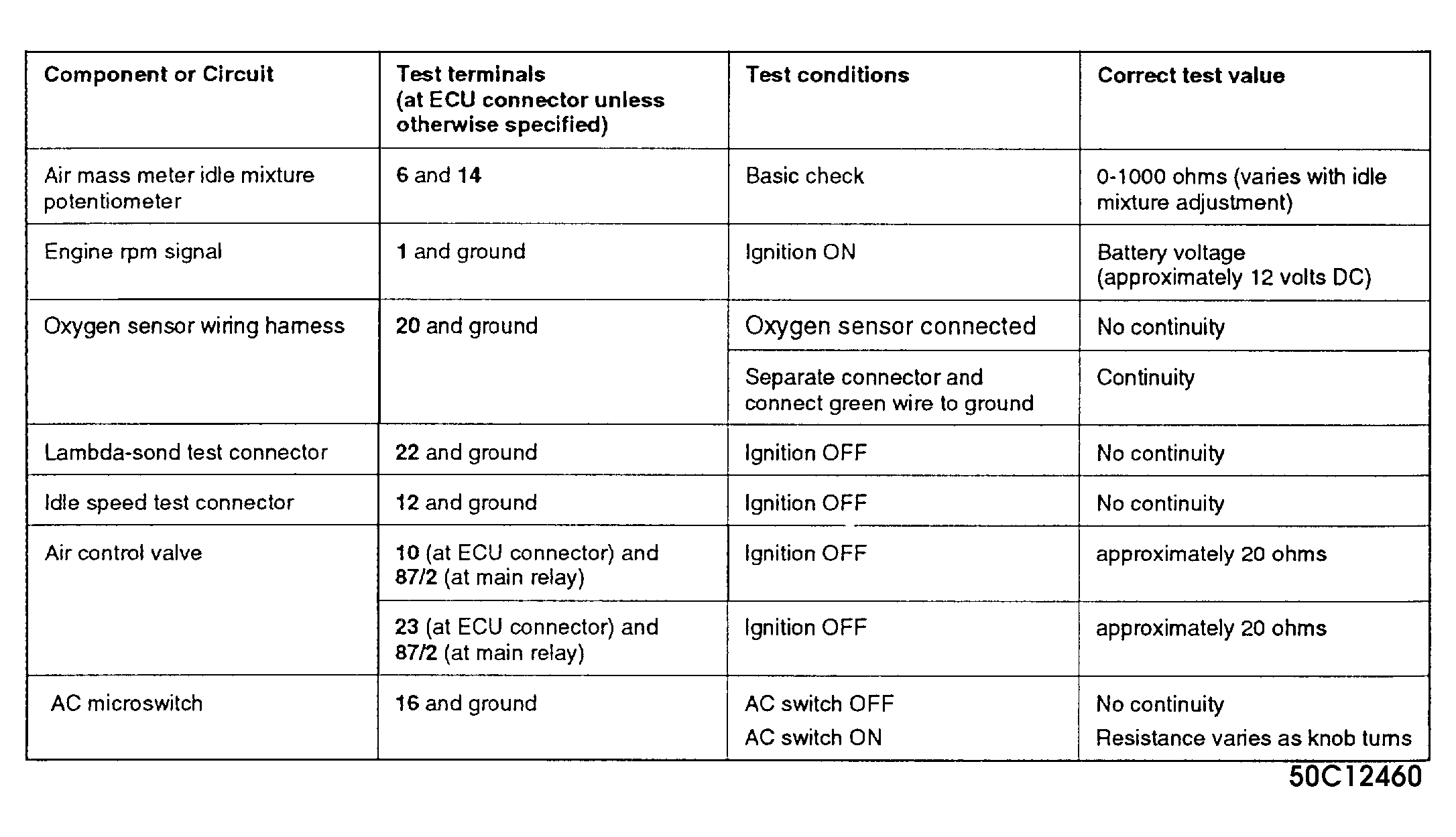

Fig 4: LH-2.2 Pin Voltage Chart (2 of 2)

G50C12460

Courtesy of VOLVO CARS OF NORTH AMERICA.

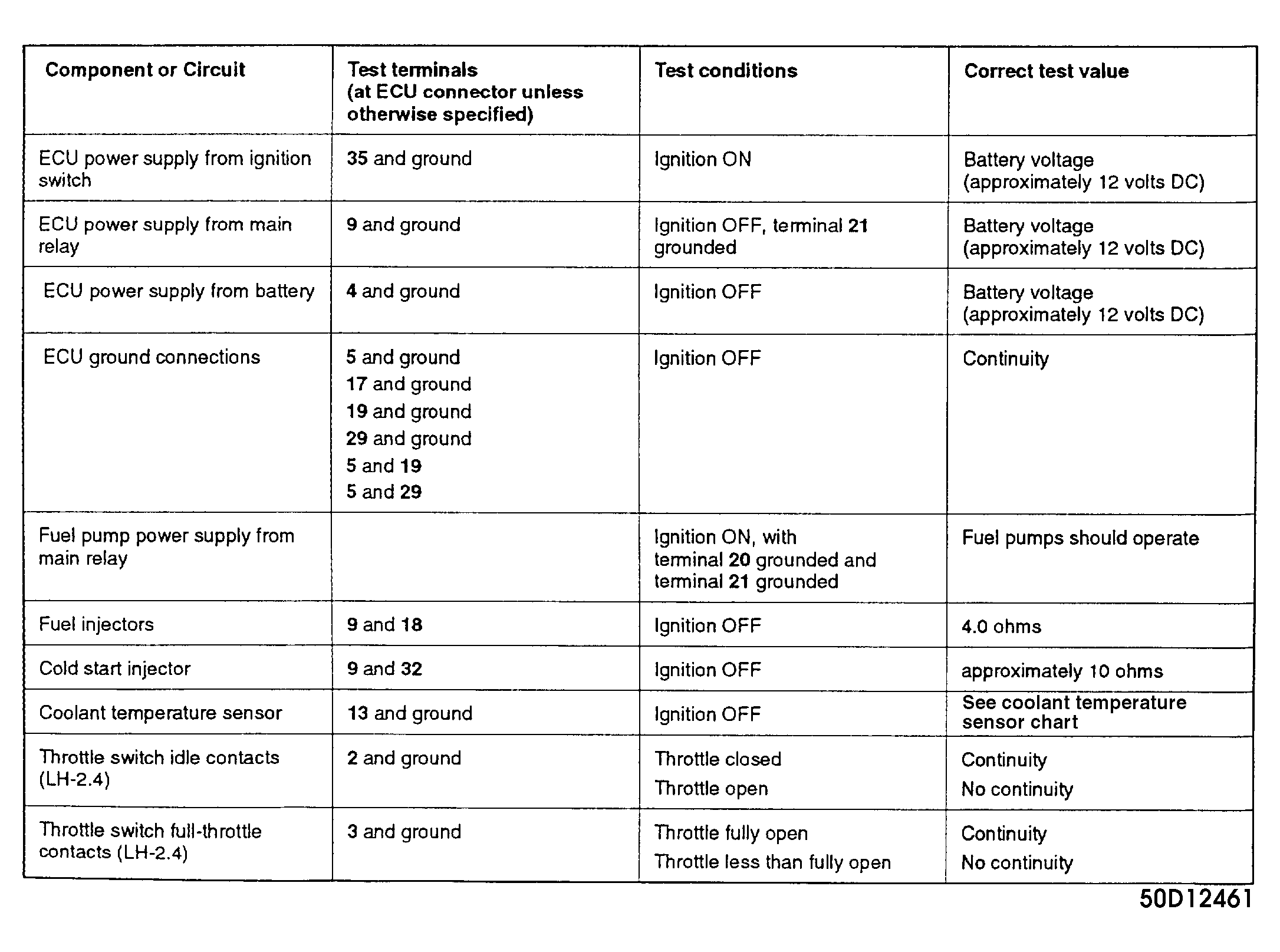

Fig 5: LH-2.4 & LH-3.1 Pin Voltage Chart (1 of 2)

G50D12461

Courtesy of VOLVO CARS OF NORTH AMERICA.

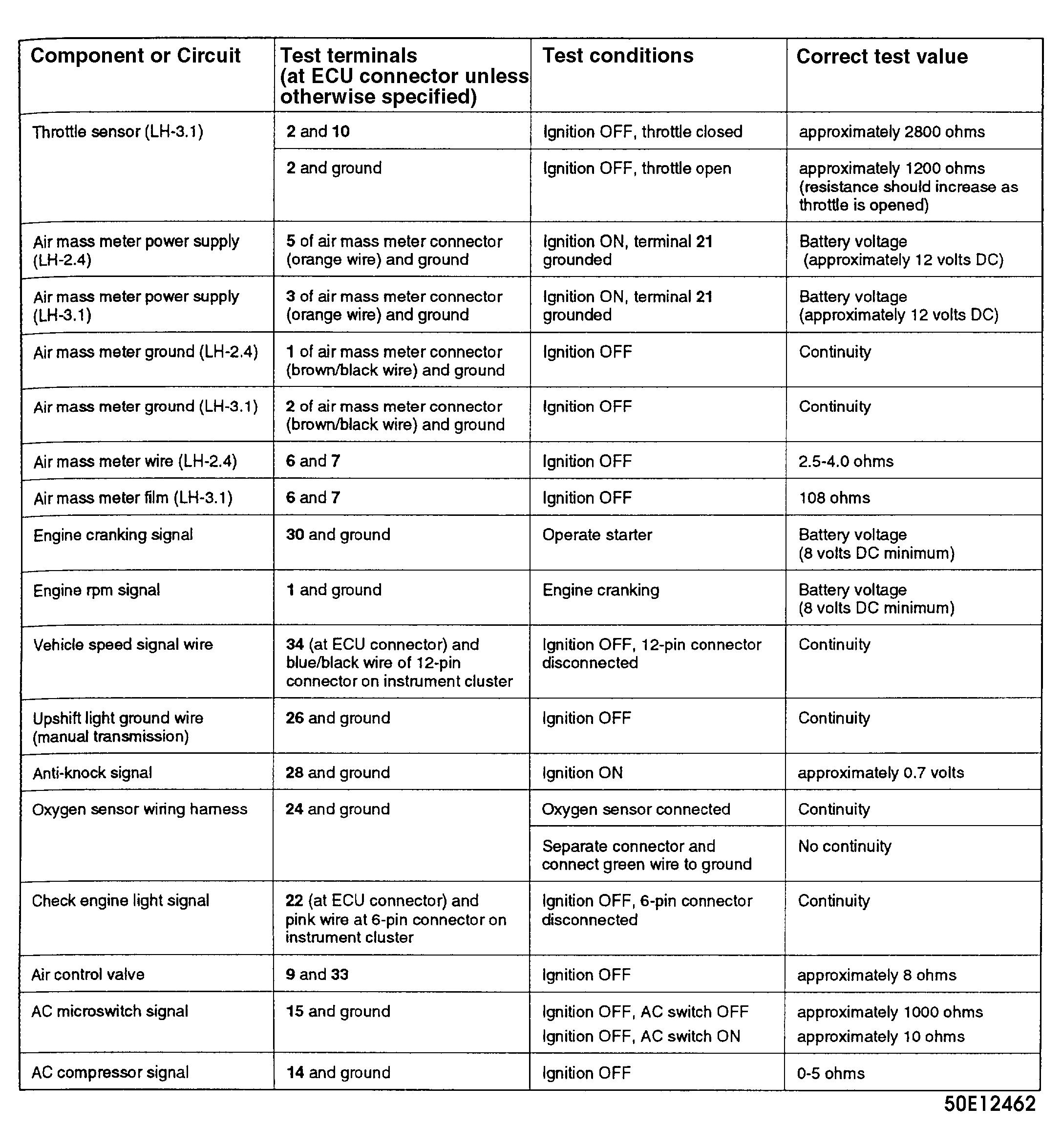

Fig 6: LH-2.4 & LH-3.1 Pin Voltage Chart (2 of 2)

G50E12462

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Coolant Temperature Sensor Chart

G50H12457

Courtesy of VOLVO CARS OF NORTH AMERICA.
