Key Lock Cable Replacement - (GK)

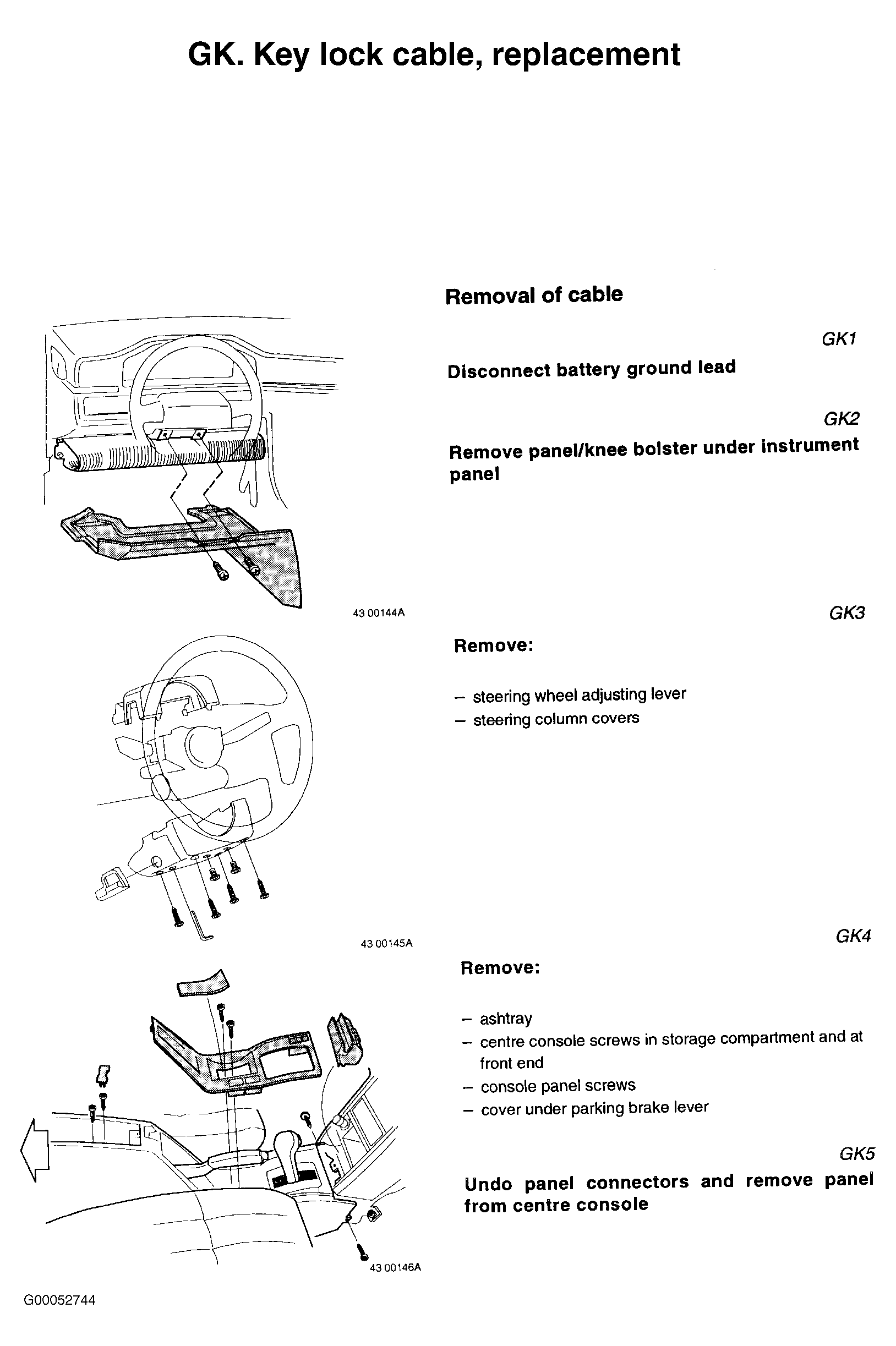

Fig 1: Key Lock Cable - Steps GK1-GK5 (1 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

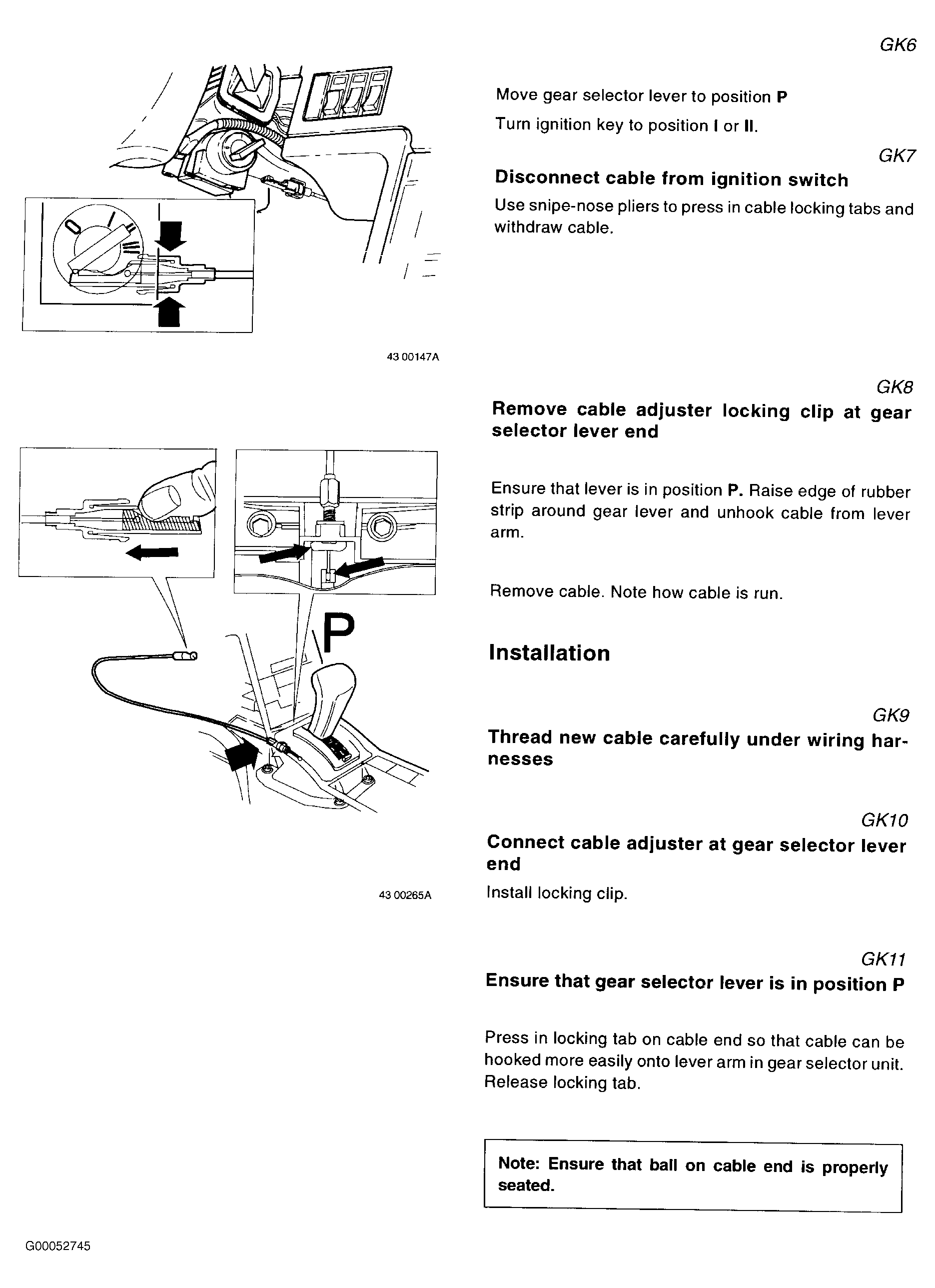

Fig 2: Key Lock Cable - Steps GK6-GK11 (2 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

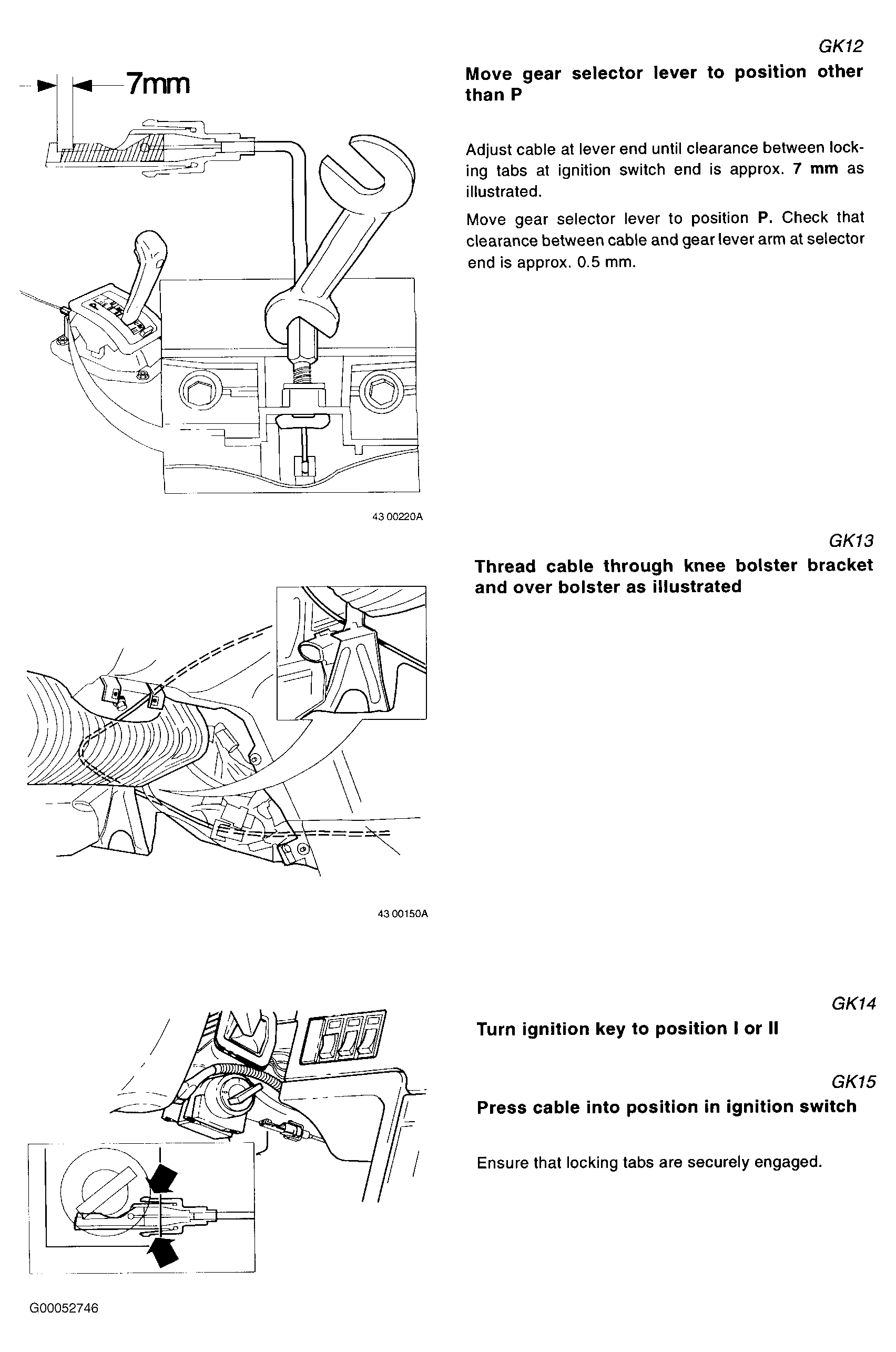

Fig 3: Key Lock Cable - Steps GK12-GK15 (3 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

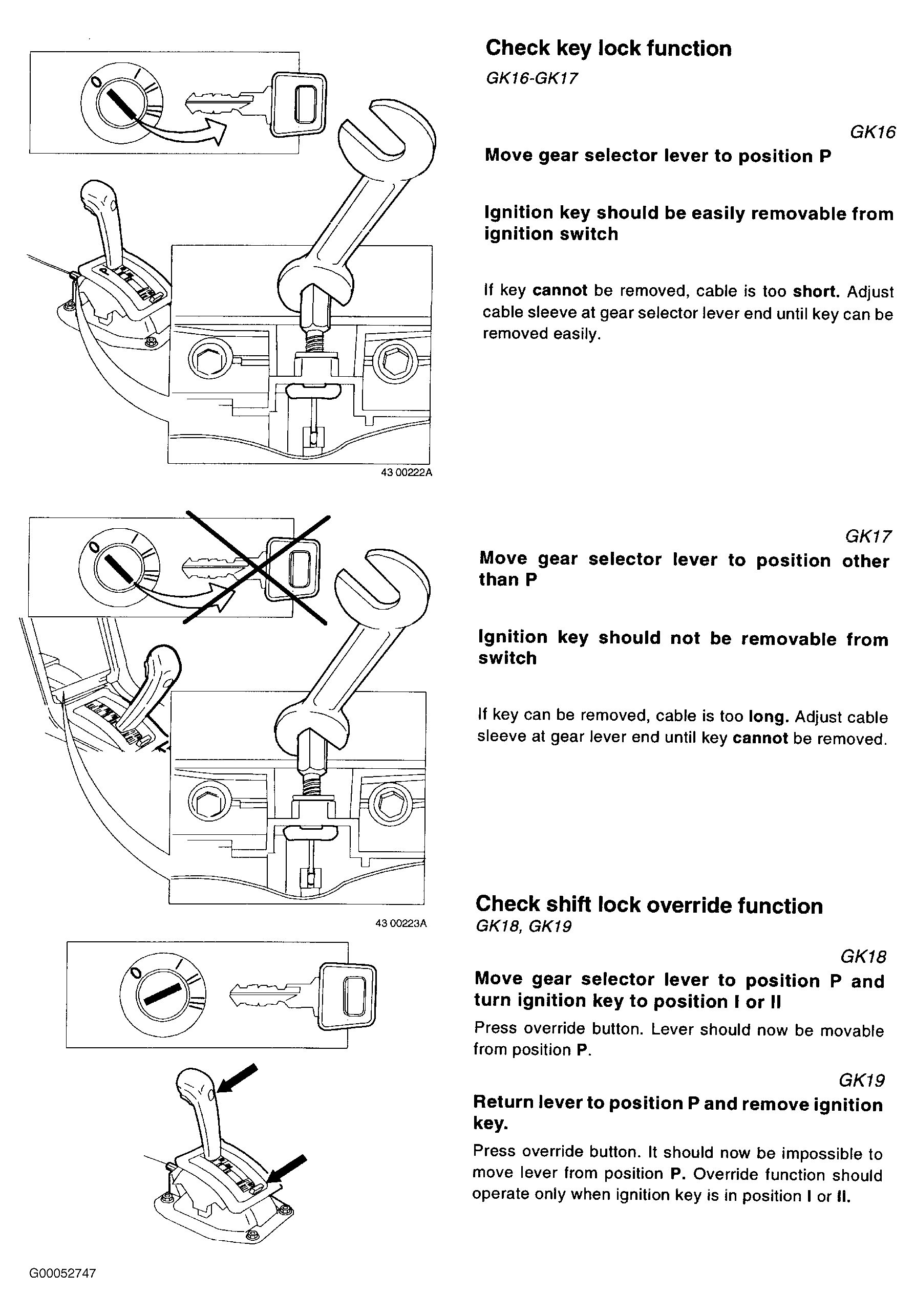

Fig 4: Key Lock Cable - Steps GK16-GK19 (4 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

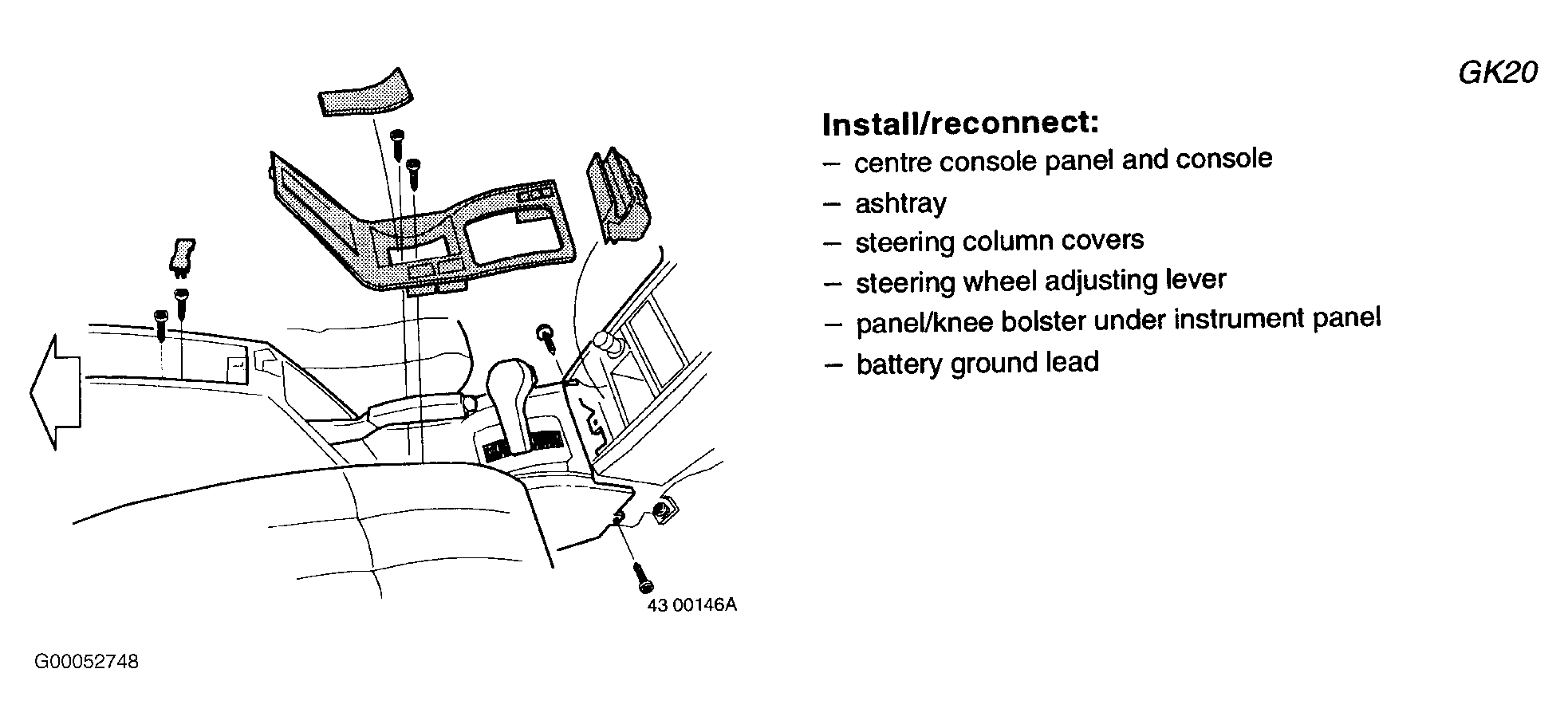

Fig 5: Key Lock Cable - Step GK20 (5 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.
