Modifying ECC Temperature Sensor (GROUP 87, NO. 958)

WARNING: This page is about the 940 Turbo, 4D Sedan, AW71, which is a different variant/trim than selected.

Publication date: 1996-10-01
Reference number: GROUP 87, NO. 958

MODIFYING ECC TEMPERATURE SENSOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 87, NO. 958, Date of Issue: October, 1996

Model(s): 1990-95 Volvo 940

1991-On Volvo 960

Section: 8 - Body

Group: 87

Bulletin No.: 958

Date: October, 1996

TP 8707201, Section 8 (87) Climate Units; 700/900 1982-On.

There are two variants of the ECC temperature sensor, with or without a spacer. See Fig 1 .

If a sensor without a spacer is required (P/N 1363439-9), order a temperature sensor with a spacer and remove the spacer from the sensor.

Only sensors with spacers are stocked as replacement parts, P/N 9145736-6.

Hold the sensor by its connector and turn the spacer counter-clockwise to remove it from the temperature sensor. See Fig 2 .

The seal should remain on the sensor.

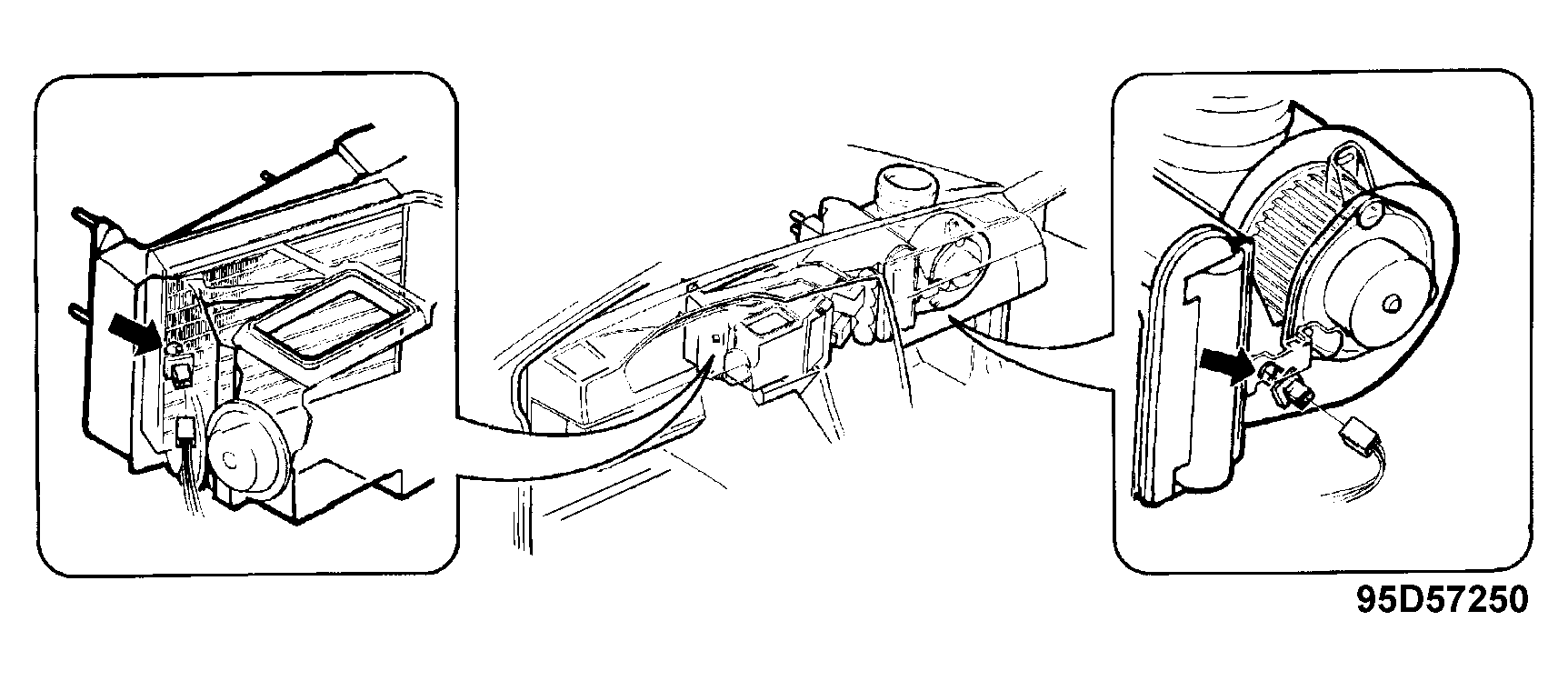

Fig 1: ECC Temperature Sensor, With & Without Spacer - Location

Fig 2: Sensor Connector - Turn & Remove From Temperature Sensor
