Anti-Lock Brake System & Traction Control System: Wiring Diagram

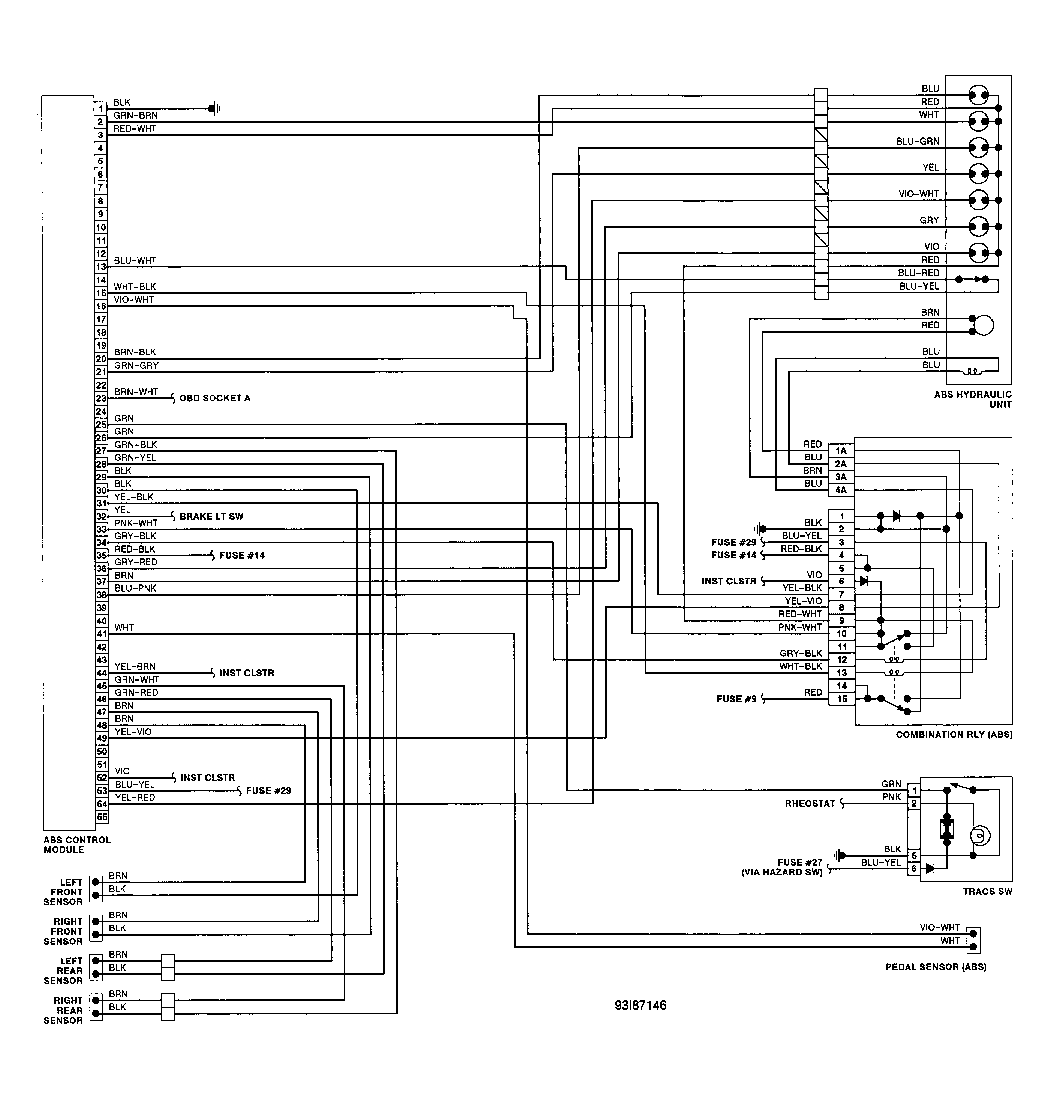

Fig 1: Anti-Lock Brake & Traction Control System Wiring Diagram
G93I87146
