Guard Alarm II Control Module

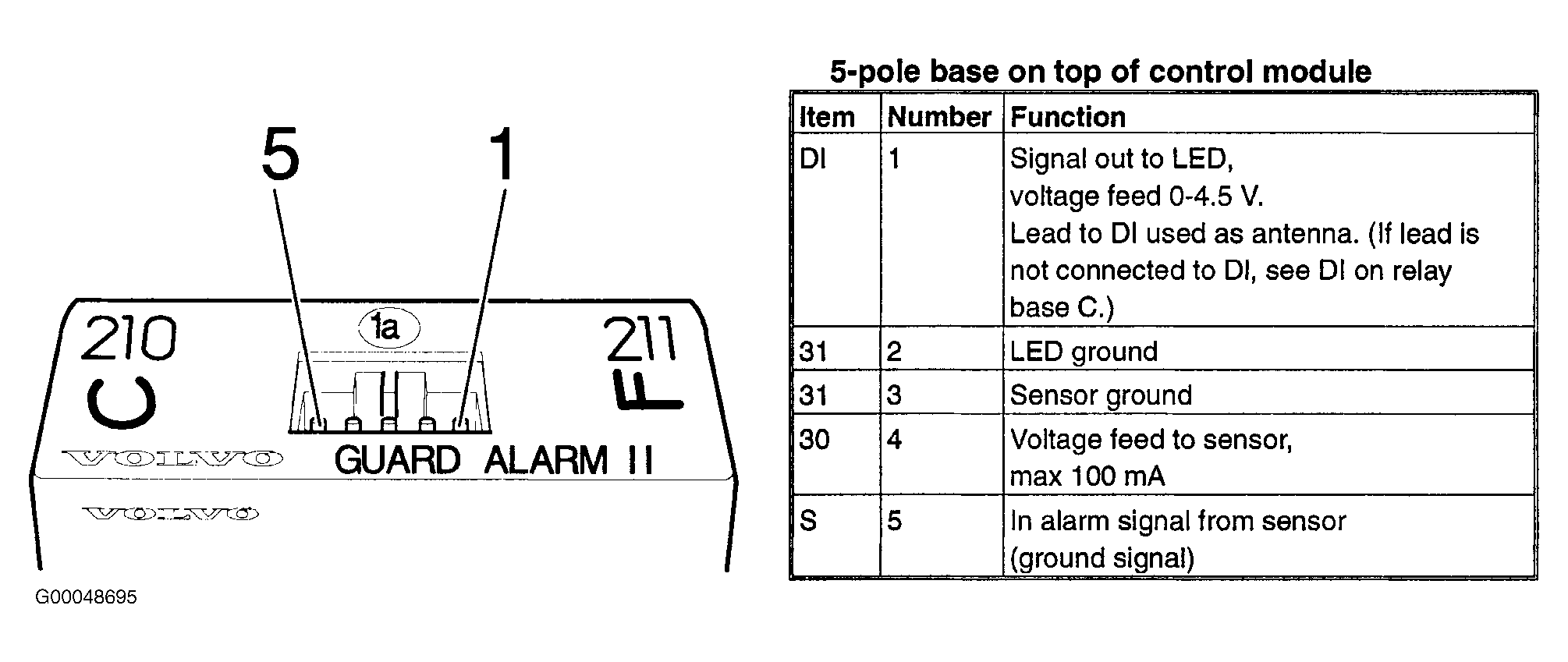

Fig 1: Guard Alarm II Control Module Connections (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

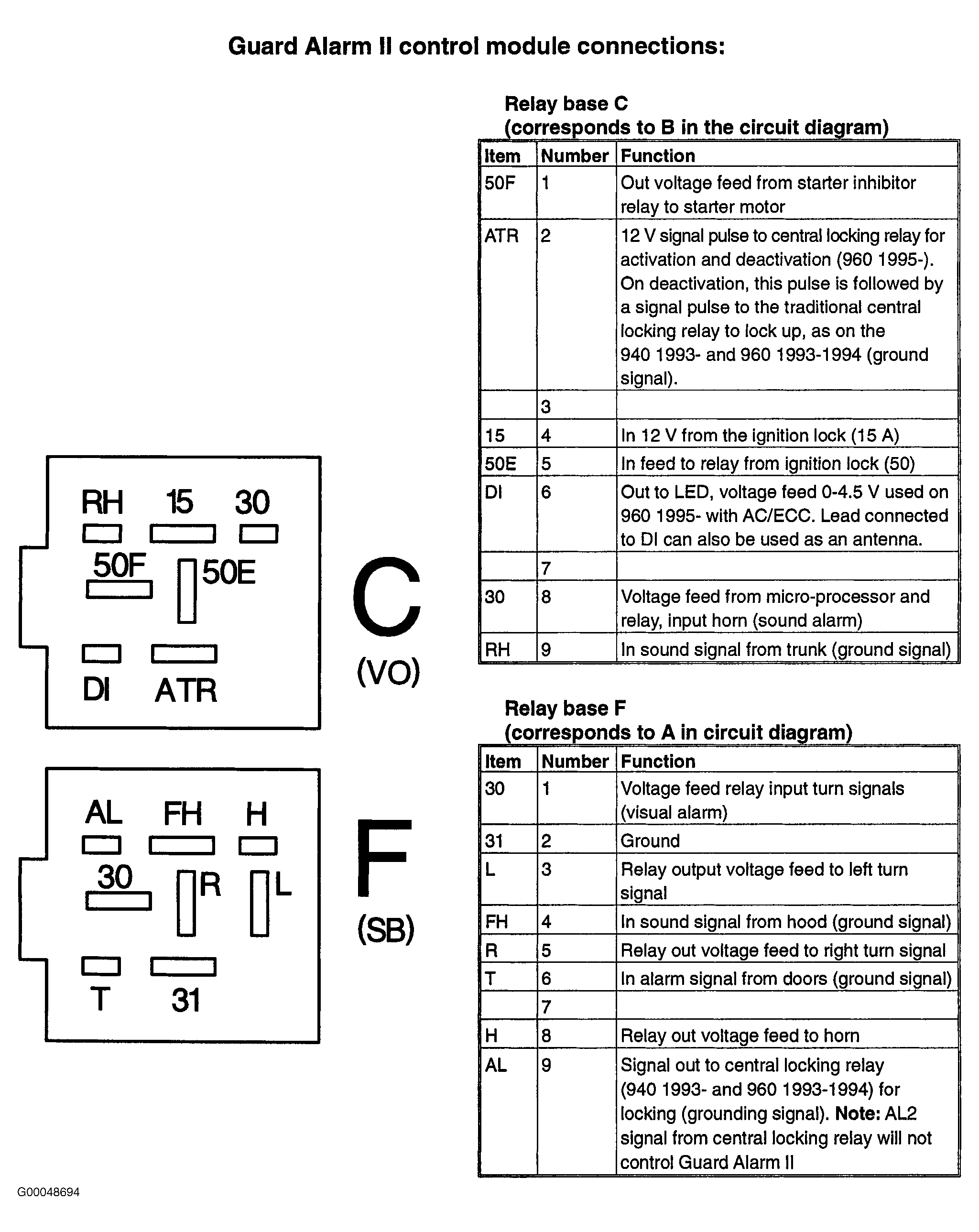

Fig 2: Guard Alarm II Control Module Connections (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
