Maintenance Information
›
Service Point Locations
Service Point Locations

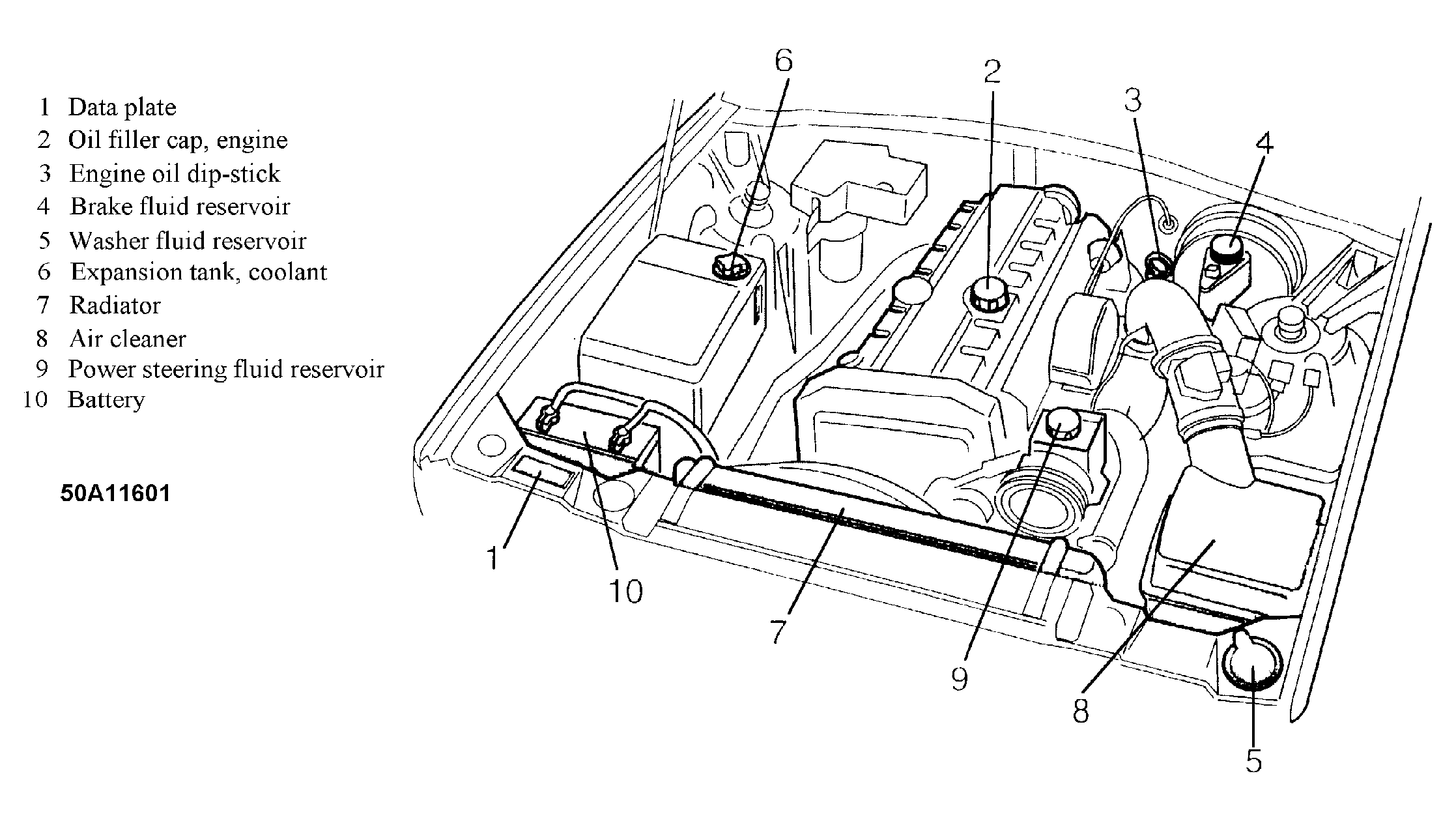

Fig 1: Service Point Locations (1992-94)
Courtesy of VOLVO CARS OF NORTH AMERICA.

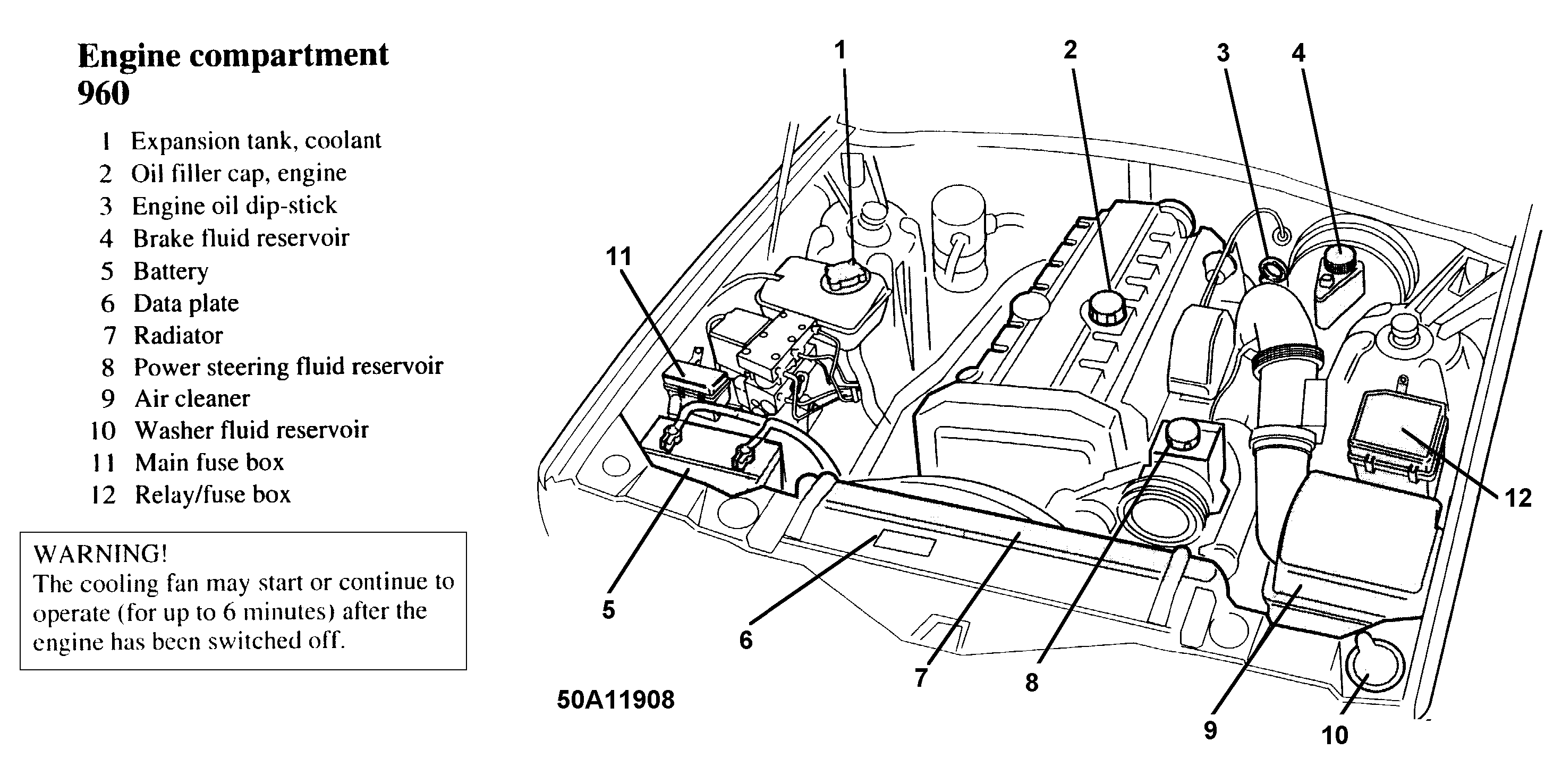

Fig 2: Service Point Locations (1995-96)
Courtesy of VOLVO CARS OF NORTH AMERICA.

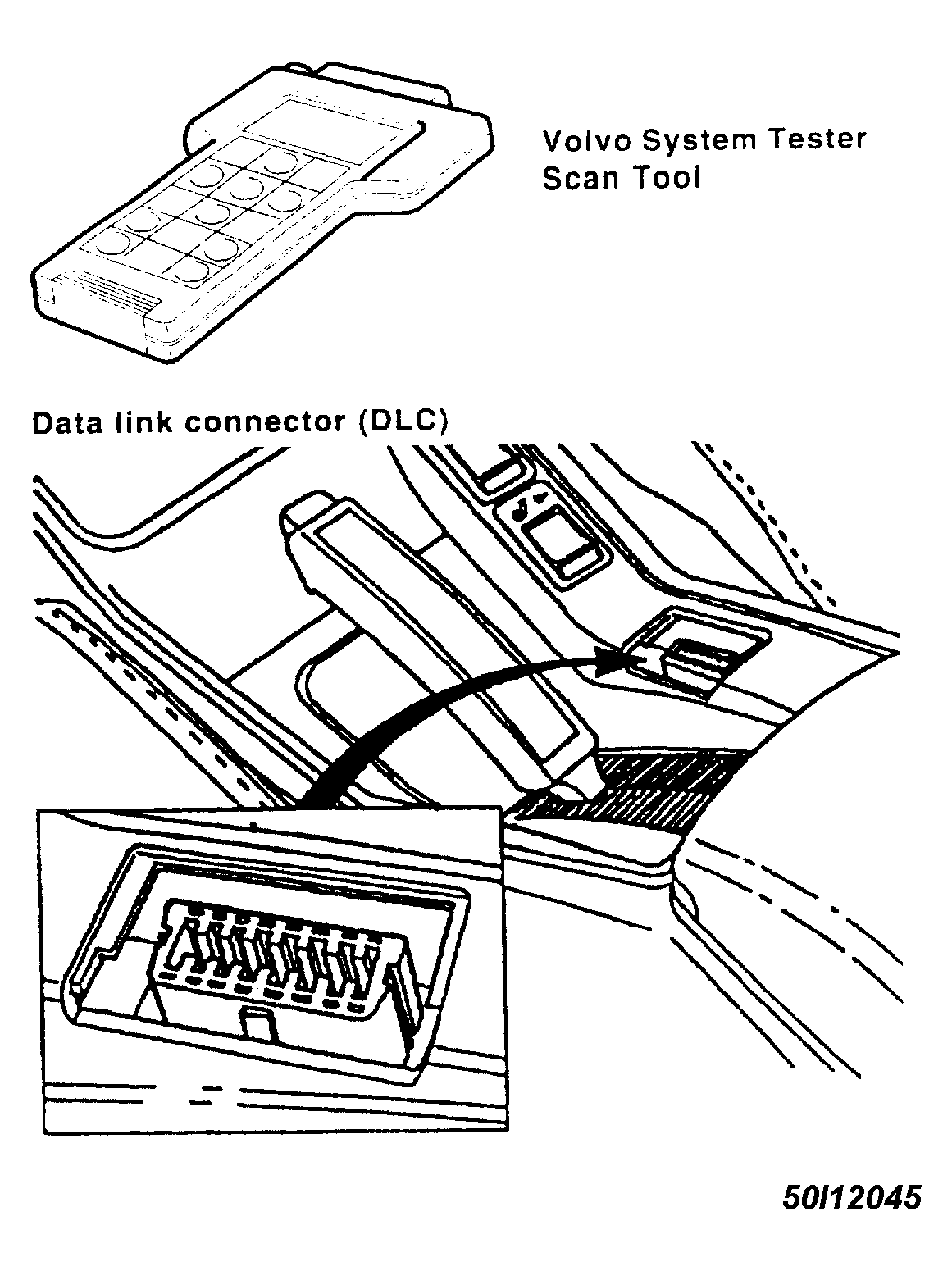

Fig 3: OBD II Diagnostic Link Connector Location (1996)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
