Control Module

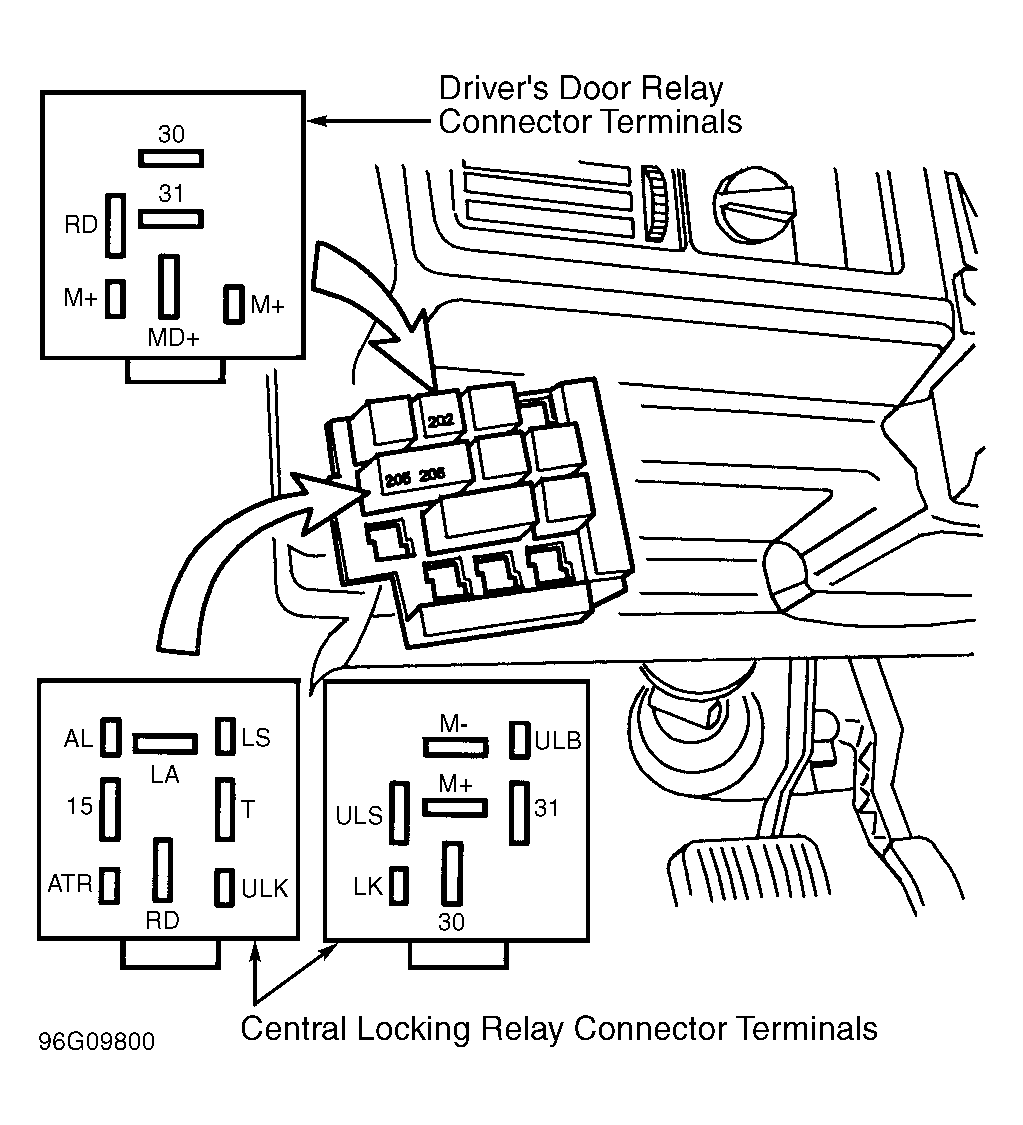

Central locking relay is actually a control module consisting of a microprocessor, two relay coils for voltage supply to the central locking motors and a relay coil for voltage supply to interior lighting. Central locking relay receives central lock unit control signals and activates vehicle's central locking system, interior lighting and alarm relay. See Fig 1 .
