Notes
Fuel Tank: Notes
NOTE:
For more information on fuel tank assembly, see
Fig 1
.

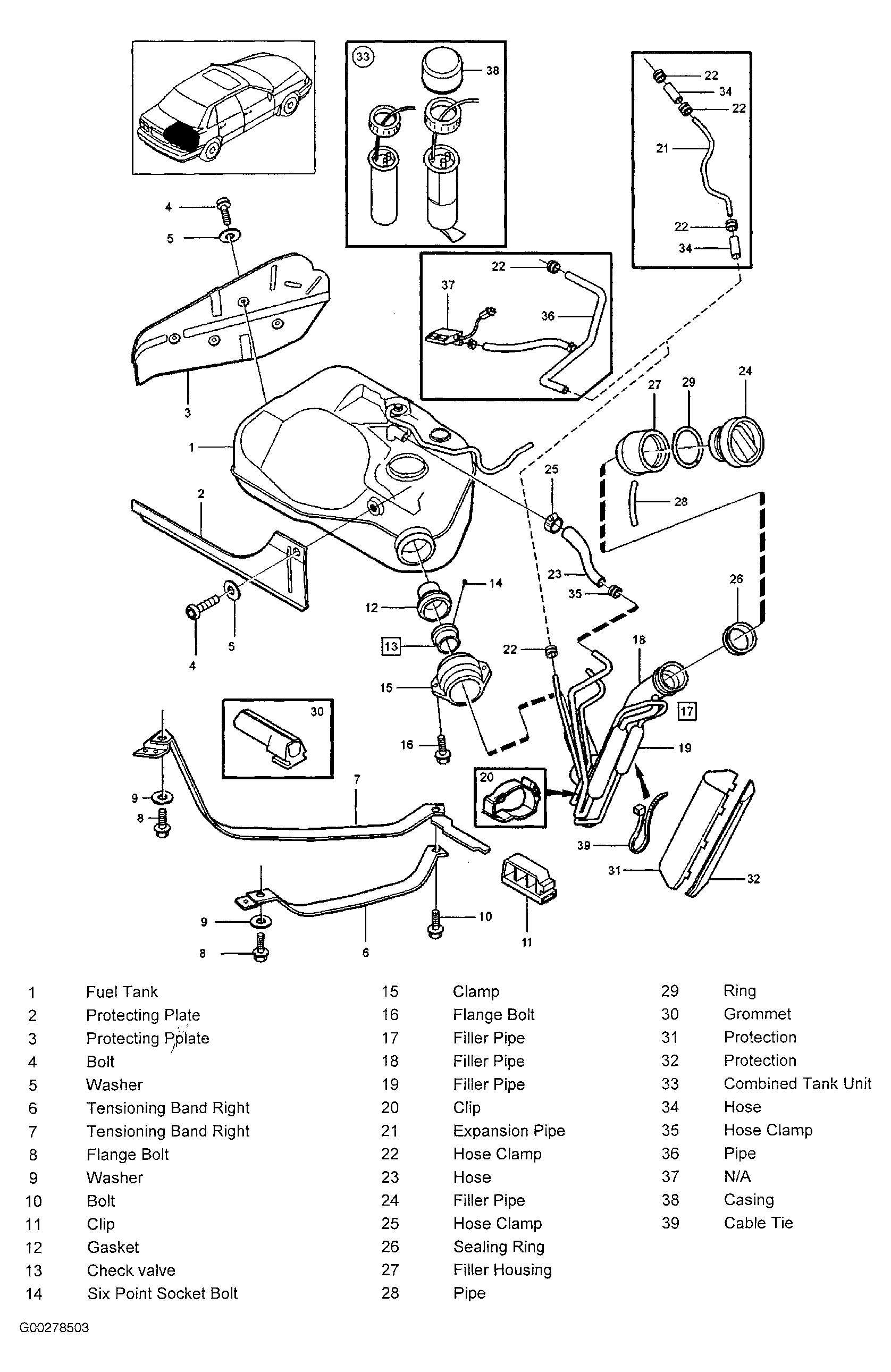

Fig 1: Exploded View Of Fuel Tank Assembly
Courtesy of VOLVO CARS OF NORTH AMERICA.
