Installing sensor

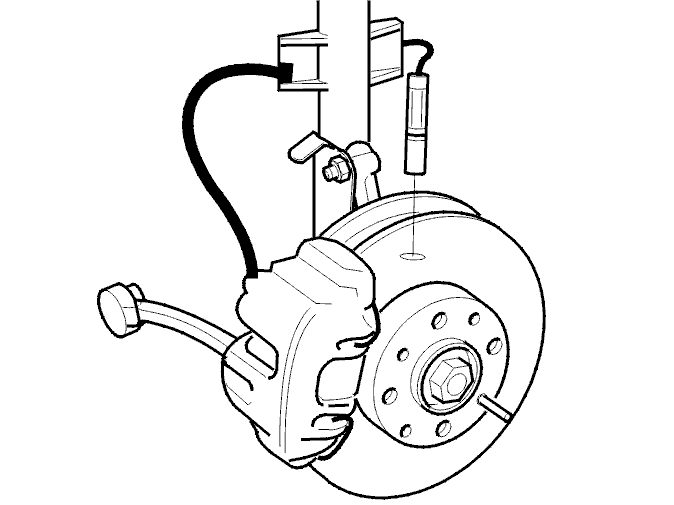

Fig 1: Identifying Wheel Sensor

GLL102207

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean sensor seat free of dust and rust so sensor ends up in right position relative to pulse wheel.
Brush any dirt off of pulse wheel. Use a soft brush.

Install sensor and tighten bolt to 10 Nm (7.5 ft.lb).
Install connector.
