Instrument cluster
›
Replacing Odometer
›
Install module
Install module

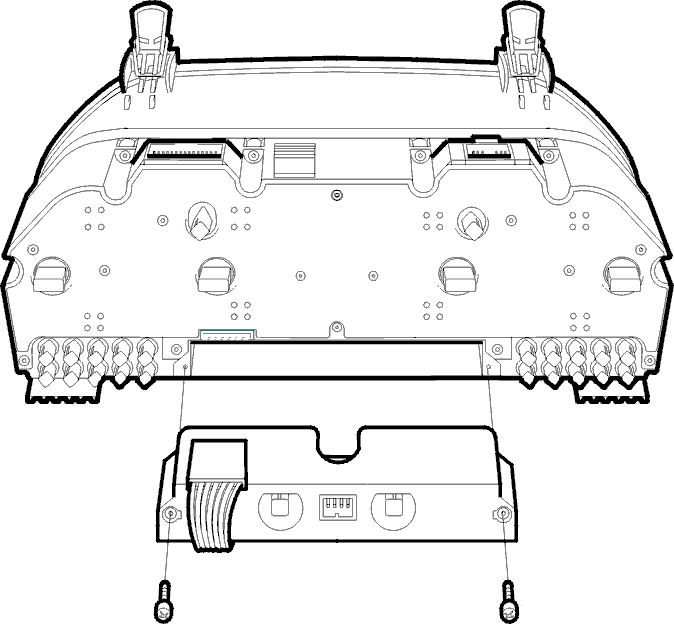

Fig 1: Identifying Time / Temperature / Trip Computer Module Screws & Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.
Insert time / temperature / trip computer module, screw it fast with the 2 screws and connect the connector.
Courtesy of VOLVO CARS OF NORTH AMERICA.
