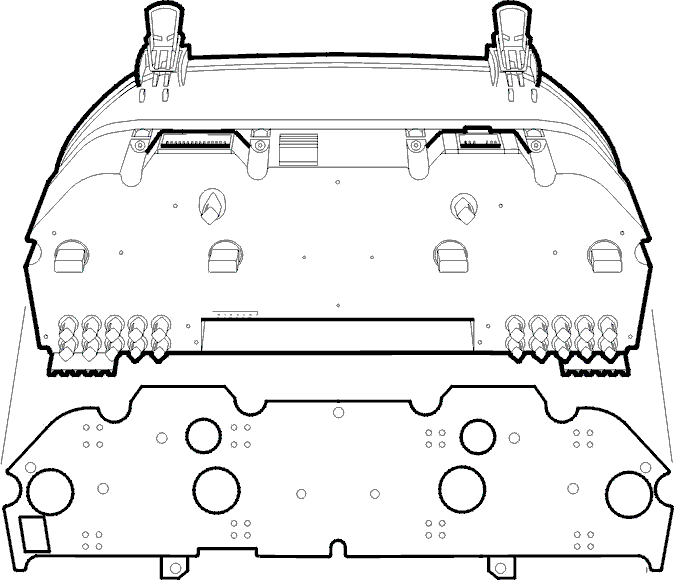

Install printed circuit board
- Connect odometer leads. Connector will only fit one way round.
- Install printed circuit board by pressing on bulb holders so contact pin goes in
- If a new printed circuit board is fitted then the bulbs shall be moved over from the old one.
CAUTION:
To seat circuit board on baseplate, press on cover only, not on circuit board.
