Installing sensor module
Avoid touching the sensor module terminal pins. There is a risk of static discharge which may damage the sensor module.
The battery must not be connected when the sensor module is removed or installed.

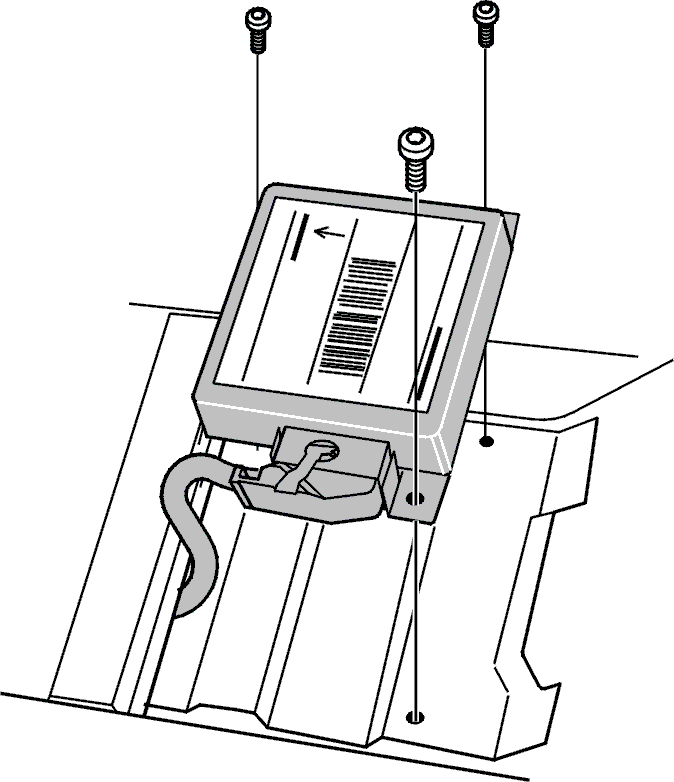

- Install the connector to the sensor module by following the directional arrow (1) in the illustration.
- Lock the sensor module connector in place by folding the striker plate (2) back until it has passed the catch.
This must be done before the sensor module is in place.
- Install the sensor module (3 x Torx 30).
Tightening torque for the sensor module: 10 Nm.
CAUTION:The screws have pressed sheet metal threads and must be positioned so that the existing thread is not damaged. Take care not to damage the thread when installing screws.
NOTE:Use the old screws! When using replacement screws, use a type approved for connection to ground.
CAUTION:It is important that the sensor module is securely mounted onto the bodywork if it is to operate properly.
The electrical ground connection is direct through the mounting screws. It is therefore very important that the mounting screws are in good contact with the bodywork.
