Home › Volvo › 1998 › S70 Base, Standard › Repair and Diagnosis › Electrical › Fuses & Circuit Breakers › Identification › Main Fuse Box › C70 Convertible

C70 Convertible

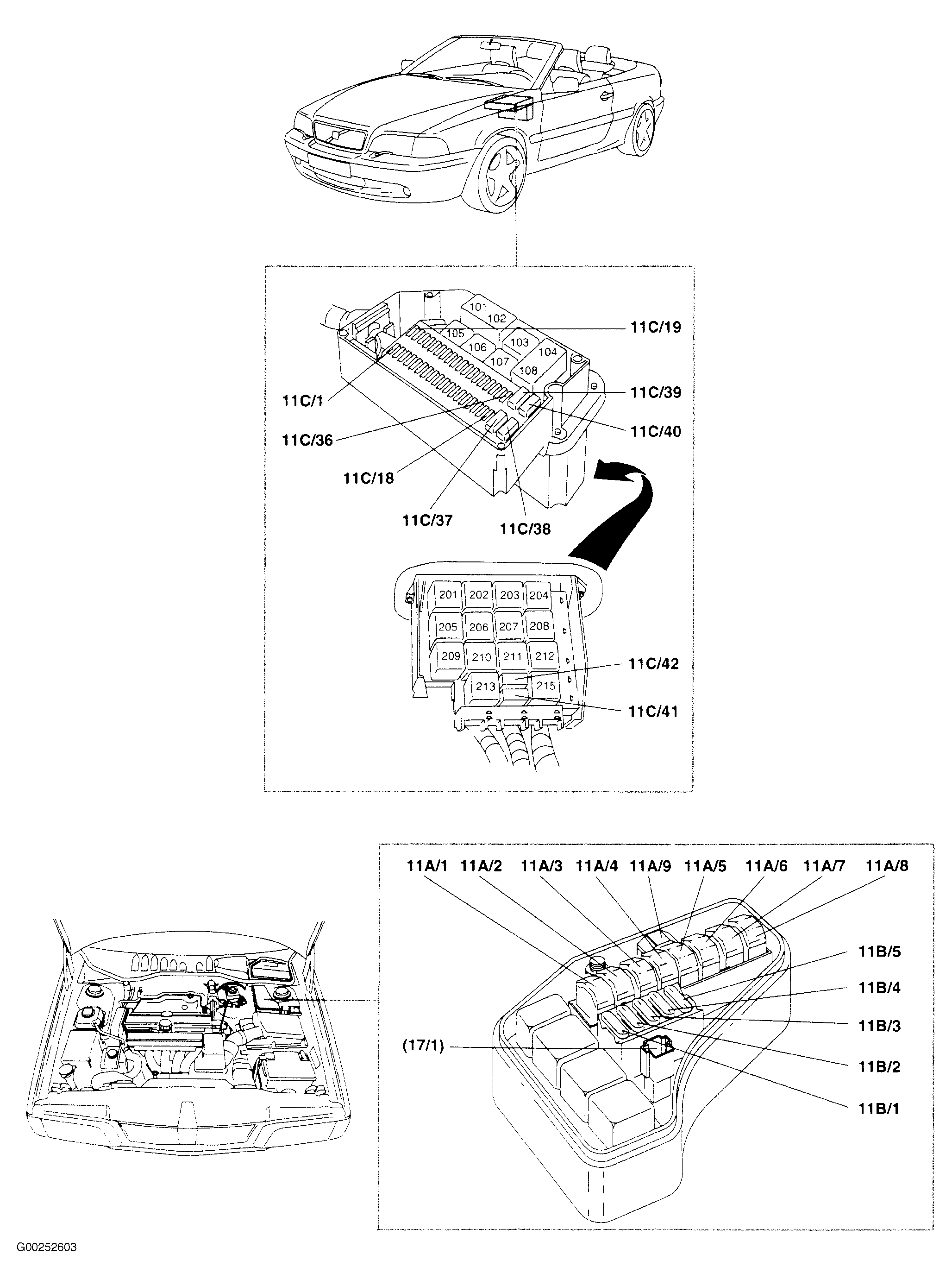

Fig 1: Locating Fuse Boxes & Fuses
G00252603Courtesy of VOLVO CARS OF NORTH AMERICA.

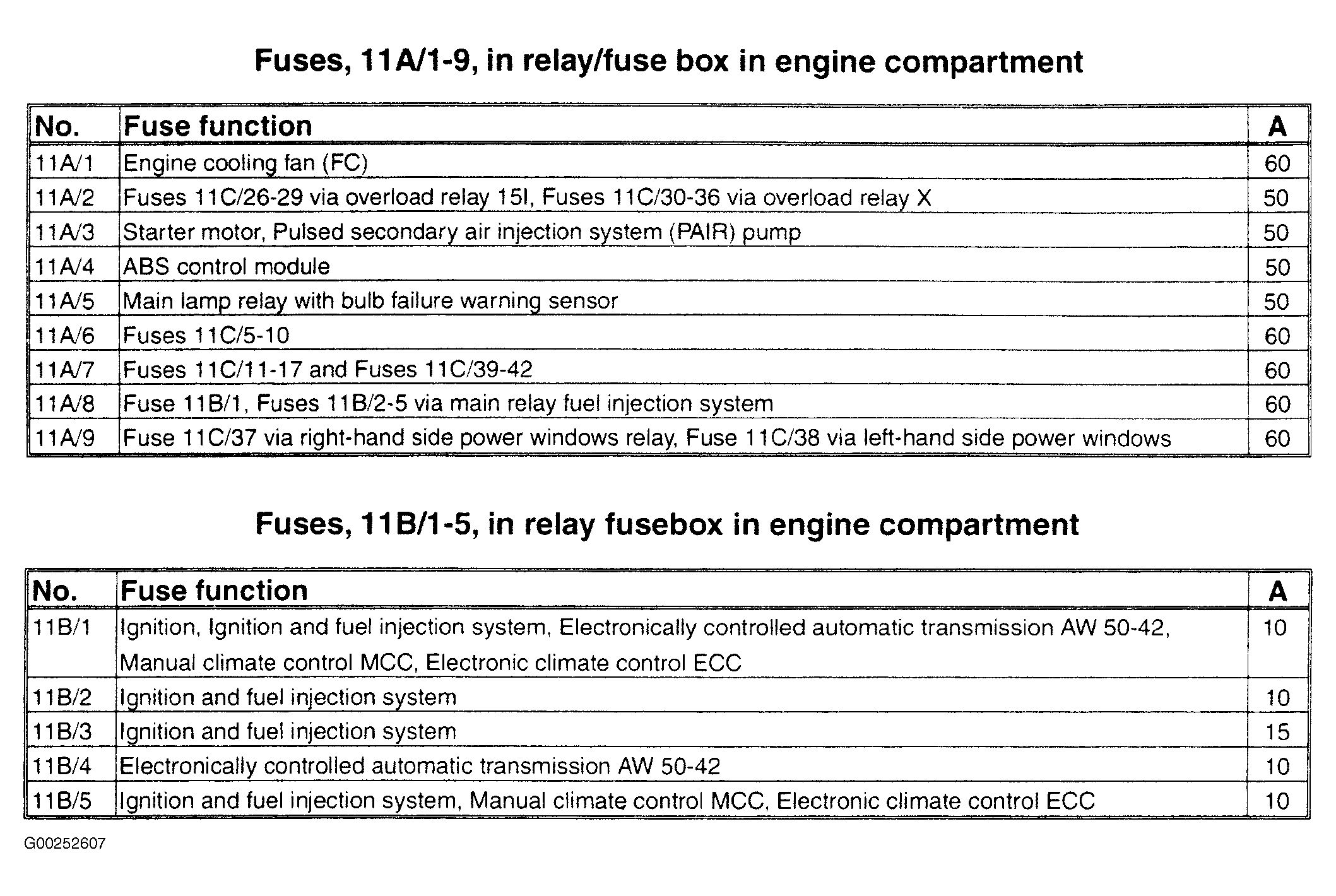

Fig 2: Fuses Legend (1 of 2)
G00252607Courtesy of VOLVO CARS OF NORTH AMERICA.

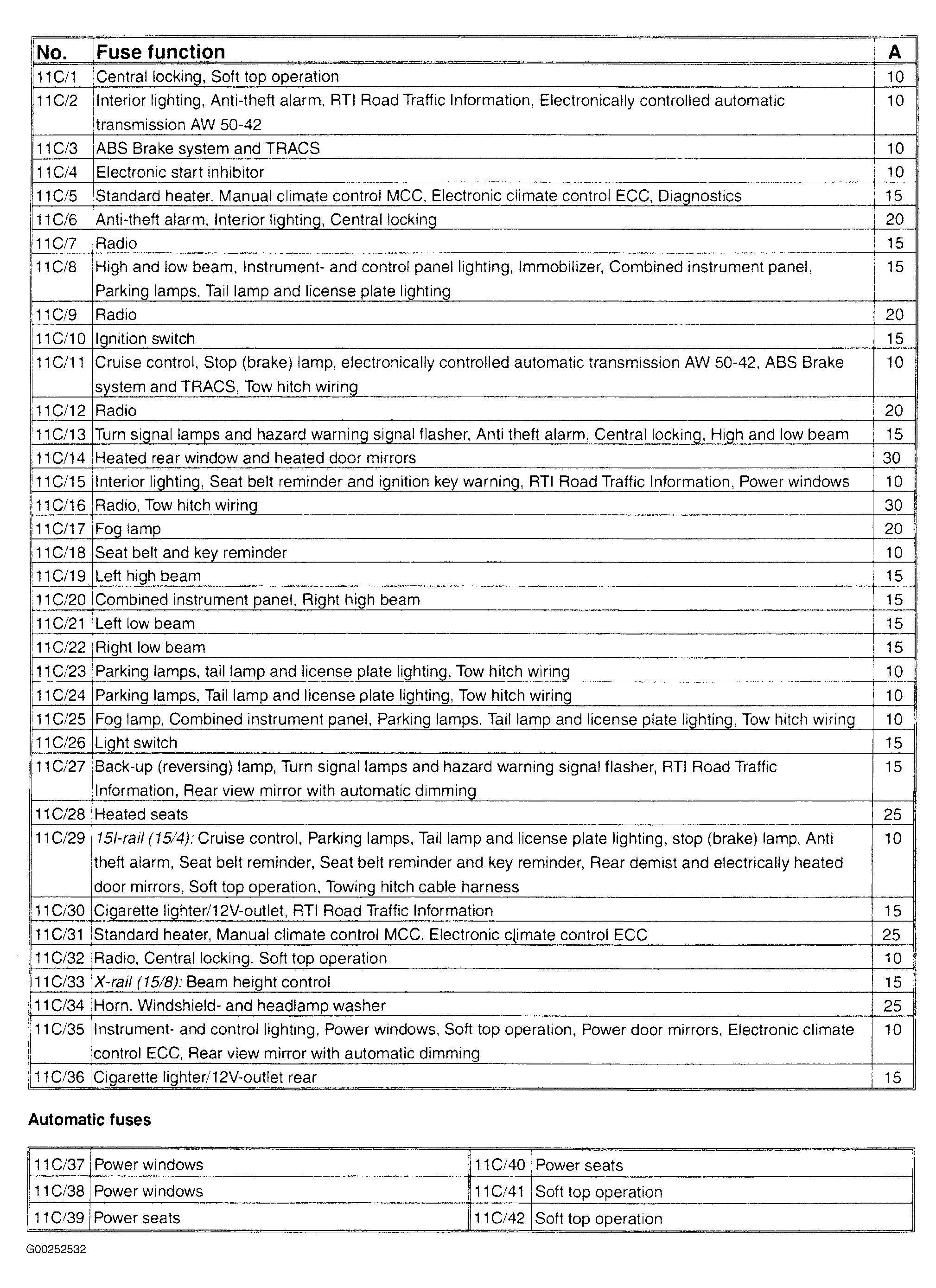

Fig 3: Fuses Legend (2 of 2)
G00252532Courtesy of VOLVO CARS OF NORTH AMERICA.
