Diagnostic Tests: Notes

CAUTION: DO NOT directly probe ABS ECU connector. Damage to connector may occur.

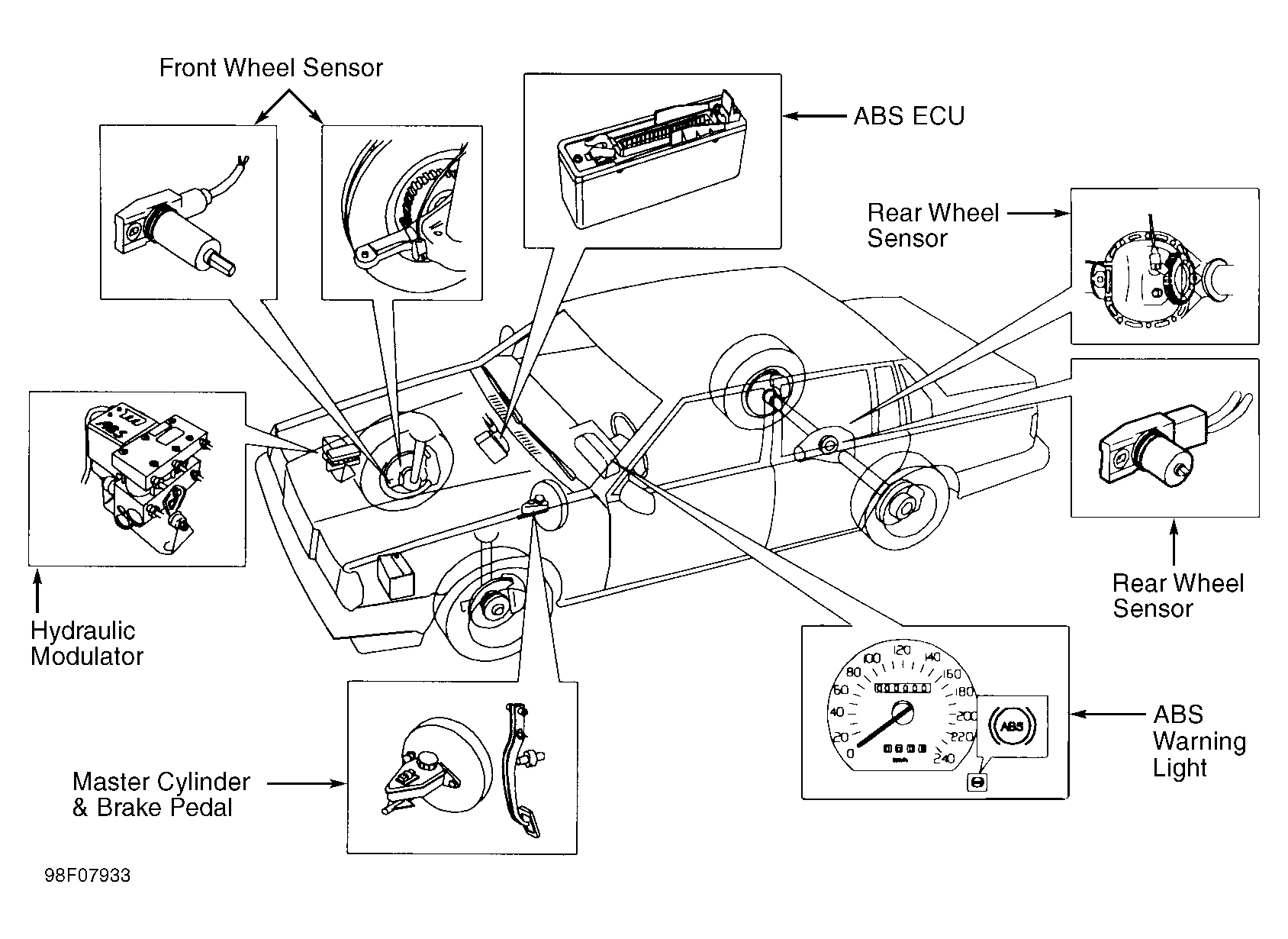

Many diagnostic procedures require voltage and resistance checks at ABS ECU connector. Use Breakout Box (981 33190) connected between ABS ECU and ABS ECU connector for voltage/resistance checks. ABS ECU is located under right side of instrument panel. See Figure .

NOTE: For wire circuit checking and identification, see WIRING DIAGRAMS .
