Component Locations

COMPONENT IDENTIFICATION

Component Number Component Name
C/EA Engine Cooling Fan Connector
2/11 Engine Cooling Fan Relay
2/22 A/C Relay
2/32 Main Relay, Fuel System
3/57 Climate Control Connectors
4/30 A/C Control Head
6/29 Engine Cooling Fan
7/8 A/C Pressure Sensor
7/53 A/C Pressostat (Pressure Sensor)
8/3 A/C Solenoid Switch
11C Central Electrical Unit
24/2 Firewall Cable Harness
24/15 10-Pin Engine Compartment Harness
24/43 8-Pin Engine Compartment Harness
24/63 14-Pin Climate Control Harness/Firewall Harness
31/55 Engine Cooling Fan Ground Terminal
() For component locations, see Fig 1 .

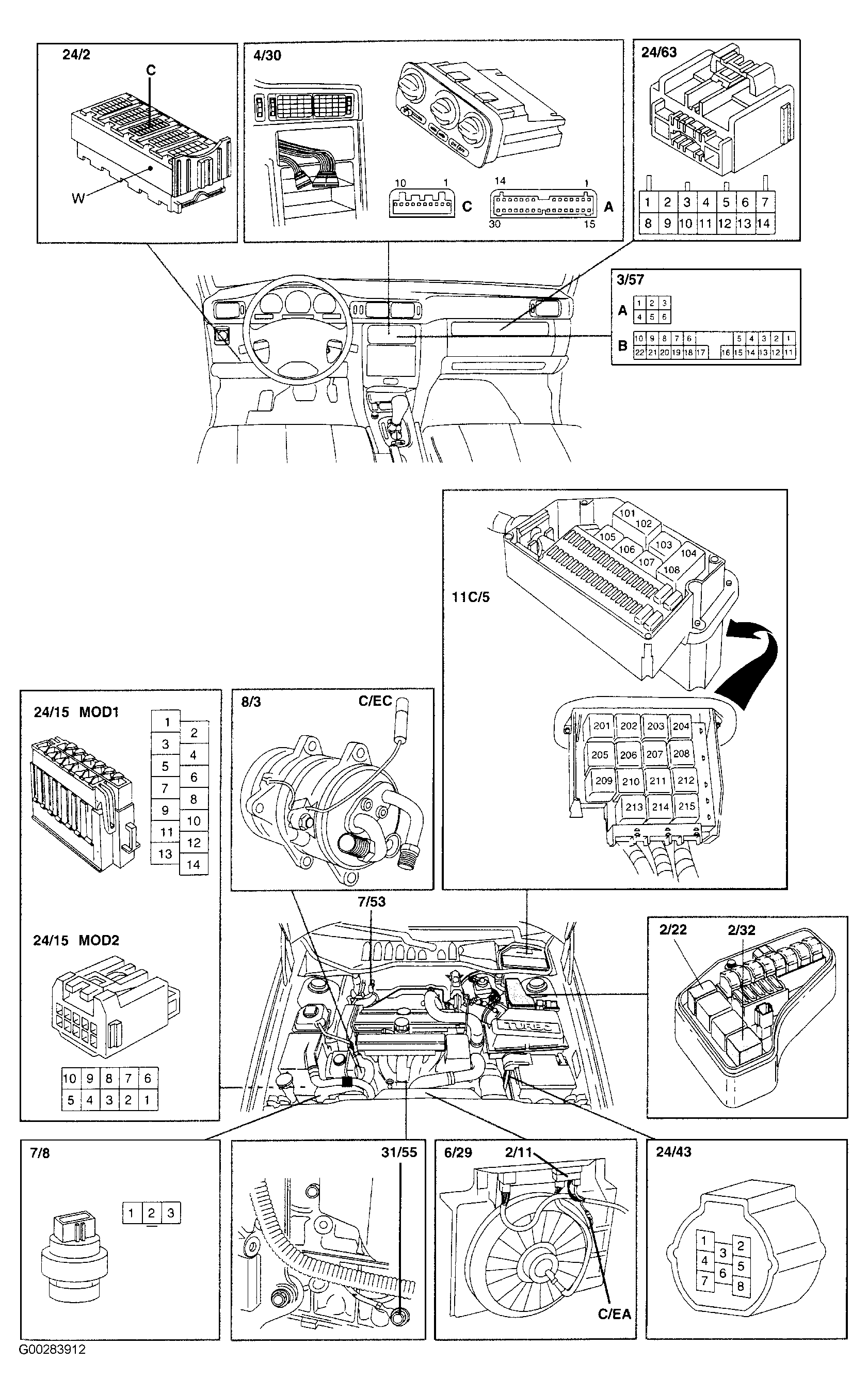

Fig 1: Locating Electric Cooling Fan Components
G00283912Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Locating Engine Coolant Temperature (ECT) Sensor On Thermostat Housing
G98J02107
Fig 3: Identifying Engine Cooling Fan Relay Connectors
G95C34472
