Removal & Installation

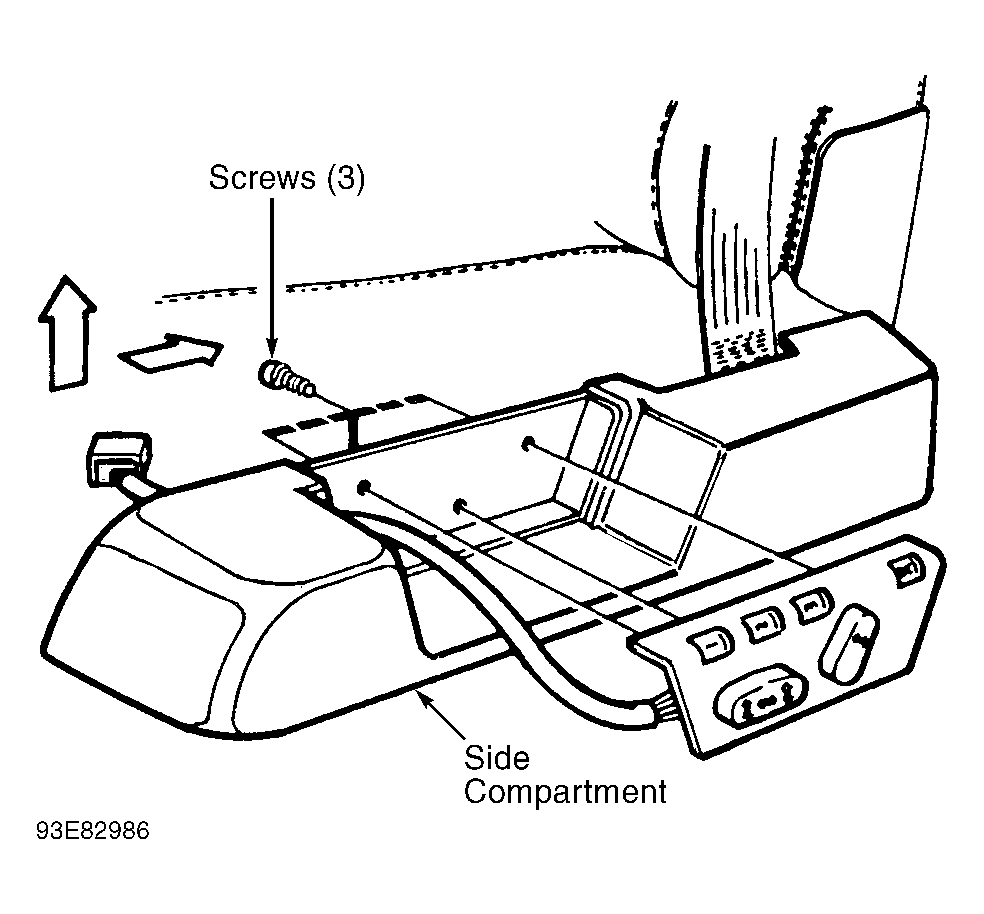

Disconnect negative battery cable. Disconnect Green connector from under-seat control module. Remove side compartment from seat by raising front end and pushing back. Remove 3 screws at rear of side compartment. See Fig 1 . Remove seat control module. To install, reverse removal procedure.
