Removing the Front Panel

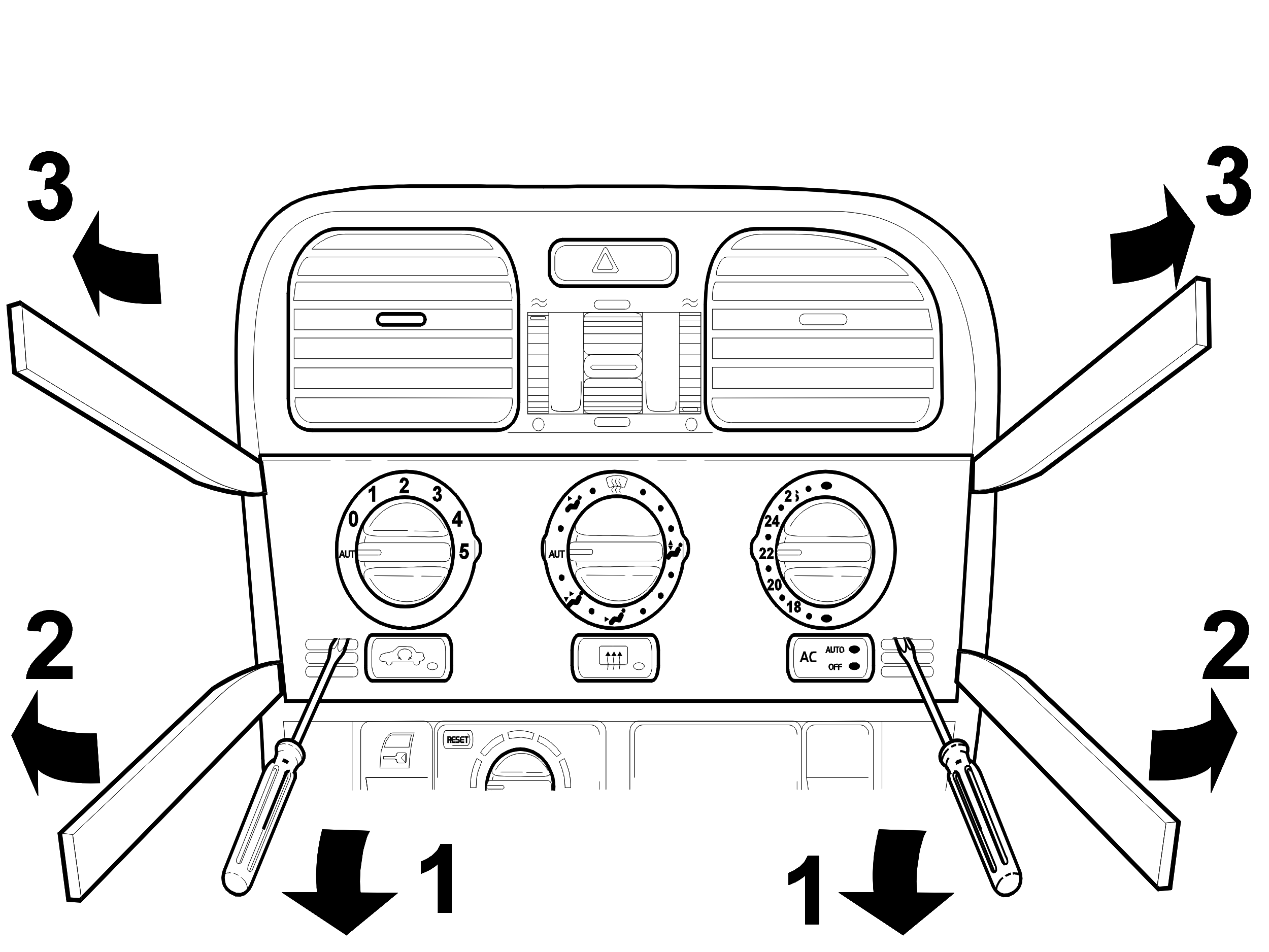

Fig 1: Removing Control Panel For Heater System
GLL117133Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Press up the catches behind the holes in the front panel.
  2. At the same time pull the lower section of the panel towards you. (Use a weatherstrip tool.)
  3. Press the whole panel upwards slightly. Pull it towards you from the top. (The controls remain on the heater control panel.).
