Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1 .

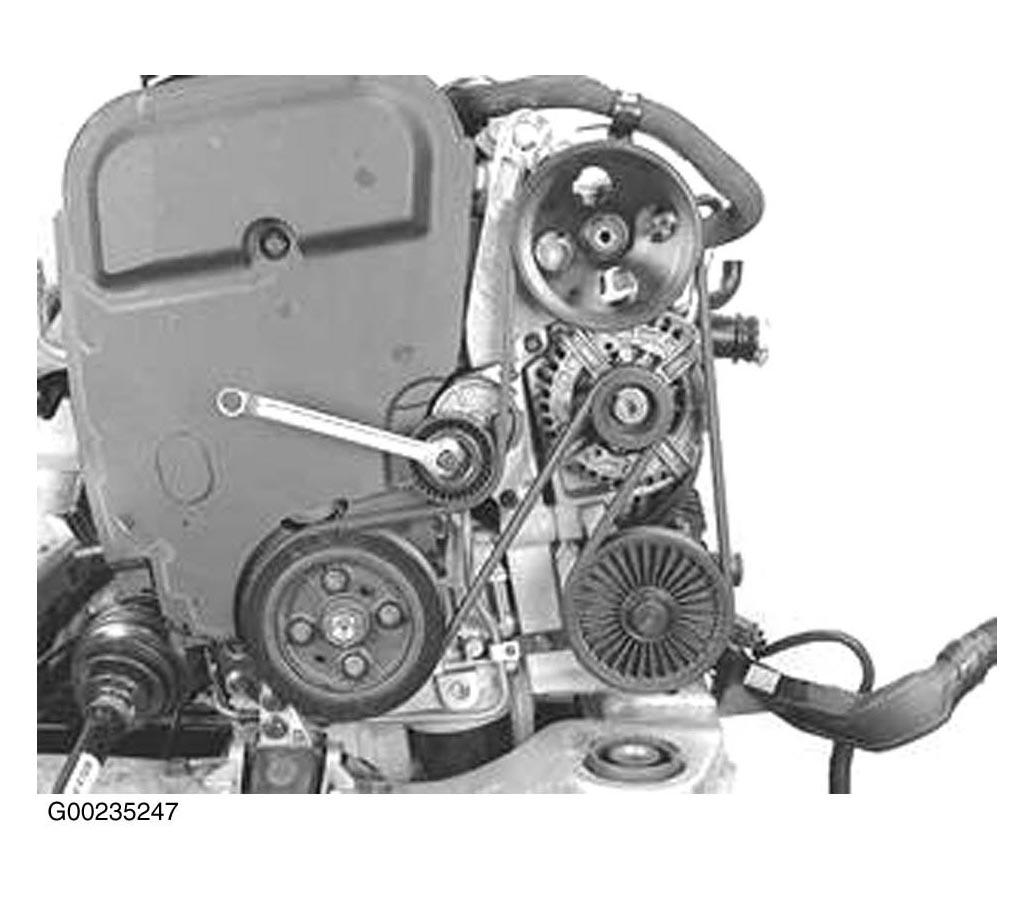

Fig 1: Identifying Drive Belt Routing
G00235247Courtesy of VOLVO CARS OF NORTH AMERICA.
