Installing engine control module (ECM)

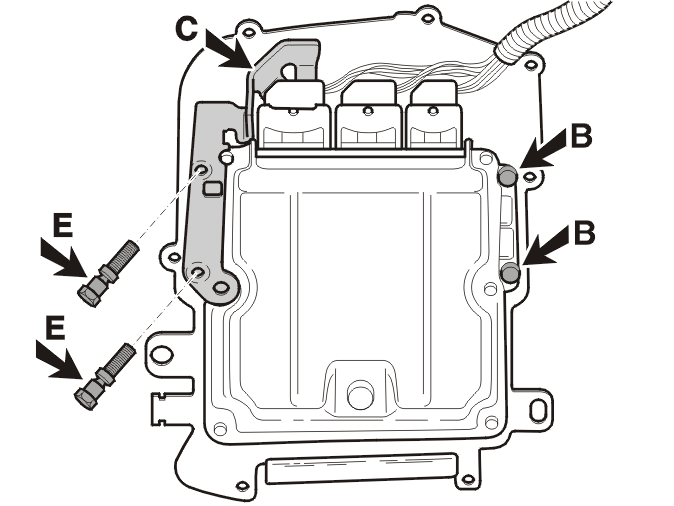

Fig 1: Identifying Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Plug in the connectors and check so that they are connected correctly.
• Install the engine control module and install the cable clamp.
• Install both screws (B) and tighten with fingers.
• Install the safety brace (C) with 2 new shear screws, tighten with fingers.
• Tighten the screws (B) with 10 Nm  and the shear screws (2 pcs.) until the screw heads break off.
• Check that the casing's seal is positioned correctly and is intact.
• Install the casing and tighten the screws.
