Rear Adjustment

CAUTION: Do not turn the adjustment scale off the scale because this could damage the control ring.

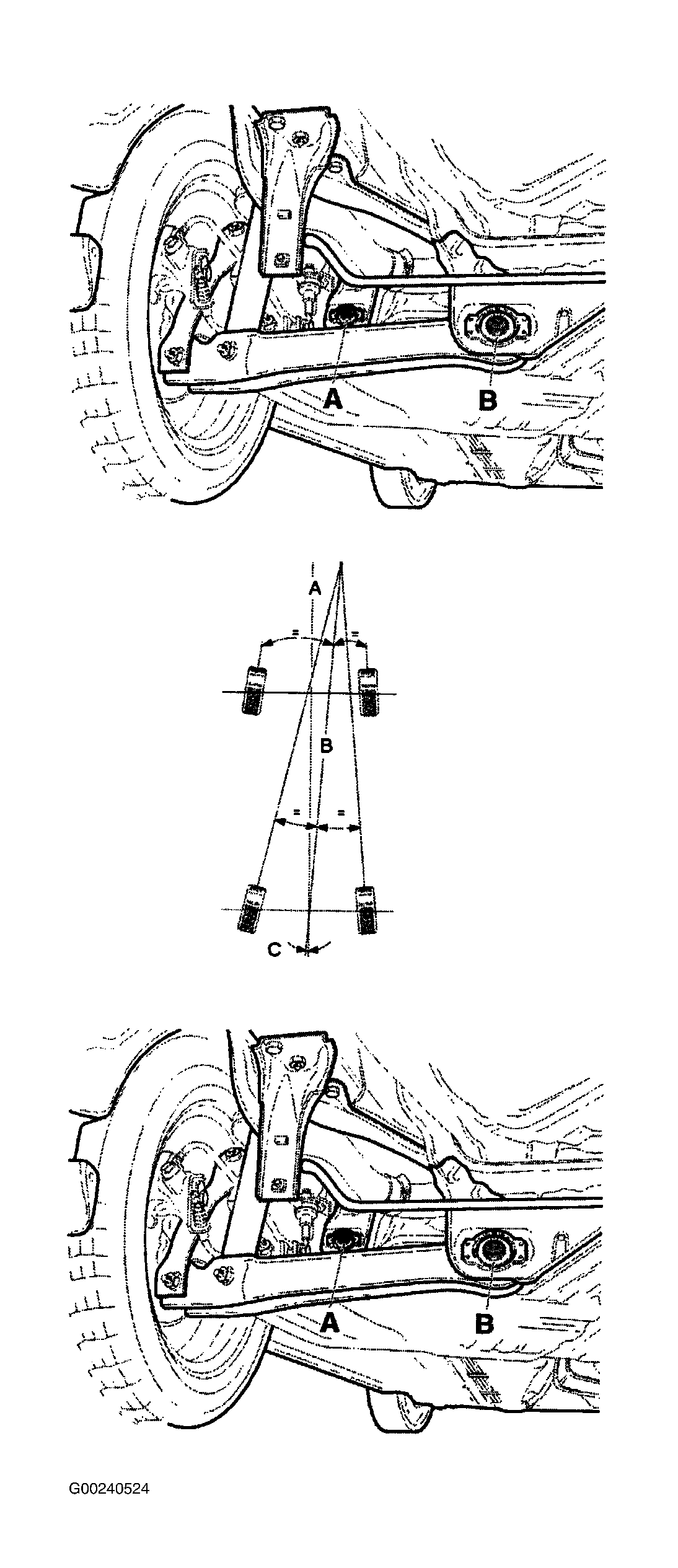

Loosen the nut (A). See Figure. Turn the adjustment screw until the correct toe-in is obtained. Tighten the nut to specification. See TORQUE SPECIFICATIONS . Check the toe-in again. Check the thrust angle.
