Steering Wheel Lock: Installation

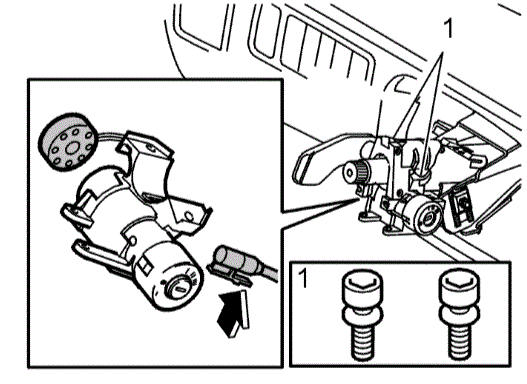

Fig 1: Installing Steering Wheel Lock

Courtesy of VOLVO CARS OF NORTH AMERICA

• Position the new steering wheel lock
• Install new security screws (1).

NOTE: Do not forget to connect the disassembled connector.

CAUTION: Ensure that the boot for the windshield wiper lever is in place

CAUTION: Ensure that no wiring is trapped when the steering column covers are installed.

• The holder for the steering lock lighting. Use a new bulb
• The slip ring
• The lever for the windshield wipers
• The lever for the turn signal lamps
• The lower cover for the steering column. Use a Torx TX 25 tool
• The upper cover for the steering column. Use long Torx TX 15 tool
• The steering wheel.
