Fuel Level Sensor

Access fuel level sensor connectors. See FUEL LEVEL SENSOR under REMOVAL & INSTALLATION. See Fig 1 . Check sensor resistance using DVOM. See appropriate FUEL LEVEL SENSOR SPECIFICATIONS table. Replace sensor if necessary.

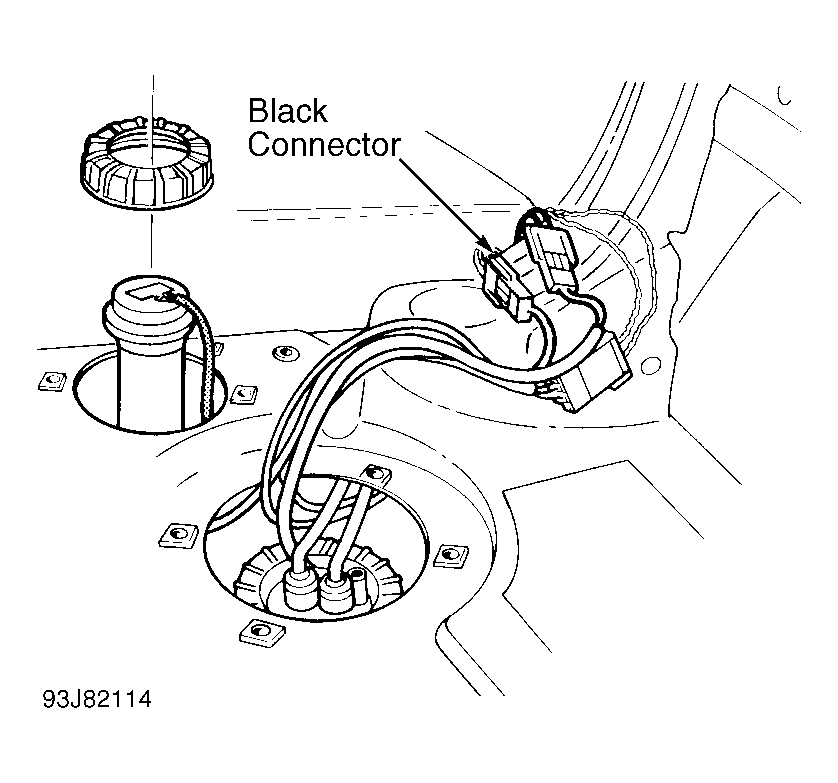

Fig 1: Locating Fuel Level Sensor Connector In Trunk

Courtesy of VOLVO CARS OF NORTH AMERICA.

FUEL LEVEL SENSOR SPECIFICATIONS (2WD MODELS)

Position	Resistance (Ohms)
Empty	322-330
Full	8-12

FUEL LEVEL SENSORS SPECIFICATIONS (AWD MODELS)

Position	Resistance (Ohms)
Empty	322.5-332.5
Full	5-15
