Steering Wheel Lock: Removal
- Steering wheel.
- Upper cover for the steering column. Use long Torx TX 15 tool
- Lower cover for the steering column. Use a Torx TX 25 tool.
CAUTION:
Be careful not to damage the contact reel and cable harness during work

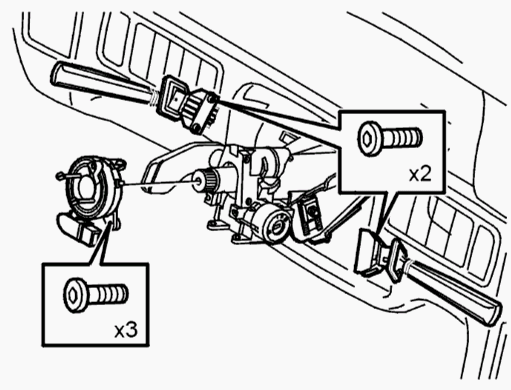

- Lever for the turn signal lamps. Allow the lever to hang from the cable harness
- Lever for the windshield wipers. Disconnect one of the connectors. Leave the lever hanging from the other connector
- Slip ring
- Holder for the steering lock lighting
WARNING:
Use protective goggles.
- Pre-drill the screw heads (1) for the mounting. Use a 3 mm drill bit (A)
- Drill out the screw heads (1). Use a 8 mm drill bit (B)
- Remove the lock
