Removing Components

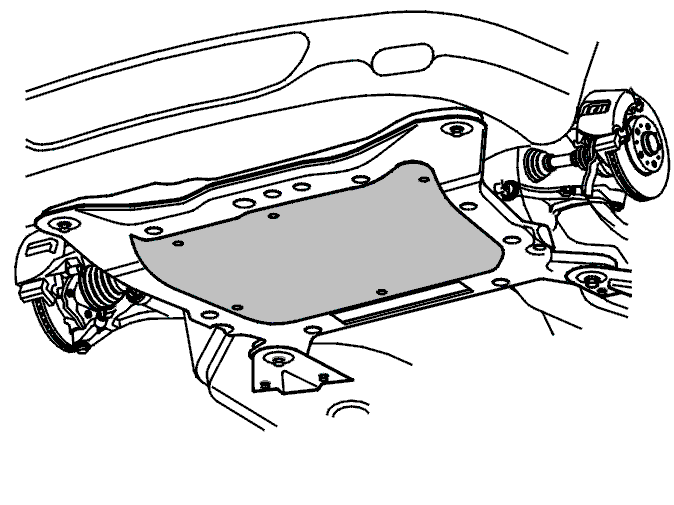

Fig 1: Identifying Splash Guard Under Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the front wheels
• the splash guard under the engine.

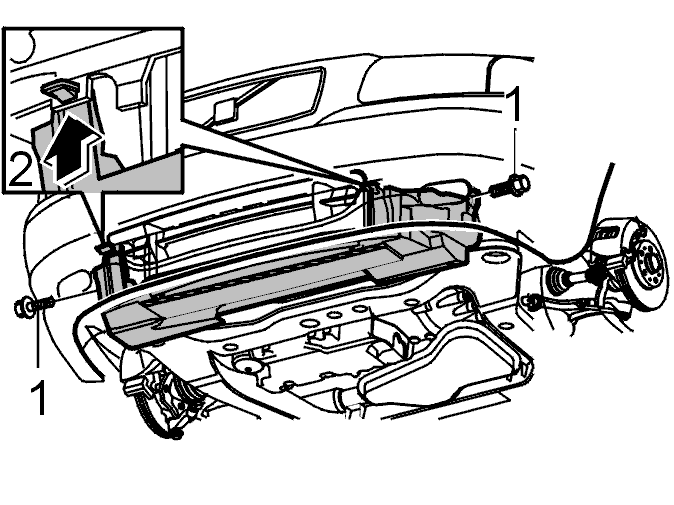

Fig 2: Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the air baffle.

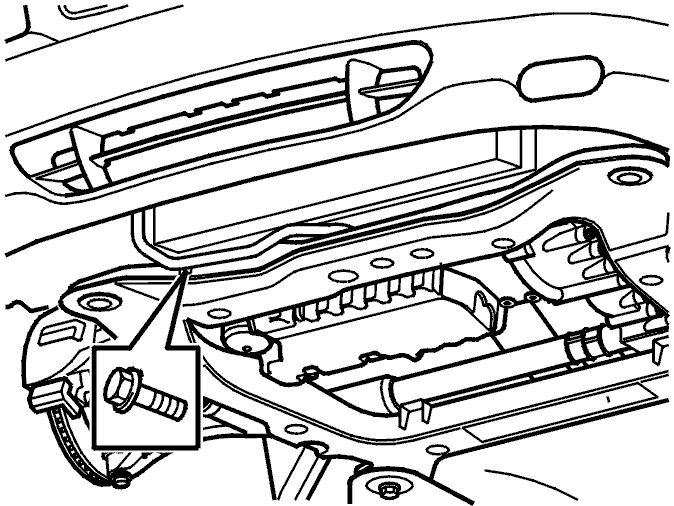

Fig 3: Identifying Screw For Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the screw for the cable duct
• the control module box evacuation pipe mounting from the sub-frame.
