Connecting Breakout Box To Engine Control Module
›
Engine Electrical
›
Connecting the breakout box, engine control module (ECM)
›
Engine control module (ECM), replacing
›
Removal
›
Removing engine control module (ECM)
Removing engine control module (ECM)

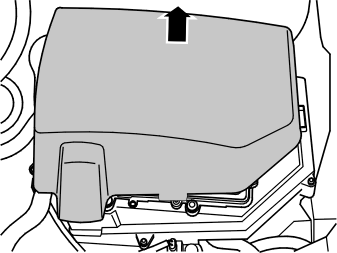

Fig 1: Lifting Up Cover For Engine Control Module
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the cover by lifting it straight up.

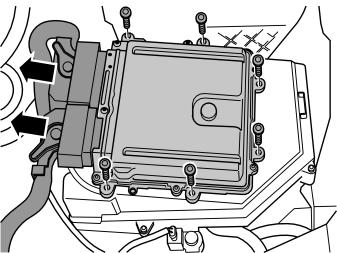

Fig 2: Identifying Screws And Connectors For Engine Control Module
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the connectors, x2
the 6 screws
engine control module (ECM)
