Component Locations

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Volvo V70, 2000 Volvo S70, 2000 Volvo C70, 1999 Volvo V70, and 1999 Volvo S70. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for SRS component location. See Fig 1 or Fig 2 .

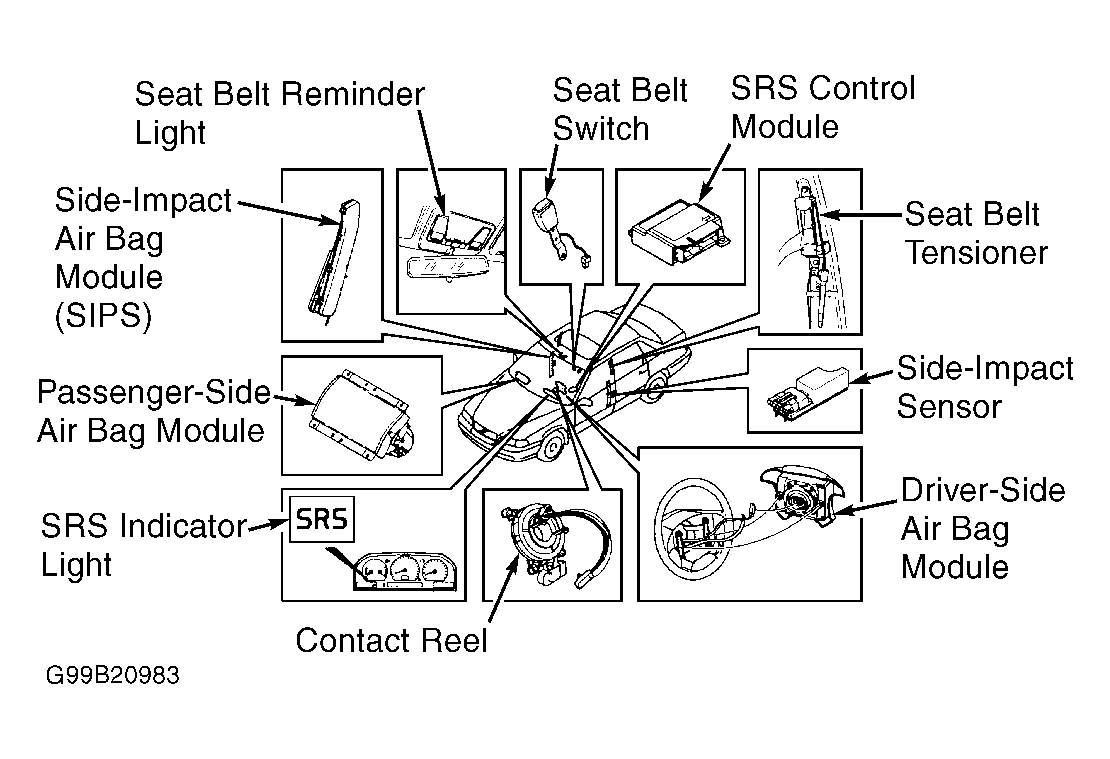

Fig 1: Locating SRS Components (S70 & V70 Models)

Courtesy of VOLVO

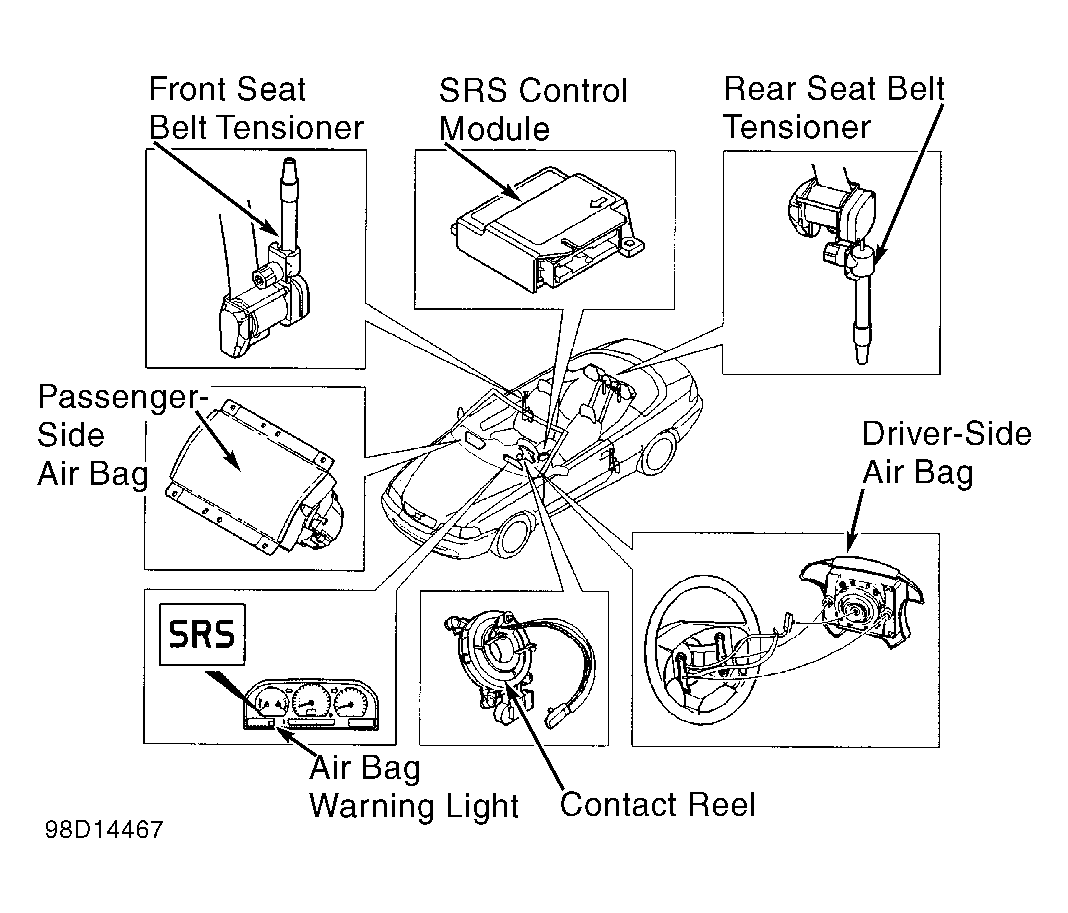

Fig 2: Locating SRS Components (C70 Convertible Model Shown; C70 Coupe Is Similar)

Courtesy of VOLVO
