Self-Diagnostic System: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Volvo V70, 2000 Volvo S70, 2000 Volvo C70, 1999 Volvo V70, and 1999 Volvo S70. However, it is still accessible from the selected car via links, so may be relevant.

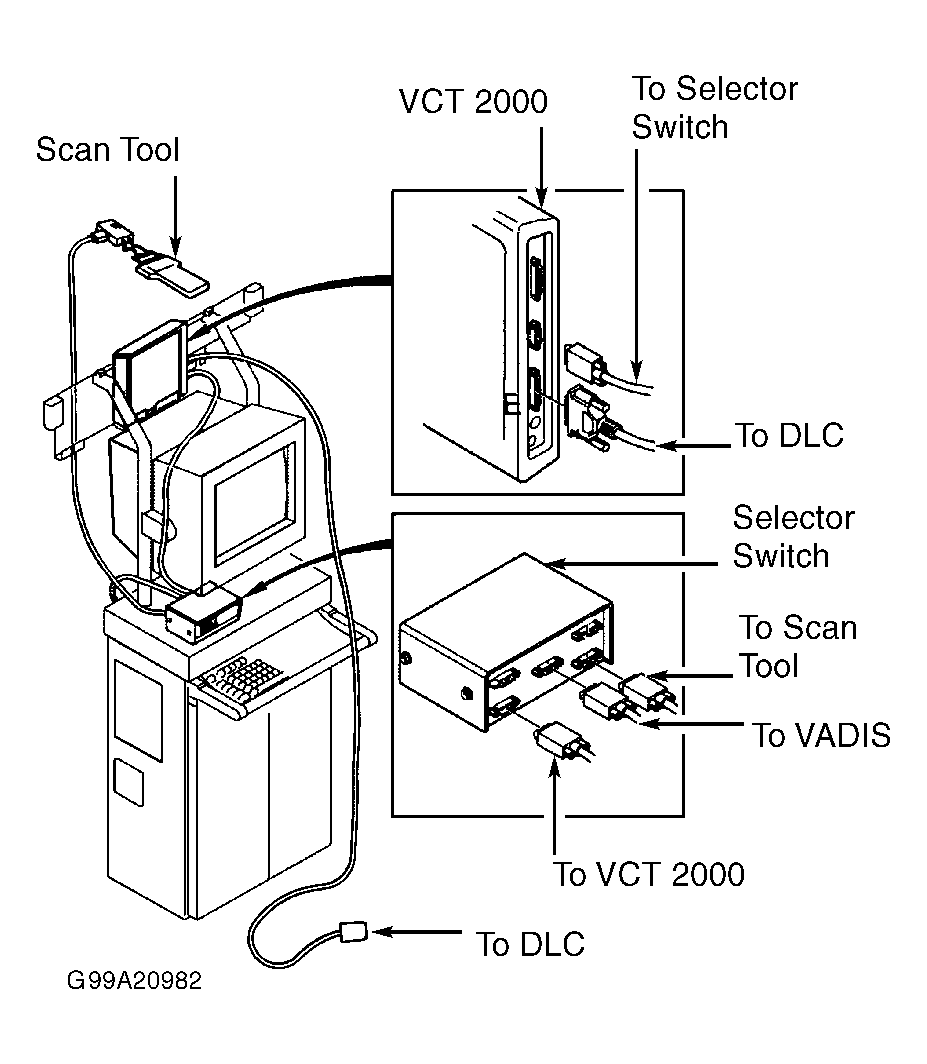

SRS control module has on board diagnostic (OBD) system to provide self diagnosis and other information. Diagnostic Trouble Codes (DTCs) can be read using VADIS and scan tool connected to the Data Link Connector (DLC). See Figure. When ignition is on, SRS OBD system performs an initial self test. After self-test is completed, SRS OBD goes into monitoring mode. The system checks for internal faults in all SRS components and in output for SRS warning light.

NOTE: If SRS warning light is on, there is a fault in the SRS system.
