ALTERNATOR CHARGING PROBLEMS

ALTERNATOR CHARGING PROBLEMS

TECHNICAL SERVICE BULLETIN

Reference Number(s): RTJ 16340, Date of Issue:  June 15, 2007
VOLVO: 1999-2000 S80; 2000-2002 V70; 2001-2002 S60, V70
GROUP: 3202
RELATED REF. NUMBER(S): US16340.1.1 en-GB

ATTACHMENT

ATTACHMENT DESCRIPTION

File Name File Size
Attachment TJ 16340.doc.pdf 0.1031 MB

VEHICLE TYPE

VEHICLE TYPE INFORMATION

Type Eng Eng Desc Sales Body Gear Steer Model Year Plant Chassis range Struc Week Range
184             1999 - 2000   0000001 - 0296999 199815 - 200234
285             2000 - 2002   0000001 - 0285999 199943 - 200234
295             2001 - 2002   0000001 - 0094999 200005 - 200234
384             2001 - 2002   0000001 - 0234999 200032 - 200234

CSC

CODE DESCRIPTION - CSC

Code Description
LO Alternator and charge regulator/Power supply problems

DTC

DTC DESCRIPTION

Control Module Code Fault Type
ECM 801D Permanent
ECM 801D Intermittent
CEM 0C04 Permanent
CEM 0C04 Intermittent
CEM 0C05 Permanent
CEM 0C05 Intermittent
ABS 0077 Intermittent
ABS 0074 Intermittent
ECM 91E0 Permanent
ECM 91E0 Intermittent
CEM 0C01 Intermittent
CEM 0C01 Intermittent
CEM 0C02 Intermittent
CEM 0C02 Permanent
ABS 0077 Permanent
ABS 0074 Permanent

Text

-

DESCRIPTION

Analysis of damaged alternators shows that the regulator may get damaged due to extreme weather conditions with high temperature and high humidity. The regulator may fail in two phases.

Service

See attachment.

SERVICE PROCEDURE ATTACHMENT

DESCRIPTION

Analysis of damaged alternators shows that the regulator may get damaged due to extreme weather conditions with high temperature and high humidity. The regulator may fail in two phases.

Early failure phase:

  • Normal charge when engine is cold.
  • Low charge (10-11 Volts) when charge regulator is hot (after 20-30 minutes driving, with high alternator charging current).
  • Poor or discharged battery, with no start conditions.
  • Charge indicator in DIM only when battery voltage is low.

Late failure phase:

Later the regulator may break down and cease to function, the following conditions may apply:

  • No charging, OR
  • Over charging.
  • Poor or discharged battery, with no start conditions.
  • Vehicle may stop during driving (due to discharged battery).
  • Message in DIM LOW BATTERY VOLTAGE or CHECK EL SYST.
  • One or more DTCs: CEM: 0C01, 0C02, 0C04, 0C05. ECM: 801D, 91E0. ABS: 0074, 0077
  • Charge indicator in DIM when DTC is set.

PRODUCTION

A new type of regulator 8637851 was introduced in production from M/Y 2003.

SERVICE

The new regulator (p/n 8637851) also fits the older alternators that previously used the regulator (p/n 9459741). This regulator can be used on all S60, S80, V70, XC70.

NOTE: VADIS does not show regulators and other spare parts for certain models, it only shows a complete alternator. VADIS (VIDA) will soon be corrected with spare parts such as regulator, free wheel pulley etc.

Replace the regulator, refer to VADIS for methods.

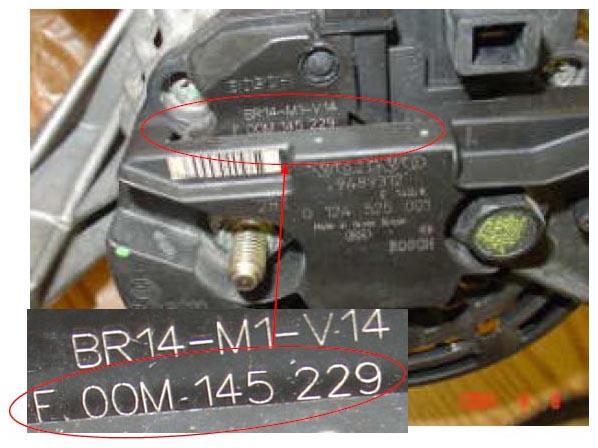

The old regulator (P/N 9459741) can be identified by the Suppler P/N F00M 145 229 (See picture) And the new regulator (P/N 8637851) by the Supplier P/N F00M 145 279

G07642937

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION

LABOR OP LABOR DESCRIPTION LABOR TIME
32205-2 Charging regulator replace S60/V70/ non-turbo 1.5 hr
S60 turbo 1.8 hr
V70/XC70 turbo 1.9 hr
S80 non-turbo 0.5 hr
S80 turbo 1.1 hr
Claims may be submitted under the New Car warranty when there is a documented customer complaint using claim type: 01
