Publication date: 2011-07-07Reference number: RTJ 23940
VOLVO SERVICE FOR LIFE: COMPLIMENTARY SW UPDATES
TECHNICAL SERVICE BULLETIN
Reference Number(s): RTJ23940, Date of Issue:
July 07, 2011
| VOLVO: | 2000-2006 S80; 2001-2009 S60; 2001-2010 V70; 2003-2013 XC90; 2004-2011 S40; 2005-2011 V50; 2006-2013 C70; 2007-2013 XC70, S80; 2008-2013 C30, XC70; 2010-2013 XC60; 2011-2013 S60 |
| Reference: | US23940.1.5 en-US |
| Related Ref. Number(s): | US23940.1.5 en-US |
ATTACHMENT
ATTACHMENT DESCRIPTION
| File Name | File Size |
|---|---|
| P1 Customer Settings blank.pdf | 0.0143 MB |
| P2 Customer Settings blank.pdf | 0.0101 MB |
| XC90 Customer Settings blank.pdf | 0.0163 MB |
| P3 Non Sensus Customer Settings blank.pdf | 0.0178 MB |
| P3 Sensus Customer Settings blank.pdf | 0.0173 MB |
| Configuring_number_of_seats.PNG | 0.0458 MB |
VEHICLE TYPE
VEHICLE TYPE INFORMATION
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2007 - 9999 | - | 0 - 0 | |||||||
| 134 | 2011 - 9999 | - | 0 - 0 | |||||||
| 135 | 2008 - 9999 | - | 0 - 0 | |||||||
| 136 | 2008 - 9999 | - | 0 - 0 | |||||||
| 156 | 2010 - 9999 | - | 0 - 0 | |||||||
| 184 | 2000 - 2006 | - | 0 - 0 | |||||||
| 275 | 2003 - 9999 | - | 0 - 0 | |||||||
| 285 | 2001 - 2007 | - | 0 - 0 | |||||||
| 295 | 2001 - 2007 | - | 0 - 0 | |||||||
| 384 | 2001 - 2009 | - | 0 - 0 | |||||||
| 533 | 2008 - 9999 | - | 0 - 0 | |||||||
| 542 | 2006 - 9999 | - | 0 - 0 | |||||||
| 544 | 2004 - 9999 | - | 0 - 0 | |||||||
| 545 | 2005 - 9999 | - | 0 - 0 |
CSC
Customer Symptom Codes
CODE DESCRIPTION - CSC
| Code | Description |
|---|---|
| 2V | Technician information/Software/Vehicle communication/Not for warranty use |
DTC
Diagnostic Trouble Codes
Text
This document is updated with an additional note regarding SRS DTCs in 5 seater XC90 vehicles.
CSC = Customer Symptom Code
SRS = Supplemental Restraint System
When using a printed copy of this document, always check for the latest online version.
DESCRIPTION
Volvo Cars of North America is now offering complimentary software updates on the vehicles listed in the header when performing service. The offer includes the following:
- The software for the listed nodes will be updated according to latest status in the database.
- The nodes that may be updated include but are not limited to:
DIM (Drivers information Module)
CEM Central Electronics module)
TCM (automatic transmission)
ECM (engine Control Module)
CCM (climate control module)
ICM (Infotainment Control Module)*
ETM (electronic Throttle Module) P2X only
REM (Rear Electronic Module) P2X only
NOTE:
- * The ICM will NOT be upgraded on XC60 and the all new S60.
- Not all nodes on the CAN network will be updated
SOFTWARE PART NUMBERS
SOFTWARE PART NUMBERS INFORMATION
| Platform | MCSP name | *MCSP |
|---|---|---|
| P1X S40 (2004.5 -) V50 (05-) C70 (06-) C30 |
Service Update CAN | 8691431 |
| P2X XC90 S80 (-06) XC70, V70 (01-07) S60 (01-09) |
Service Update CAN | 8691414 |
| P3X S80 (07-) XC70 (08-) V70 (08-) |
Service Update CAN | 30775481 |
| XC60 All new S60 (11-) |
Service Update CAN | 31295476 |
*MCSP = Main Combined Software Product
Please observe!
- Non-Volvo SW such as engine management SW provided by the aftermarket will be overwritten when updating.
- Certain customer specified settings will be reset back to default values after a SWDL. These settings include:
- Personal settings contained in the ICM (infotainment control module) menu. -settings accomplished via VIDA: diagnostics / vehicle communication / node xxx / advanced. These settings are referred to as "block offsets"
- Seat and mirror memory positions and the clock.
SERVICE
At every service opportunity and with the customer's permission download the appropriate Software Product in the above chart.
The procedure shall be as follows:

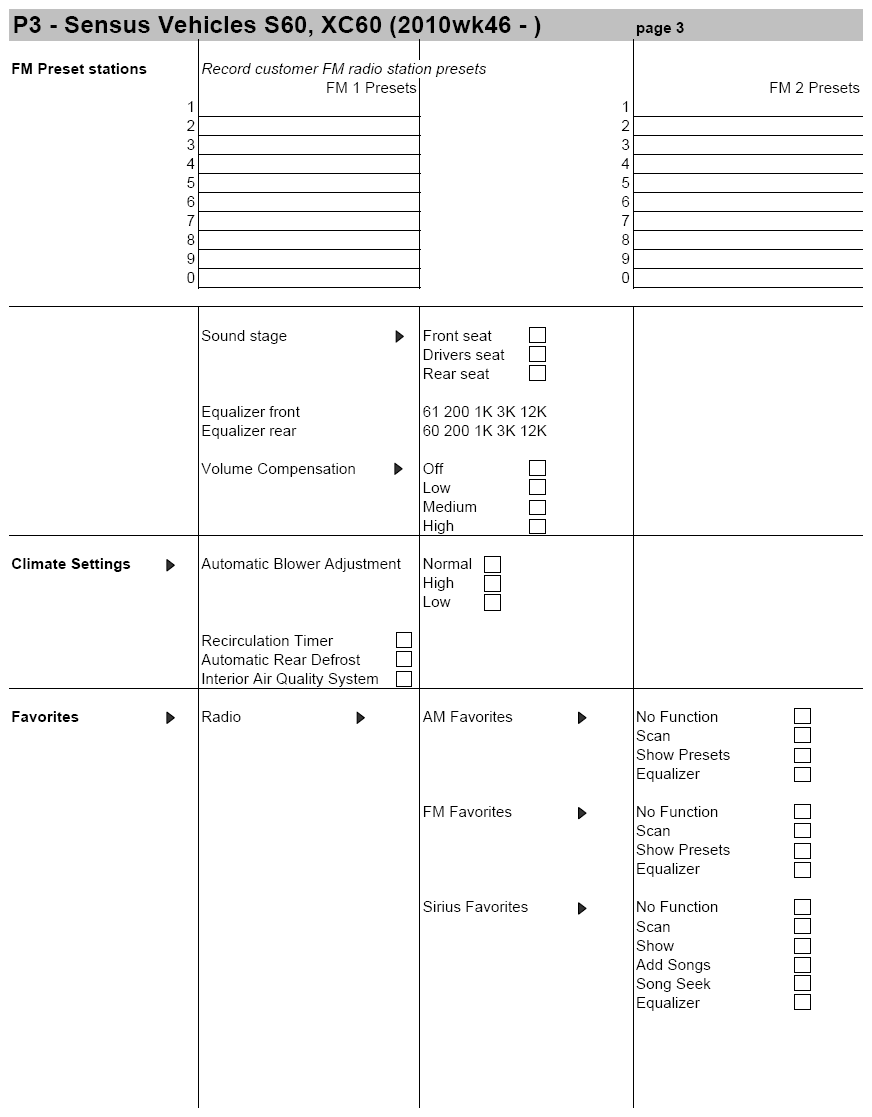

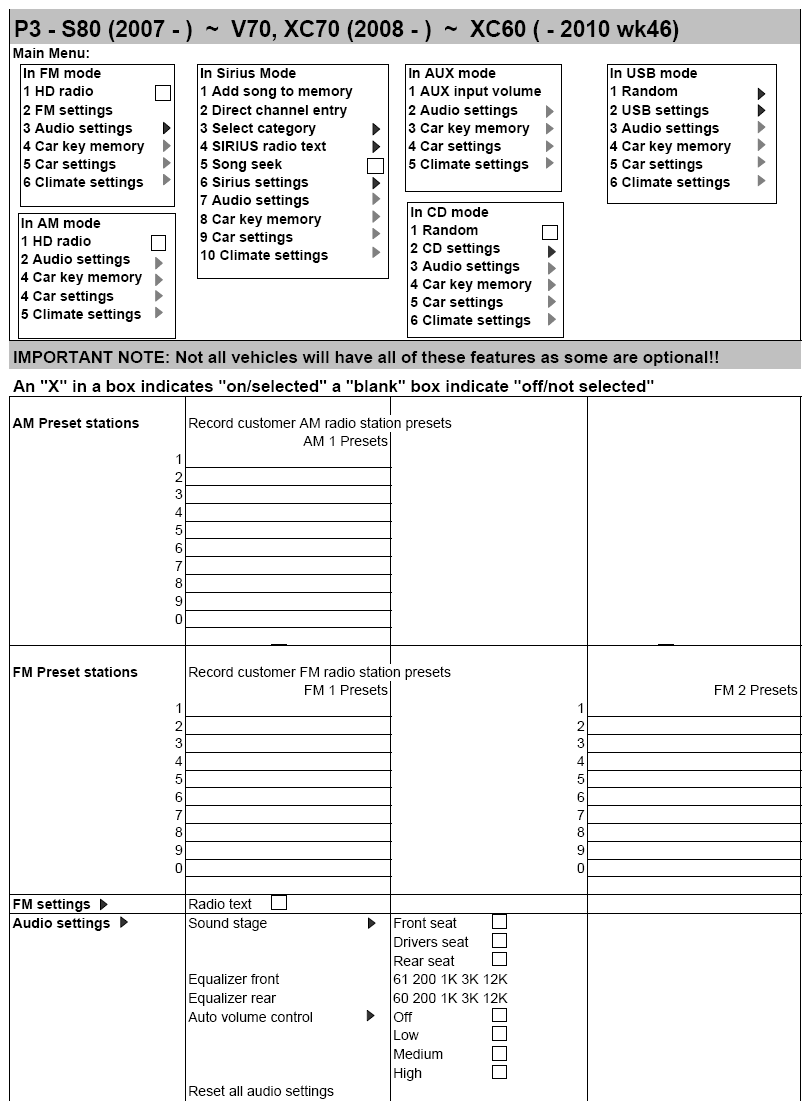

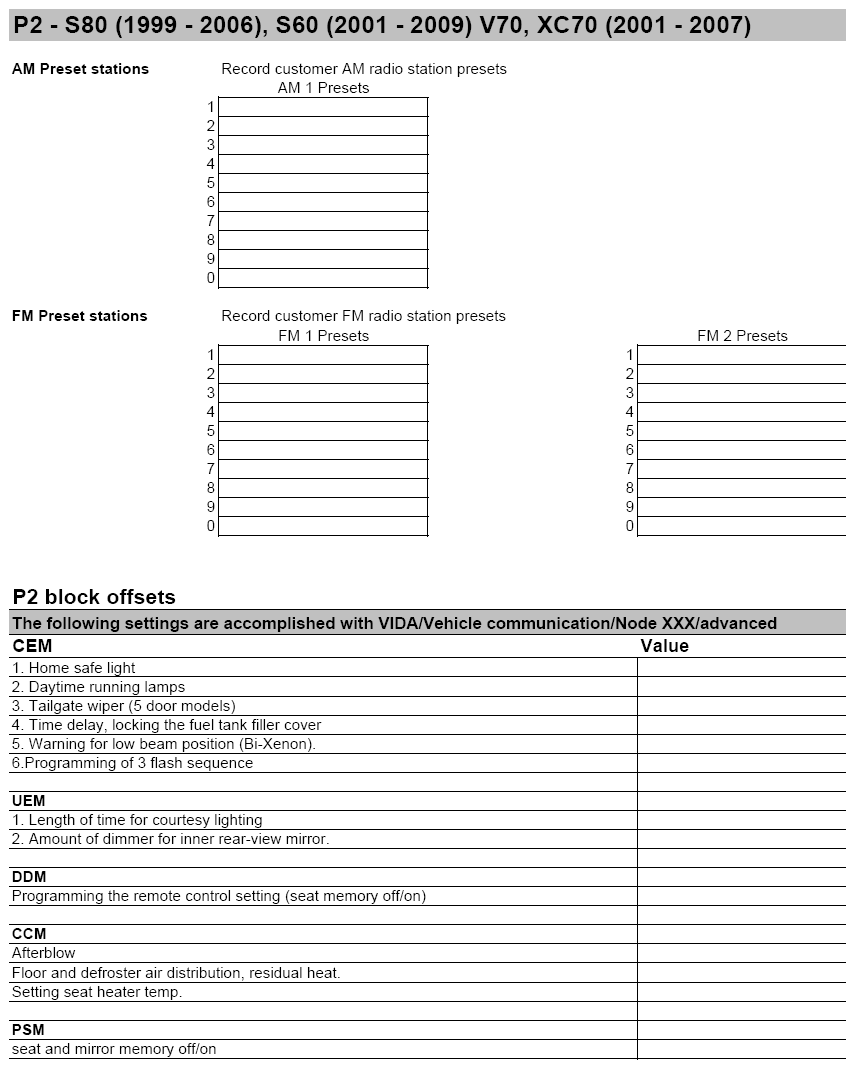

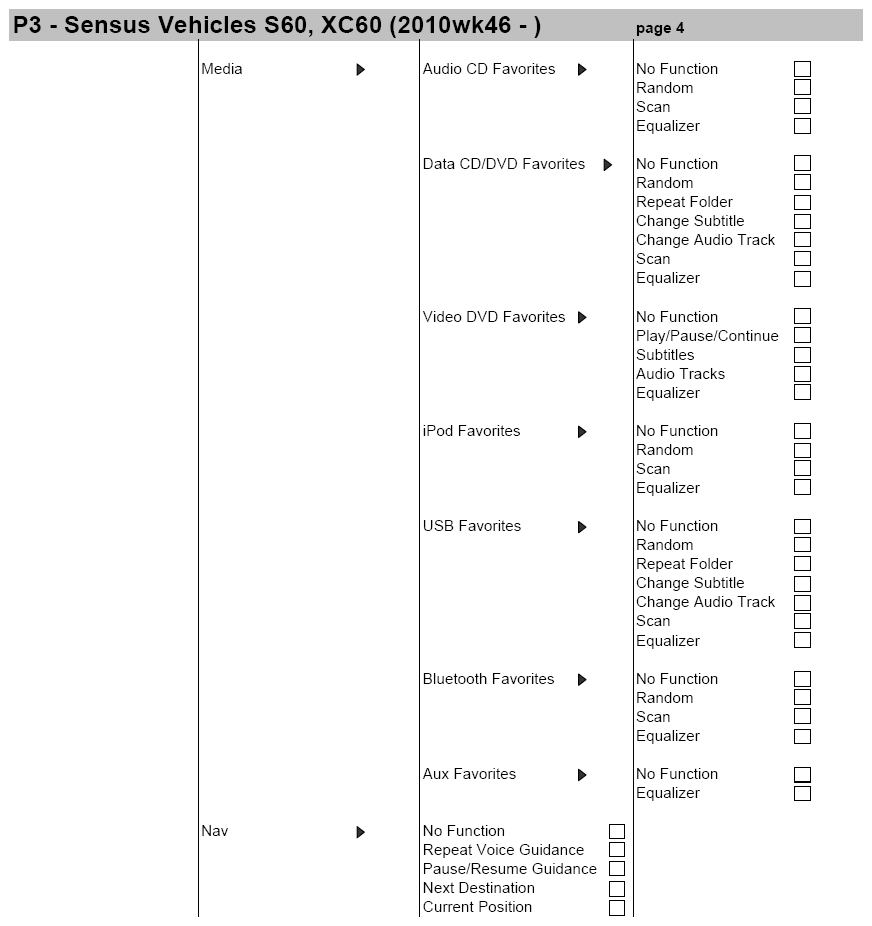

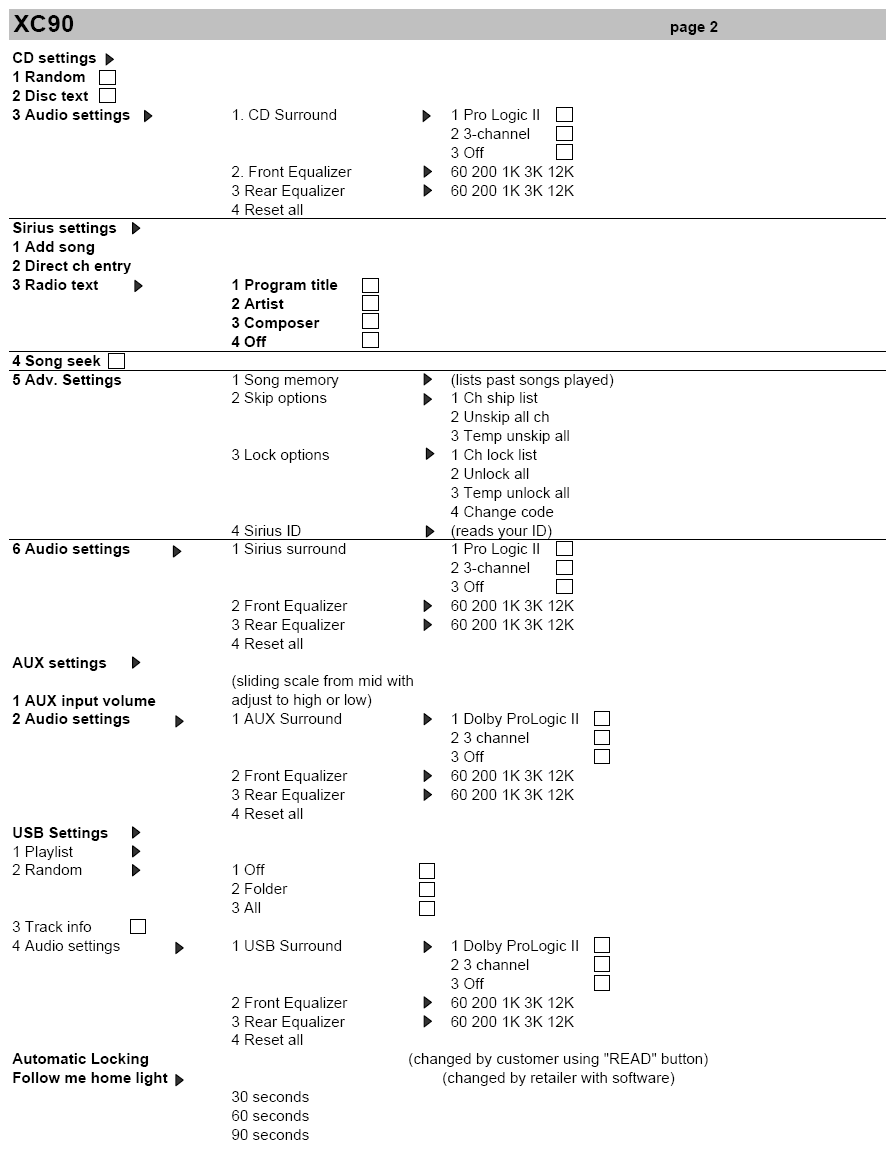

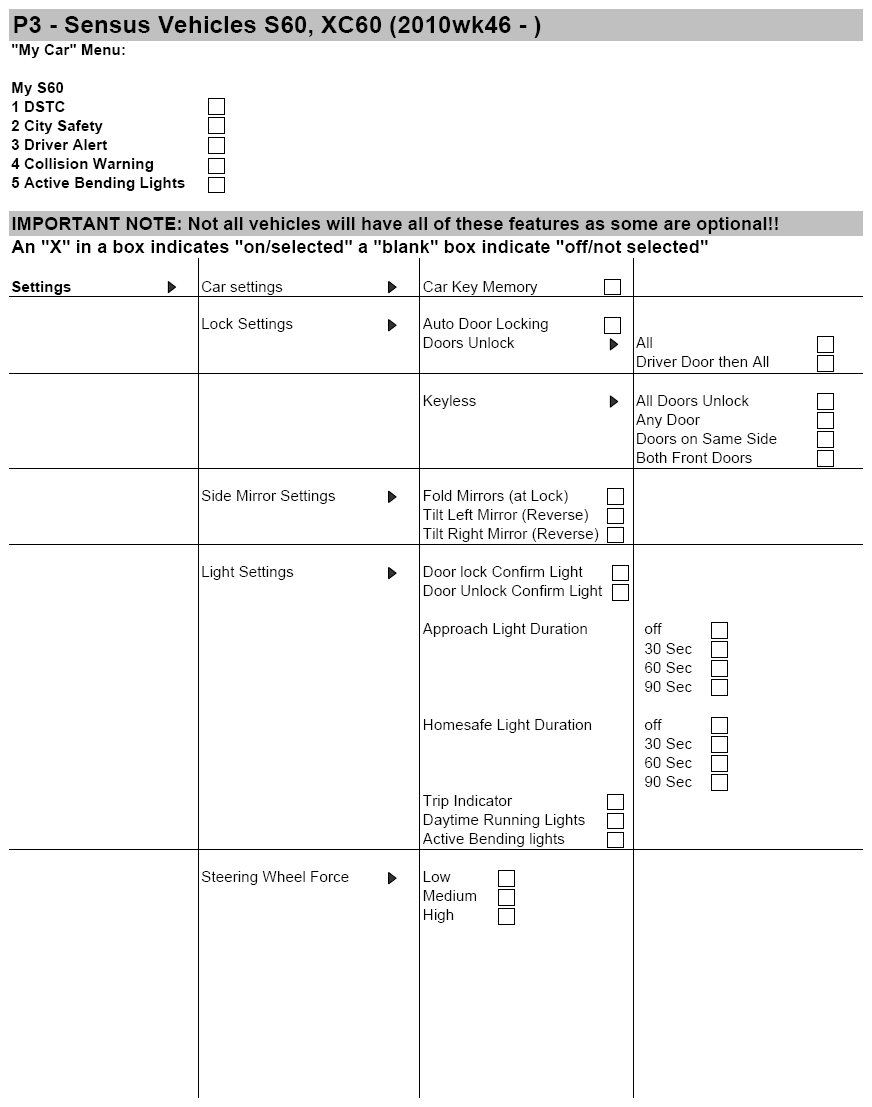

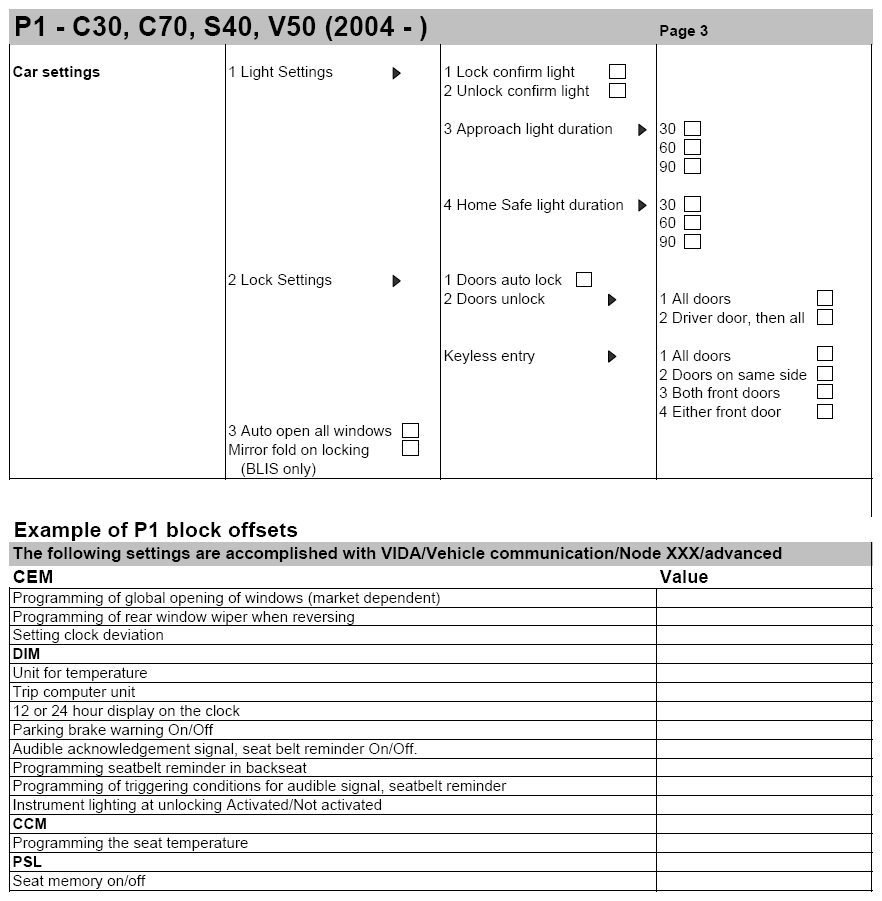

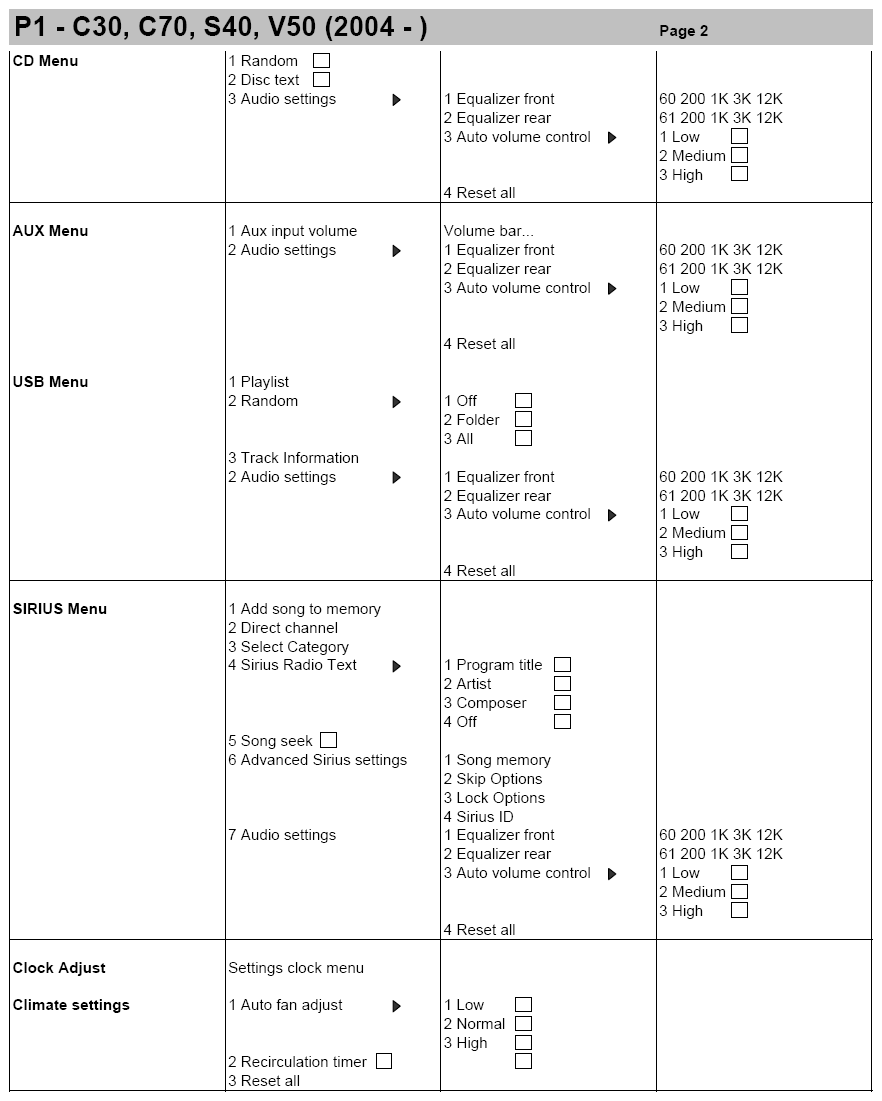

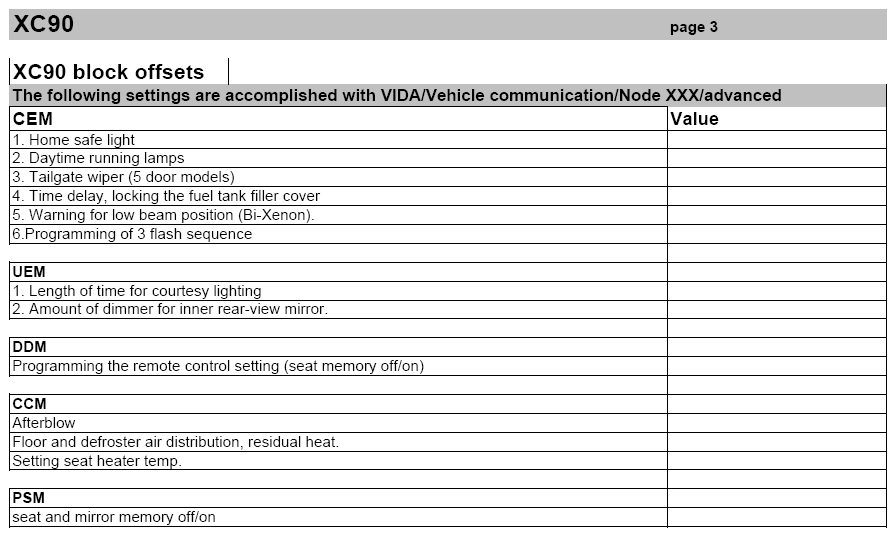

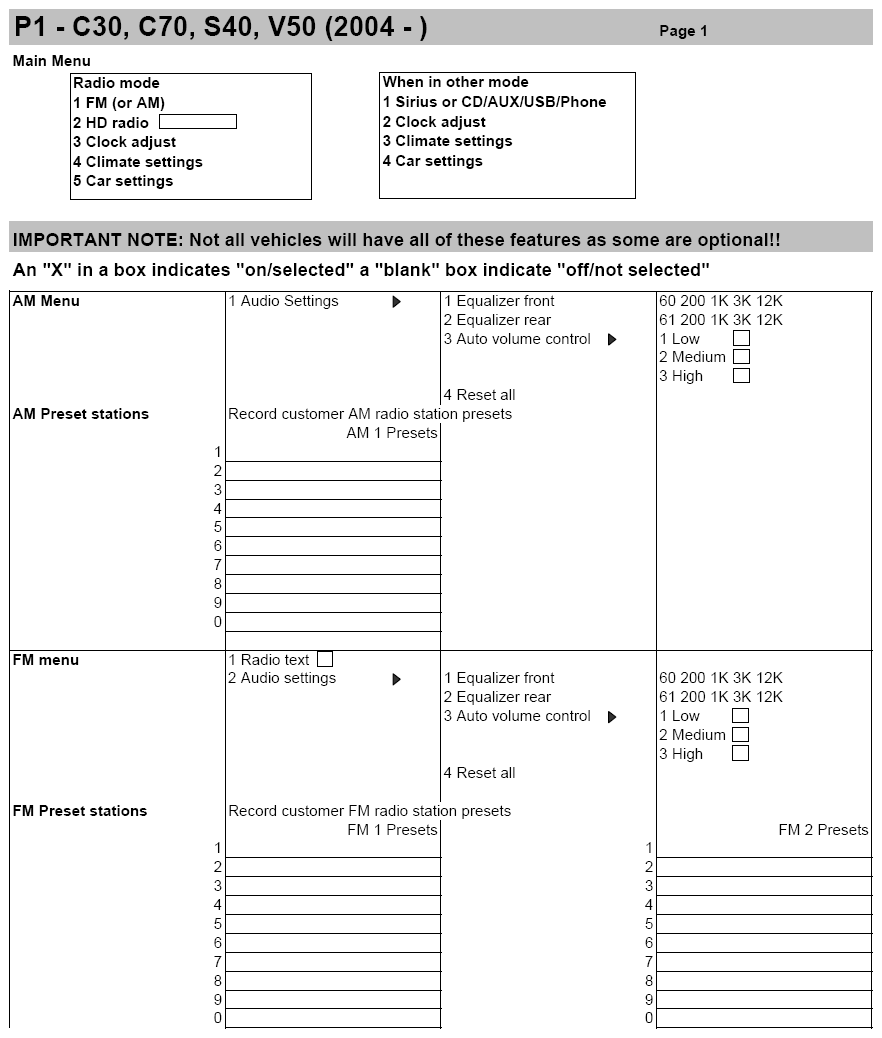

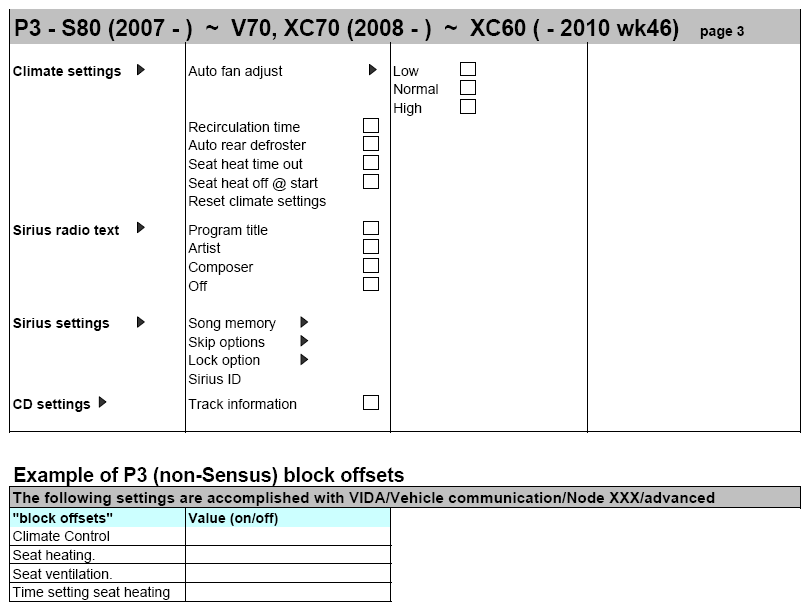

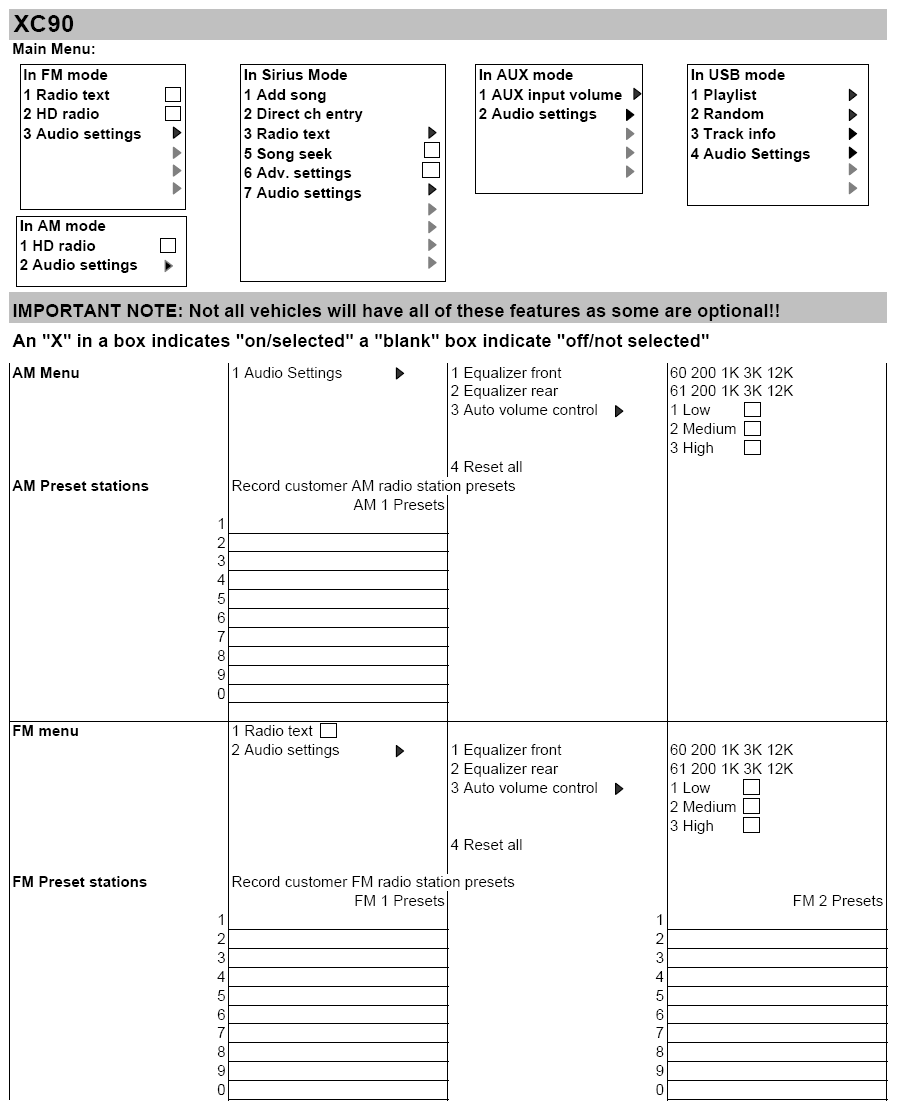

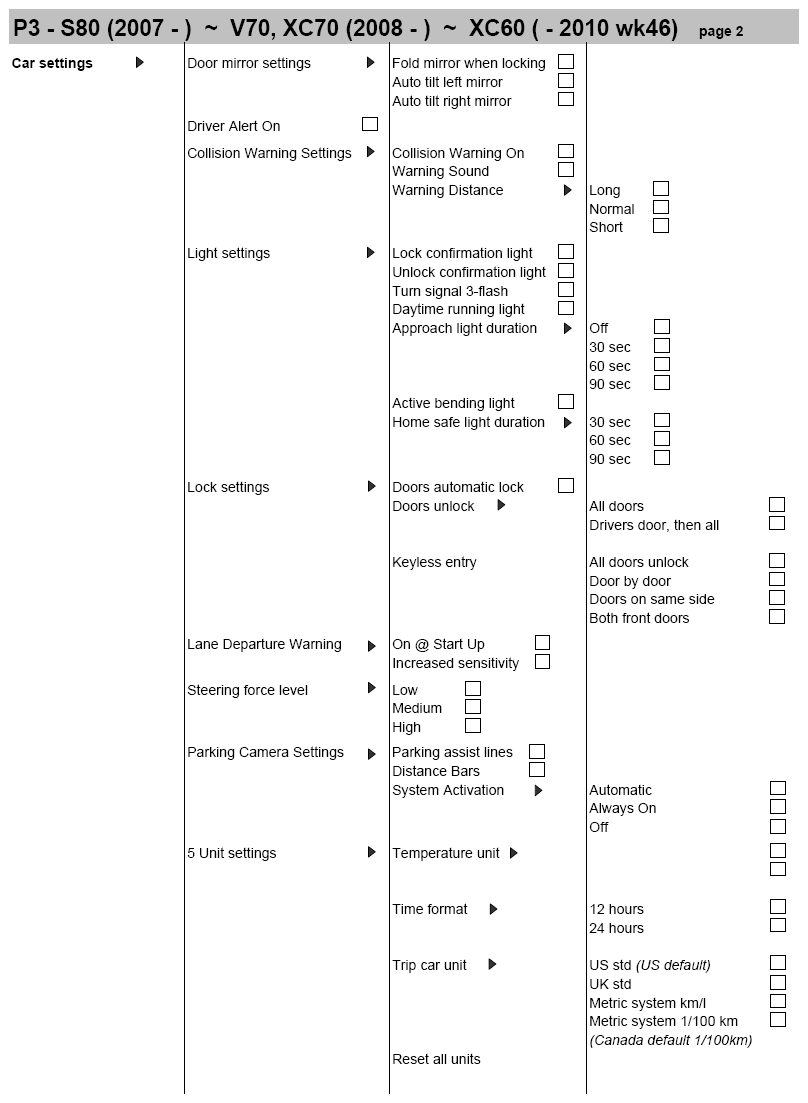

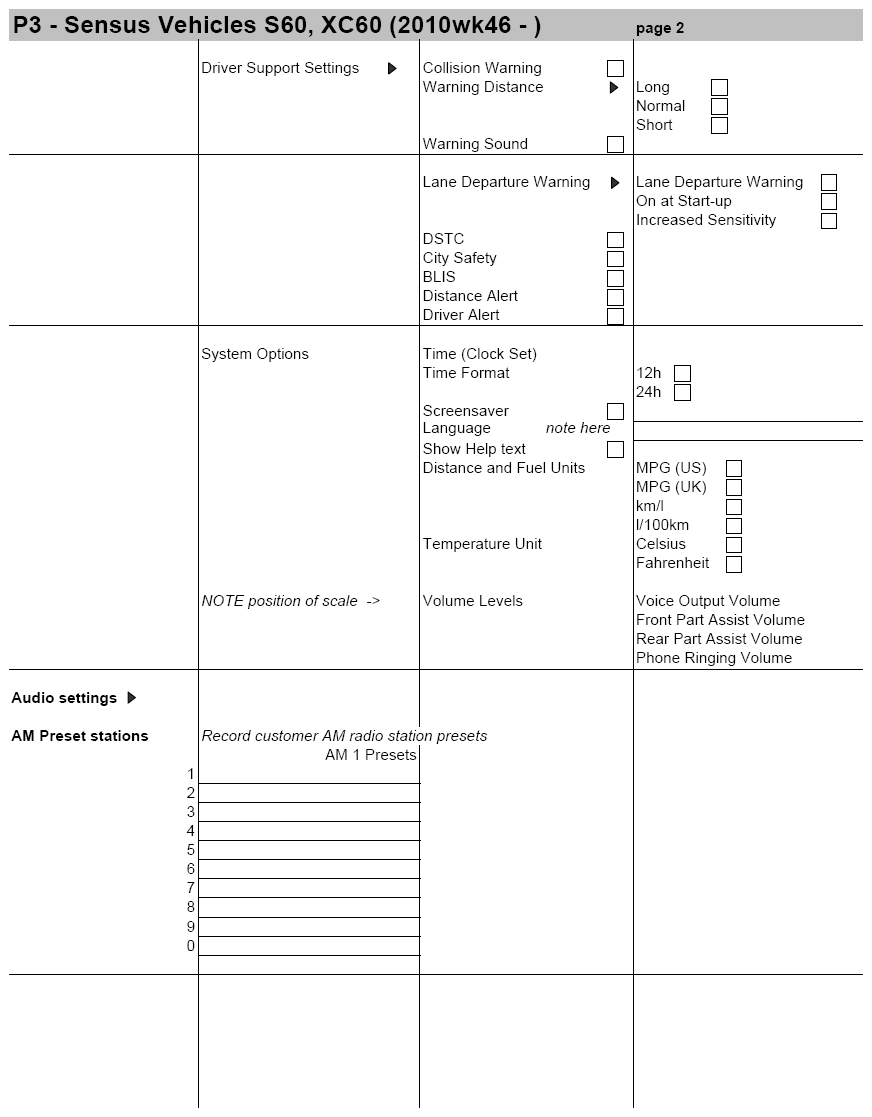

- Read out and record the customer settings and block offset values. A checklist for each platform type has been provided in the attachments..
- Download the appropriate Software Product in the above chart.
- Restore the customer settings and block offset values read out in step 1 above.
- Perform any initializations as normally required after a SWDL such as windows, sunroof, etc... VIDA will typically provide a "pop up" message when these are required.
- Reset the Clock and the customer's radio presets as necessary. NOTE:
- Some 5 seater XC90 vehicles may have DTCs present in the SRS control unit after the above procedure. To correct this, configure the 'number of seats' using the Diagnostics->Vehicle Communication->SRS->Advanced tab in VIDA (example attached).
- The software products listed above are not eligible for warranty use unless specifically stated elsewhere.
- The software products listed above are not to be used to perform a repair, or in conjunction with a component replacement or as a substitute for a "reload" unless specifically stated elsewhere.
- The software products above are only available to authorized Volvo retailers.
- The above software products should not be loaded within a week of a planned or needed state vehicle inspection as they may reset the readiness flags in the ECM.
