Removing Switch Key Reminder

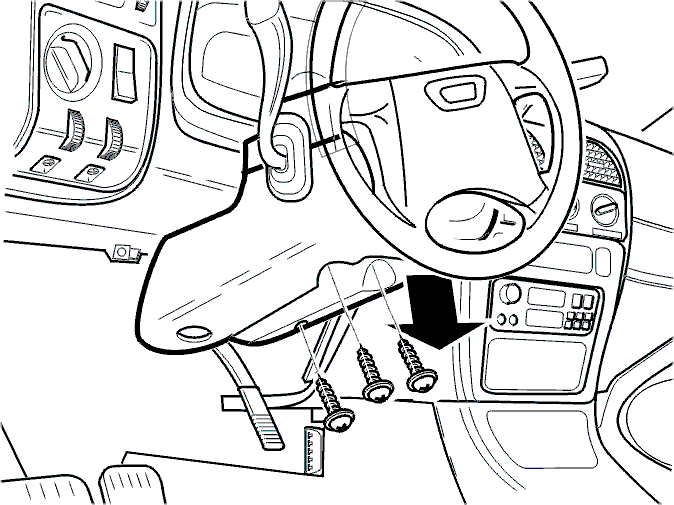

Fig 1: Lower Steering Column Panel Screws

GLL115444

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel under the dashboard on the drivers side
Disconnect the courtesy lighting wiring
Remove the screws (3x)
Carefully remove the two steering covers.

Fig 2: Identifying Screws

GLL115230

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn ignition to position 0
Remove the three steering wheel connectors
Remove the switch connector from the locking
Remove two screws and take the switch from the steering column.
