Air Cleaner Housing - Removal And Installation
›
Engine
›
Remove upper engine stabilizer brace
Remove upper engine stabilizer brace

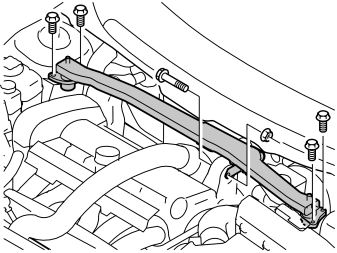

Fig 1: Identifying Engine Stabilizer Brace And Mounting Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the mounting screws for the torque rod
the screw and nut for the engine mounting and torque rod
the screw for the oil hose clamp
the engine stabilizer brace.
