Unplugging the connectors

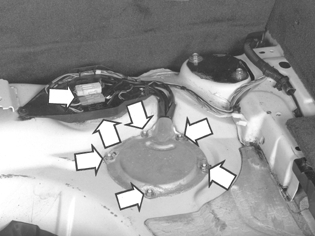

Fig 1: Identifying Front Cover And Connectors For ABS Sensor And Fuel Level Sensor
GLL109162Courtesy of VOLVO CARS OF NORTH AMERICA.

Undo the ABS sensor and fuel level sensor connectors.

Remove the connectors' holder and the front cover.

Feed the leads through the hole.
