Valve Clearance, Setting/Adjusting: Check

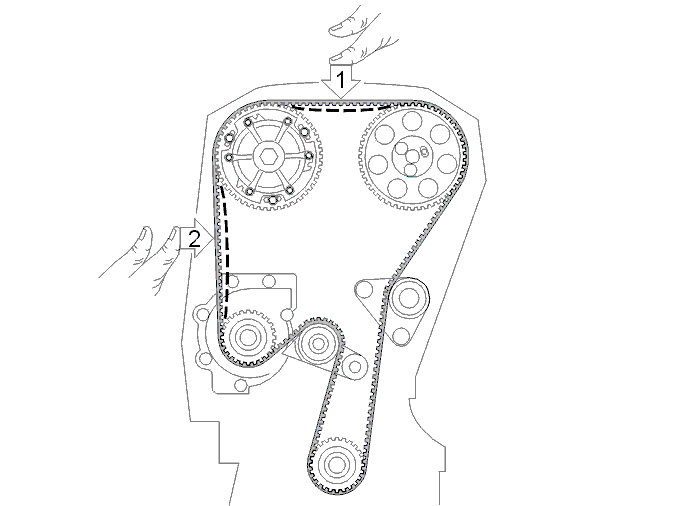

Fig 1: Checking Indicator On Tensioner Moves Easily

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the belt to check that the indicator on the tensioner moves easily
• Position the upper timing cover.

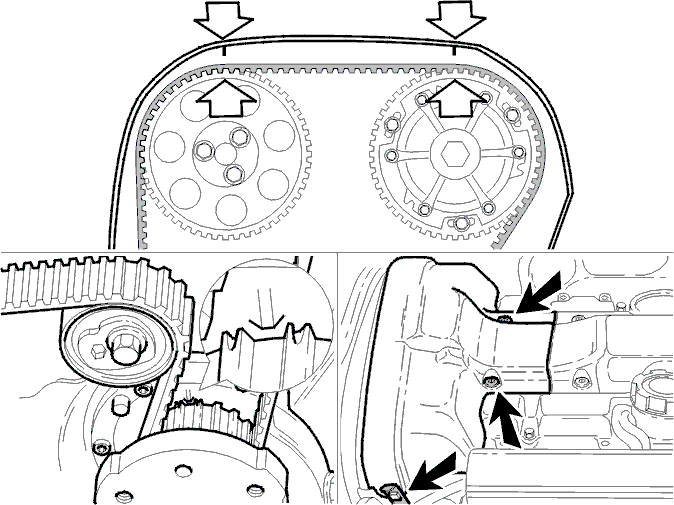

Fig 2: Positioning Engine According To Marking

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Turn the crankshaft two turns. Check that the markings on the crankshaft and camshaft pulley correspond.
  NOTE: Check that the indicator on the belt tensioner is within the marked area.
• Remove the upper timing cover.
