Installing components

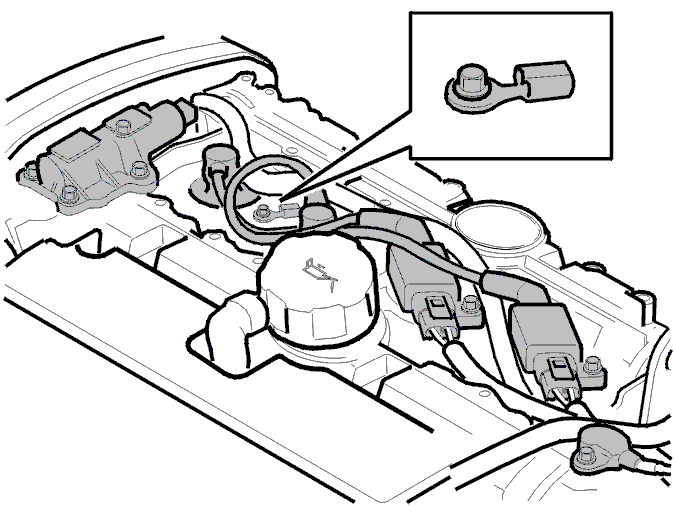

Fig 1: Exposing Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the ignition coils and ignition cables according to the earlier markings
• the connectors on the variable valve timing valve and ignition coils
• the ground lead for the ignition coils
• the camshaft position (CMP) sensor.

Place the cable duct and cable harness in position.

Install:

• the screws for the cable duct on the rear edge of the cylinder head and throttle body (TB) bracket
• the connectors for the injectors
• the connector for the engine coolant temperature sensor
• the inlet hose between the mass air flow (MAF) sensor and throttle body (TB)
• front timing cover
• the cover over the ignition coils
• the upper timing cover
• the cover over the throttle body (TB)
• the cover over the injectors.
