Installing engine compartment components

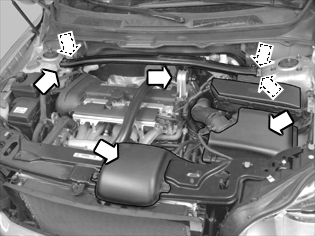

Fig 1: View Of Underhood Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the air cleaner (ACL) housing assembly with the intake manifold and connections
• hook the turbocharger (TC) control valve into place in the air cleaner (ACL)
• the upper engine stabilizer brace between the wheel arches. Use 4 x M10 screws. Tighten
• 1 x M12 screw for the engine stabilizer brace/engine mounting. Tighten
• the tie strap for the power steering return line in the mounting lug for the engine stabilizer brace on the right-hand side.

Fill with coolant. Carefully check while reaching operating temperature or test driving that the level remains the same and that there is no leakage.

Also see Transmission replacement, post-checking .
