Climate Control Unit
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

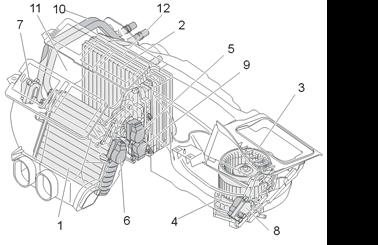

- Heat exchanger
- Evaporator
- Fan motor
- Power unit
- Damper motor module (DMM) air distribution
- Damper motor module (DMM) temperature right
- Damper motor module (DMM) temperature left
- Damper motor module (DMM) recirculation
- Damper motor module (DMM) defroster
- Coolant pipe terminal; to and from the engine compartment
- Temperature sensor, evaporator (left-hand drive cars)
- Temperature sensor, evaporator (right-hand drive cars).
