Damper Motor, Recirculation, Replacing: Recirculation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

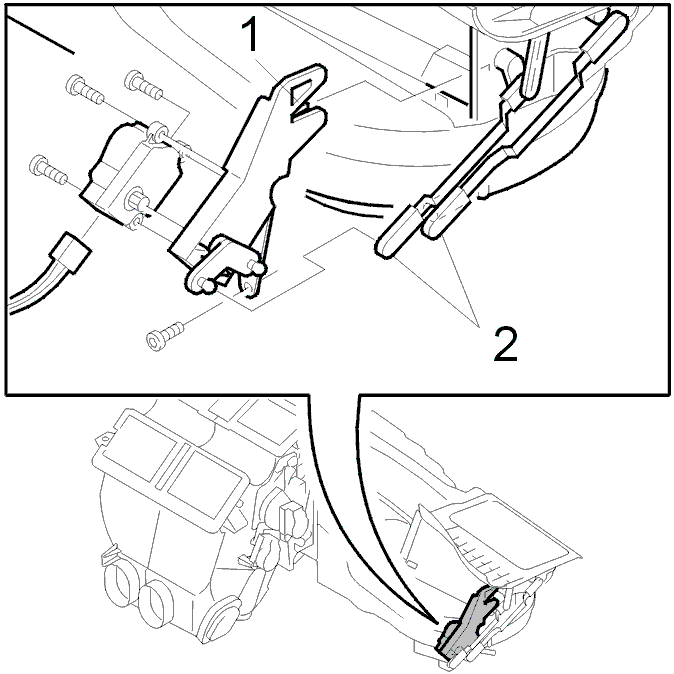

Fig 1: Bracket From Mounting And Lever From Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the motor on the bracket
Place the bracket and motor in position
Press the upper mounting into place
Install the screw for the bracket
Place the arms from the heater unit onto the motor levers and press into place. Take care not to damage the arms
Install the switch
Install the glove compartment. See Glove Compartment, Replacing
Carry out self-adjustment of the damper motor end positions. This is carried out via VIDA communication.
